Specifications
Raw material :
SUS304
waterproof :
IP66
Product name :
Food Metal Detector
conveyor load :
25kg(customized)
control panel :
LCD display screen
Display :
LCD Digital Display/Touch screen
type :
Magnetic metal detector
Model Number :
JZD-366
certification approval :
CE,ISO9001,HACCP
Usage :
Security Inspection
Certification :
CE,ISO9001
MOQ :
1
customized support :
OEM, ODM, OBM
alarm :
audible and visual alarm ,automatic stop
conveyor speed :
22m/minute(variable speed,adjustable)
Place of Origin :
Guangdong, China
warranty :
3 Years
Brand Name :
JUZHUO
Description
OEM Metal Detector for Dry Milk Powder/Needle Detector Machine JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It employs advanced electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions to ensure stable and dependable detection capacity with improved detecting effect.

Applications

Model JZD-366 digital metal detector is primarily used for checking metal impurities mixed or dropped in bakery products, pizza, hamburger, puree, sauce, vegetable tobaccos, and other applications requiring metal detection. It can operate in various challenging work environments including high temperature, low temperature, damp, dry, dust, dew, and other poor conditions.

Main Features
  • LCD display screen control panel with English and Chinese language support
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 different product types with detection parameters for easy operation when switching between different product applications
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certification
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference and shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specification
Model JZD-366
Width of Inspection Window (mm) 400 (customization available)
Height of Inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm, automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size)
Net Gross Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz (Power) 90W
Conveyor Speed 25-30m/min (can be designed according to customer requirements)
Conveyor Height 650mm±50mm (normal) can be manufactured according to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity has relation with the nature and temperature of the products, etc. Auto-rejection equipment can be installed according to customer requirements.

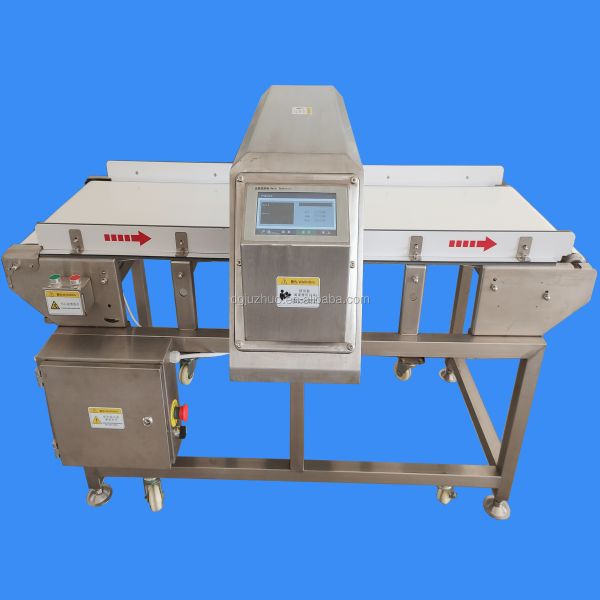

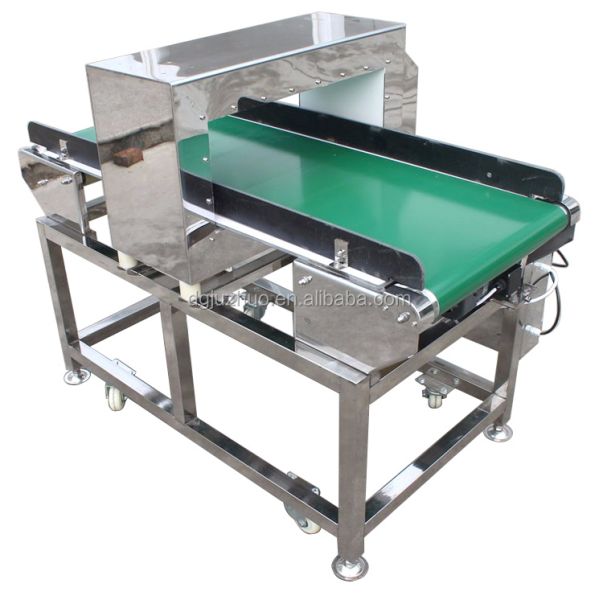

Product Images
