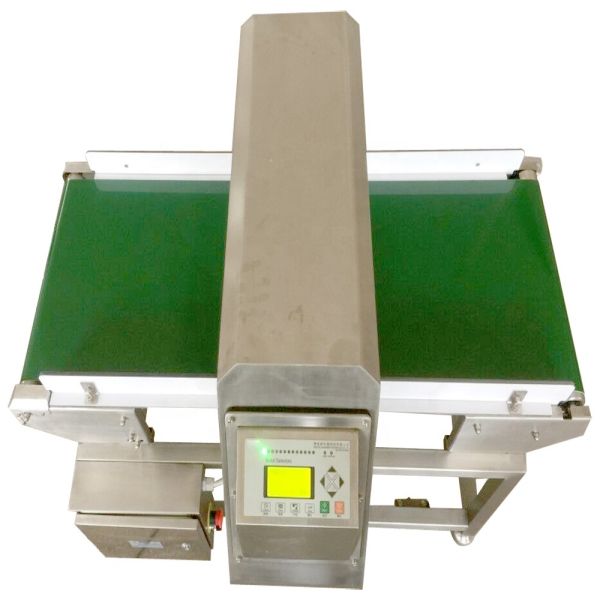

Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
Specifications
Place of Origin :
Guangdong, China
conveyor speed :
22m/minutes(variable speed, adjustable)
type :
New
customized support :
OEM
Model Number :
JZD-366
Brand Name :
JUZHUO
Raw material :
SUS304
warranty :
2
control panel :
touch screen
MOQ :
1
alarm :
audible and visual alarm ,automatic stop
conveyor load :
25kg(customized)
Description
JZD-366 Food Metal Detector for Food Processing Industry
Product Overview

The JZD-366 is an intelligent LCD display digital metal detector featuring advanced two-way signal detection circuit technology. It utilizes cutting-edge electromagnetic detection and digital signal processing with DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware, combined with advanced detecting algorithms for superior performance.

Applications

Designed for detecting metal impurities in various food products including seafood, frozen food, fish, noodles, bakery items, and other applications requiring metal detection. Suitable for challenging work environments including high/low temperature, humidity, dry conditions, dust, and dew.

Key Features
  • LCD display control panel with English and Chinese language options
  • Detects impurities in products packaged with evaporating aluminum
  • Stores up to 100 different product detection parameters
  • Automatic identification learning function for efficient product effect compensation
  • German dual-channel detection technology with rectangular aperture
  • ADLINE microprocessor controller system
  • Compliant with IFS standards and certified HACCP, CE & ISO 9001
  • Strong suppression for product effect in aquatic, frozen & pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easy disassembly and convenient cleaning design
Technical Specifications
Parameter Specifications
Model JZD-366
Inspection Window Width 400mm (400mm customization available)
Inspection Height Options 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity - Fe (Φmm) ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Alarm System Audible and visual alarm with automatic stop
Construction Material SUS304 Stainless Steel
Machine Dimensions 160cm (L) × 90cm (W) × 100cm (H) - standard size
Net Weight 330kg (standard size)
Power Supply 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable to customer requirements)
Conveyor Height 650mm ±50mm (standard), customizable to customer needs
Note: Sensitivity specifications are based on testing without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
