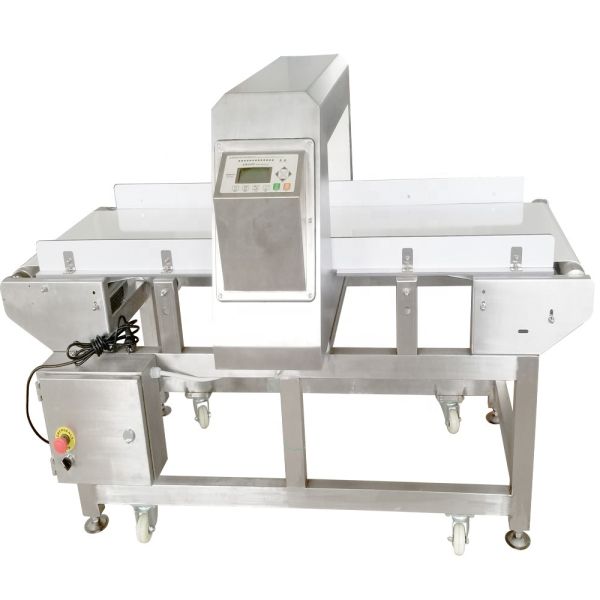

Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
Specifications
customized support :
OEM
certification approval :
ISO9001,HACCP
type :
New
voltage :
110V/220V/380V
warranty :
2
conveyor speed :
18m/minutes(adjustable)
Place of Origin :
Guangdong, China
waterproof :
IP66
Raw material :
SUS304
Model Number :
JZD-366
belt material :
PU
alarm :
audible and visual alarm ,automatic stop
MOQ :
1
Description
2025 Super Popular Direct Sale Food Production Line Metal Detectors JZD-366
Product Overview

The JZD-366 is an advanced LCD display intelligent digital metal detector featuring two-way signal detection circuit technology. It employs cutting-edge electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions to ensure stable and dependable detection capacity with improved detection effectiveness.

Applications

The JZD-366 digital metal detector is primarily used for checking metal impurities in bakery products, pizza, hamburgers, puree, sauce, vegetable tobaccos, and other applications requiring metal detection. It is suitable for various challenging work environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.

Main Features
  • LCD display screen control panel with English and Chinese language options
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Can record up to 100 different product parameters for easy operation when switching between different product applications
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head utilizes dual channel detecting circle technology from Germany with rectangular aperture (indivisible)
  • ADLINE microprocessor controller system
  • Conforms to IFS standards with HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effects in aquatic food products, frozen foods & pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easy disassembly and convenient cleaning
Technical Parameters
Parameter Specifications
Model JZD-366
Inspection Window Width (mm) 400 (customization available)
Inspection Height (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)×90(W)×100(H)cm (based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz (Power: 90W)
Conveyor Speed 25-30m/min (can be designed according to customer requirements)
Conveyor Height 650mm±50mm (normal) - can be manufactured according to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity relates to the nature and temperature of the products. Automatic rejection equipment can be installed according to customer requirements.
Product Images
Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366 Direct Food Production Line Conveyor Metal Detector Equipment System JZD-366
