Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
Specifications
voltage :
110V/220V/380V
Model Number :
JZD-330
customized support :
OEM, ODM, OBM
warranty :
1year
conveyor material :
PU
alarm :
audible and visual alarm ,automatic stop
Place of Origin :
Guangdong, China
Brand Name :
jUZHUO
belt COLOR :
customized
MOQ :
1
conveyor speed :
22m/minutes(adjustable)
Application :
to check metal impurities
waterproof :
IP66
Raw material :
SUS304
type :
New
certification approval :
ISO,9001,HACCP,CE
Description
OEM Metal Detector JZD-366
Product Overview

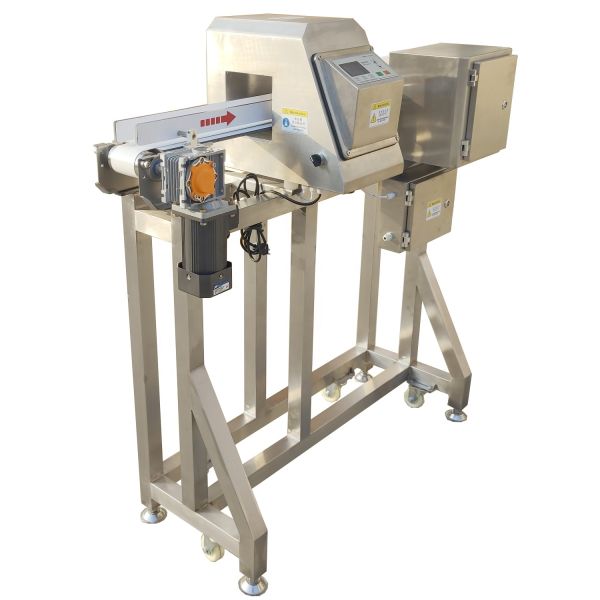

The JZD-366 is an advanced LCD display intelligent digital metal detector featuring two-way signal detection circuit technology. It incorporates cutting-edge electromagnetic detection and digital signal processing technologies, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with sophisticated detection algorithms.

Applications

This digital metal detector is primarily designed for detecting metal impurities in various food products including bakery items, pizza, hamburgers, purees, sauces, vegetables, and tobacco. It is suitable for applications requiring metal detection and performs reliably in challenging environments including high/low temperature, humidity, dryness, dust, and dew conditions.

Key Features
  • LCD display control panel with English and Chinese language support
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Stores up to 100 different product detection parameters for easy product changeover
  • Automatic identification learning function effectively overcomes product material effects
  • Dual-channel detection coil using German detection technology with rectangular aperture
  • ADLINE microprocessor controller system
  • Compliant with IFS standards and certified with HACCP, CE & ISO 9001
  • Strong suppression for product effects in aquatic foods, frozen foods & pickled foods
  • Excellent anti-interference and shock-proof capabilities
  • Easy disassembly and convenient cleaning design
Technical Specifications
Parameter Specification
Model JZD-366
Inspection Window Width 400mm (400mm customization available)
Inspection Height Options 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity - Fe (Φmm) ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Alarm System Audible and visual alarm with automatic stop
Construction Material SUS304 Stainless Steel
Standard Machine Dimensions 160cm (L) × 90cm (W) × 100cm (H)
Net Weight 330kg (standard size)
Power Supply 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable to customer requirements)
Conveyor Height 650mm ±50mm (standard, customizable)
Note: Sensitivity specifications are based on testing without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
Product Gallery
Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366 Digital Metal Detector Processing Equipment Industrial Inspection System JZD-366
