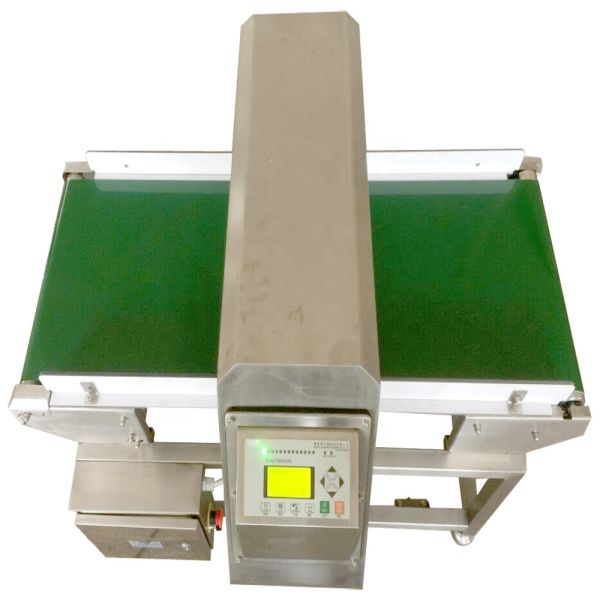

Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
Specifications
customized support :
OEM, ODM, OBM
belt color :
customized
belt material :
PU
Brand Name :
Juzhuo
certification Approval :
CE,ISO9001,HACCP
MOQ :
1
waterproof :
IP66
Model Number :
JZD-366
conveyor loading capacity :
25kg(customized)
Raw material :
SUS304
Place of Origin :
Guangdong, China
type :
New
warranty :
1year
alarm :
audible and visual alarm ,automatic stop
conveyor speed :
22m/minutes(adjustable,variable speed)
Description
2025 Super Popular Favorable Price Food Metal Detector, Food Metal Detector on Conveyor Belt JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent/digital metal detector featuring advanced two-way signal detection circuit technology. It employs cutting-edge electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions to ensure stable and dependable detection capacity with improved detecting effect.

Applications

The JZD-366 digital metal detector is primarily used for checking metal impurities in various food products including bakery items, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It is designed to operate effectively in challenging work environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.

Main Features
  • LCD display screen control panel with English and Chinese language options
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Can record up to 100 different product types with detection parameters for easy product changeover
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head utilizes dual channel detecting circle from German detection technology with rectangular aperture (indivisible)
  • ADLINE microprocessor controller system
  • Conforms to IFS standards with HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easily disassembled and conveniently cleaned design
Technical Parameters
Parameter Specifications
Model JZD-366
Width of Inspection Window (mm) 400 (customization available)
Height of Inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz (Power) 90W
Conveyor Speed 25-30m/min (can be designed according to customer requirements)
Conveyor Height 650mm±50mm (normal) can be manufactured according to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity may vary with product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
Product Images
Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366 Food Conveyor Belt Metal Detector Industrial Inspection Equipment System JZD-366
