Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
Specifications
MOQ :
1
Output capacity :
300KG/HR
Place of Origin :
Guangdong, China
Fuse rating :
2pcs 315ma
Working temperature :
-10/60Degree
Air compression :
2.5KG, 8mmm soft tube connect
Control components :
MEIDELE electromagnetic valve, SMC air cylinder
Waterproof level :
IP66
Input current :
80/160ma
Machine composition :
Metal detection and rejection sections
Brand Name :
JUZHUO
Air consumption :
0.4leter per rejection action
Material :
SUS304 stainless steel
Rejection time :
0.2-2.5Second
Working voltage :
220V (+/-10%), 50/60HZ
Model Number :
JZD-60-40
Detection sensitivity :
Fe:0.5mm, SUS:1mm
Input tube :
35mm
Description
Hot Sale Tablet Pill Metal Detector JZD-60-40
Tablet pill metal detector as per your Red Circle parts JZD-60-40, designed for reliable metal contamination detection in pharmaceutical and industrial applications.
Application
Mainly used for detecting metal impurities in drugs, ferrous metals, non-ferrous metals, copper, aluminum, and similar materials.
Technical Parameters
Control System Parameters
  • Control part: MEIDELE
  • Electromagnetic valve: Standard
  • Air cylinder: SMC
  • Air cylinder filter: SMC
  • Machine material: Full stainless steel
  • Working voltage: 220V AC (+/-10%), 50/60Hz
  • Input current: 80/160mA
  • Fuse: 2 pieces 315mA
  • Working environment: -10°C to 60°C
  • Waterproof standard: IP65
  • Input connector: Testing button, Hand separator, Reset
  • Output connector: Metal detector
Machine Parameters
  • Air compression: 2.5KG, 8mm soft tube connection
  • Air consumption: 0.4 liter per rejection action
  • Rejection time: 0.2-2.5 seconds
Sensitivity Specifications
Input Tube Output Detection Sensitivity (Fe/SUS)
35MM 300KG/HR Fe: 0.5mm, SUS: 1mm
Working Principle

Composition: This metal detector consists of metal detection and rejection sections. Both sections are controlled by the control box.

Principle: The metal detector generates a high-frequency magnetic field. When metals pass through the sensor, they influence the magnetic field, triggering a signal to the rejection device.

Important Notes
While this machine provides optimal metal separation solutions, metals may not be detected in the following cases:
  • When detected drugs have massive particles smaller than standard metal detection thresholds
  • When multiple metals are detected simultaneously and the rejection device is not turned off

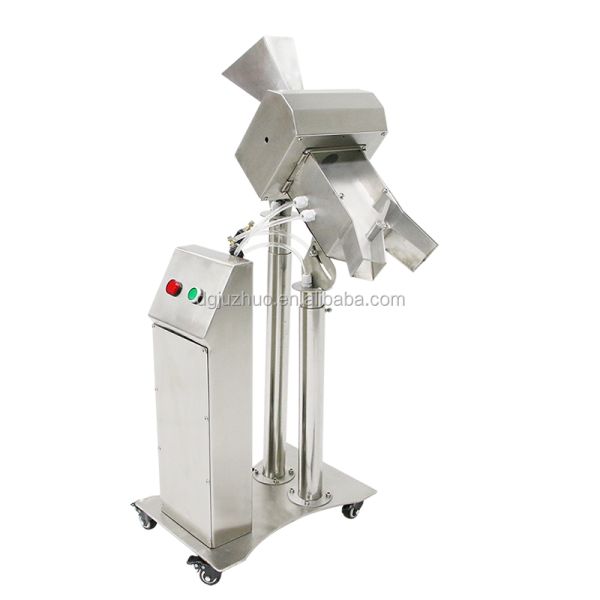

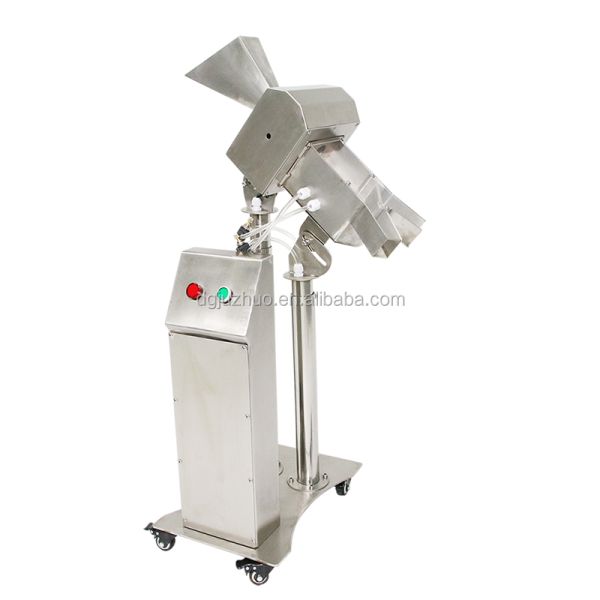

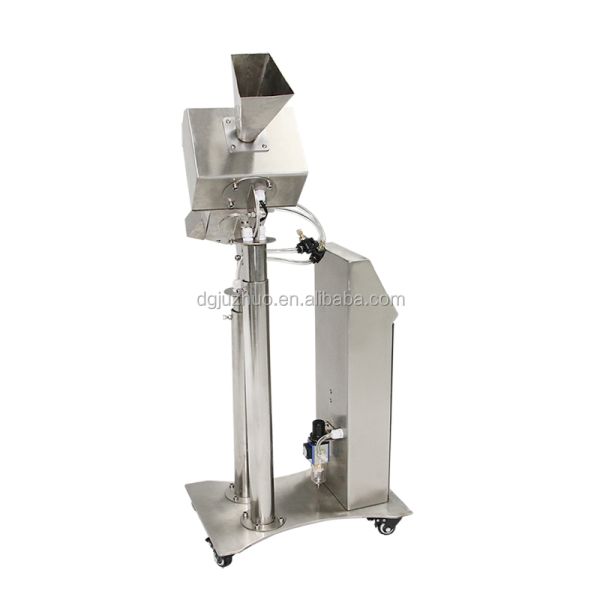

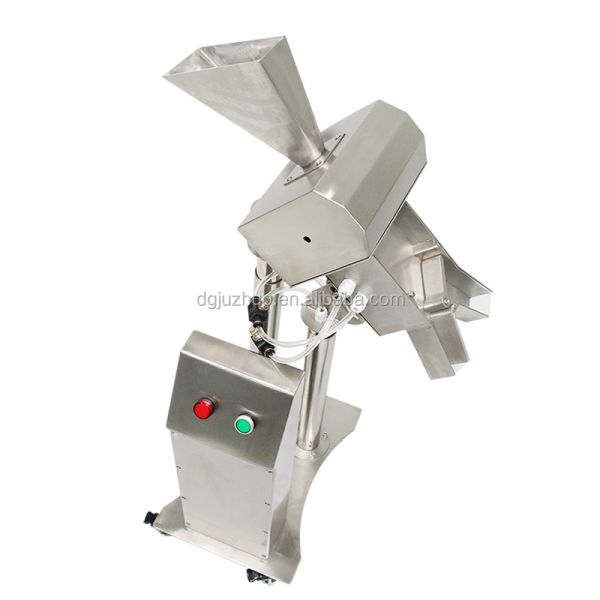

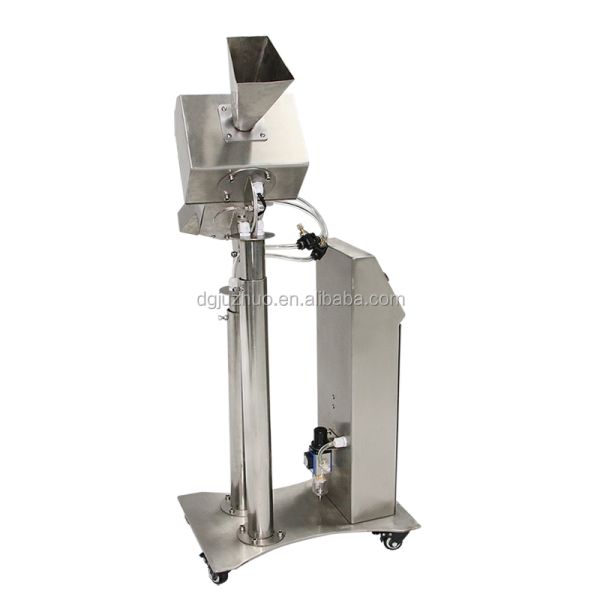

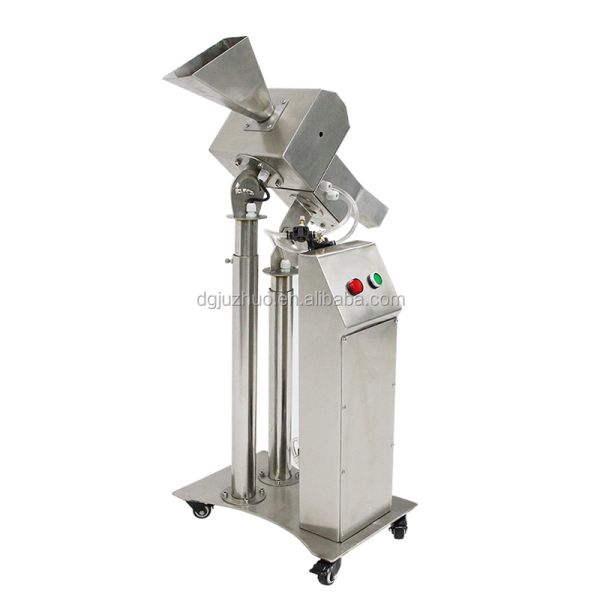

Product Images
Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40 Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40 Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40 Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40 Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40 Tablet Pill Industrial Metal Detector Automated Inspection System JZD-60-40
