Specifications
control panel :
LCD display screen
Brand Name :
JUZHUO
frequency changer :
Japan Panasanic
Raw material :
SUS304
warranty :
1year
motor :
Italy (TRANSTECNO) and Japan Mitsubish
alarm :
audible and visual alarm ,automatic stop
Certification approval :
CE,ISO9001,HACCP
customized support :
OEM, ODM, OBM
conveyor speed :
22m/minutes(adjustable)
conveyor load :
25kg(customized)
Model Number :
JZD-366
MOQ :
2
Price :
€4,071.20
type :
New
Place of Origin :
Guangdong, China
waterproof :
IP66
Description
2025 Popular High Sensitivity Full Digital Metal Detector for Biscuit, Baby Food Etc JZD-366
Product Overview

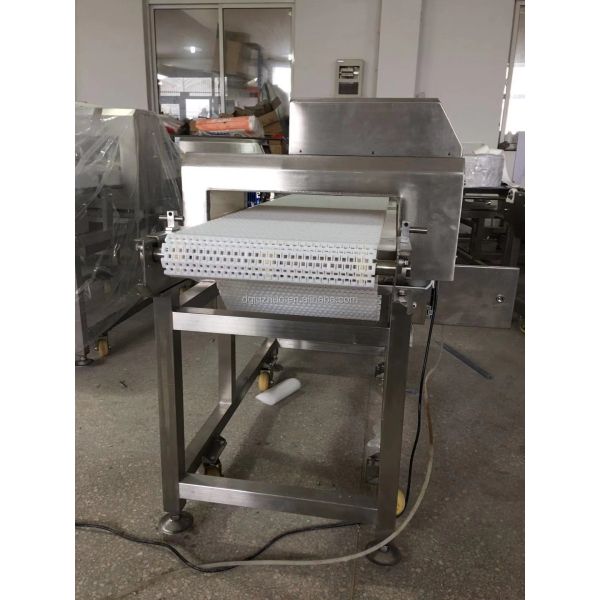

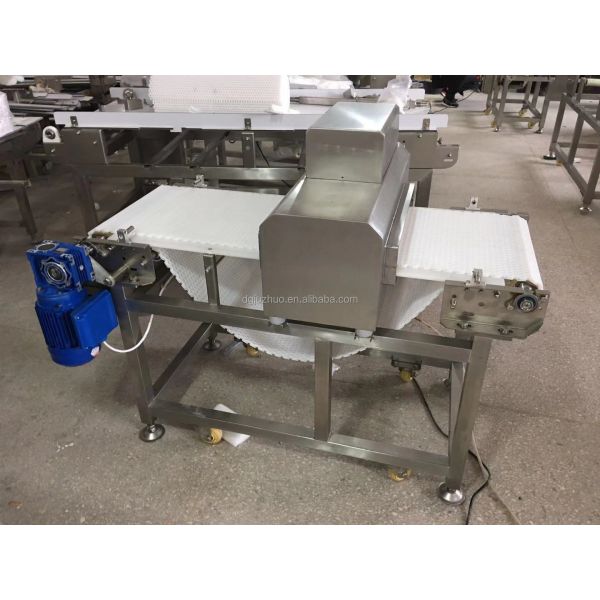

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions. This ensures more stable and dependable metal detection capacity while improving detection effectiveness.

Applications

Model JZD-366 digital metal detector is primarily used for checking metal impurities mixed in or dropped onto bakery products, pizza, hamburgers, puree, dessert items, cakes, cheesecakes, brownies, sauce, and other occasions requiring metal detection. It can operate effectively in high temperature, low temperature, damp, dry, dusty, dewy, and other challenging work environments.

Main Features

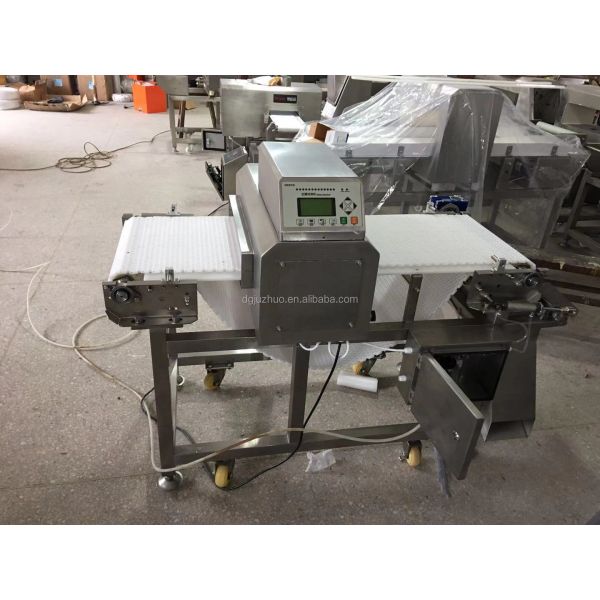

  • LCD display screen control panel with English and Chinese language options
  • Can record up to 100 different product types with detection parameters for easy operation when switching between different product applications
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangular aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference & shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specifications
Model JZD-366
Width of Inspection Window (mm) 400 (customization available)
Height of Inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)×90(W)×100(H)cm (based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz (Power: 90W)
Conveyor Speed 25-30m/min (can be designed according to customer requirements)
Conveyor Height 650mm±50mm (normal) - can be manufactured to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity relates to the nature and temperature of the products, etc. Automatic rejection equipment can be installed according to customer requirements.
