Specifications
Alarm :
audible and visual alarm ,automatic stop
conveyor load :
25kg(customized)
Model Number :
JZD-88
raw material :
stainless steel 304
conveyor material :
PU
conveyor speed :
18m/minutes(adjustable)
waterproof :
IP66
MOQ :
1
Place of Origin :
Guangdong, China
Description
FO Conveyor Food Detector, Needle Detector JZD-366
Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, using the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithms, self-study, and full digital regulating function. This makes the metal detector's detecting capacity more stable and dependable, significantly improving detection effectiveness.
Applications
Model JZD-366 digital metal detector is mainly used for checking metal impurities mixed in or dropped into bakery products, pizza, hamburgers, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It can operate effectively in high temperature, low temperature, damp, dry, dusty, dewy, and other poor work environments.
Main Features
  • LCD display screen control panel with English and Chinese language options
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 different product parameters for detection with simple operation for frequent product changes
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certification
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference & shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specification
Model JZD-366
Width of Inspection Window (mm) 400 (customization available)
Height of Inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm, automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz (Power) 90W
Conveyor Speed 25-30m/min (can be designed according to customer requirements)
Conveyor Height 650mm±50mm (normal) can be manufactured according to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. The actual sensitivity has relation with the nature and temperature of the products, etc. Auto-rejection equipment can be installed according to customer requirements.

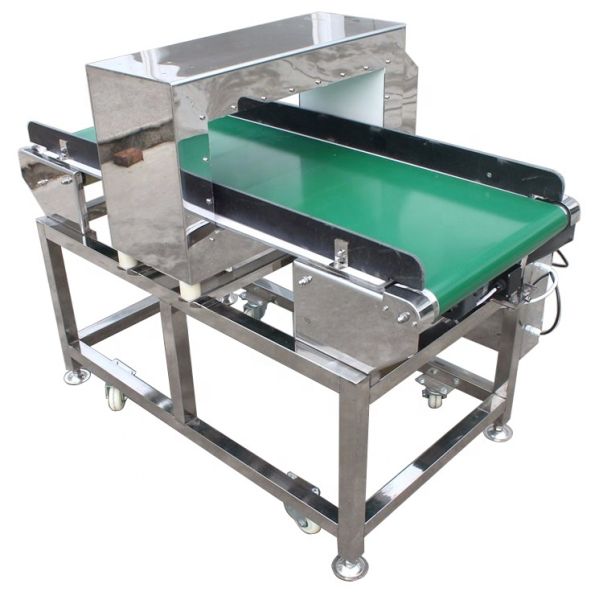

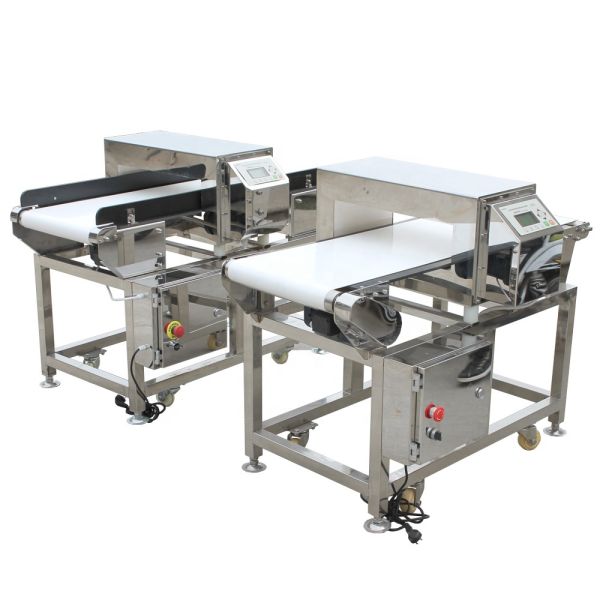

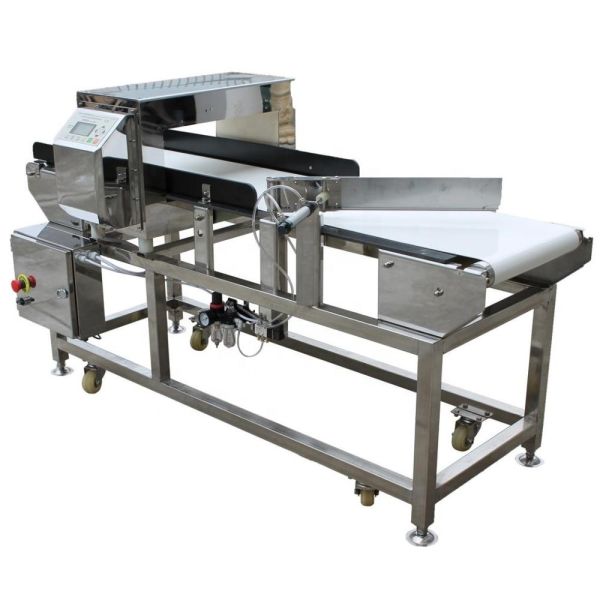

Product Images
Conveyor Food Needle Metal Detector Industrial Inspection System JZD-366 Conveyor Food Needle Metal Detector Industrial Inspection System JZD-366 Conveyor Food Needle Metal Detector Industrial Inspection System JZD-366 Conveyor Food Needle Metal Detector Industrial Inspection System JZD-366 Conveyor Food Needle Metal Detector Industrial Inspection System JZD-366 Conveyor Food Needle Metal Detector Industrial Inspection System JZD-366 Conveyor Food Needle Metal Detector Industrial Inspection System JZD-366
