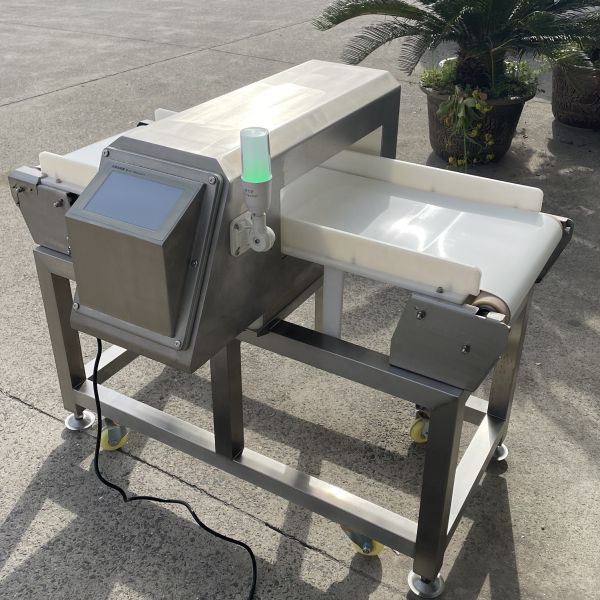

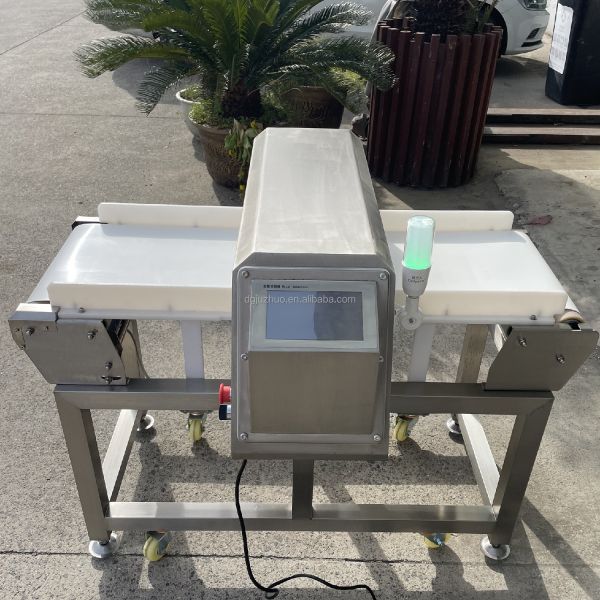

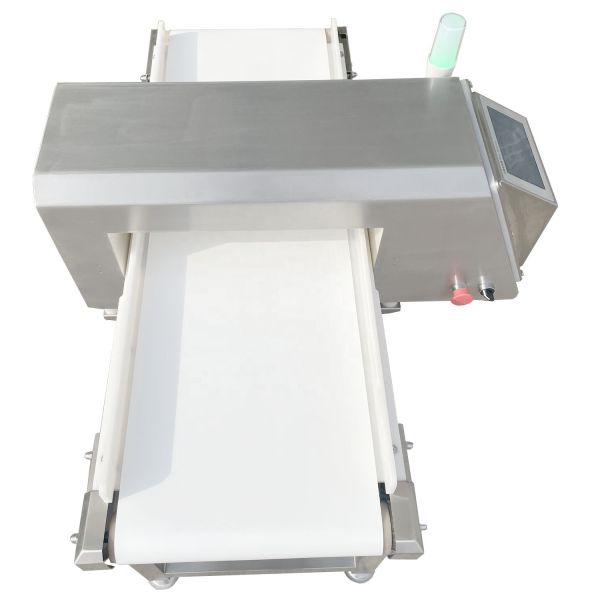

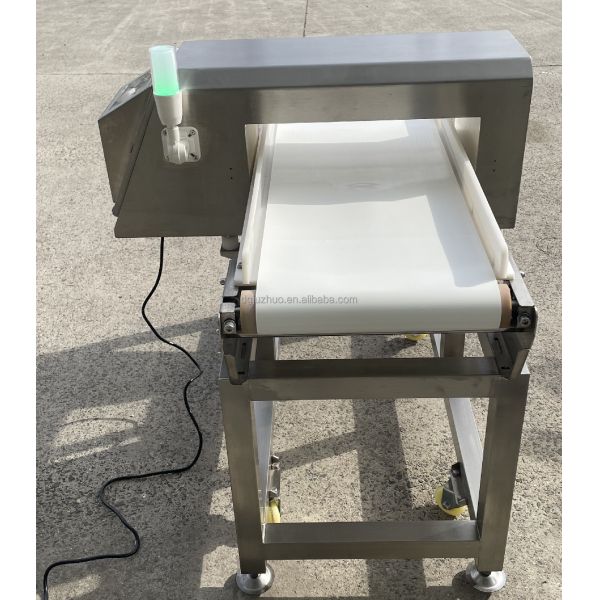

FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
Specifications
type :
metal detector
conveyor load :
25kg(customized)
conveyor speed :
22m/minutes(variable speed,adjustable)
Price :
$4,200
operating frequency :
Multi-Frequency
alarm :
audible and visual alarm ,automatic stop
Search Coil Diameter :
10 cm
motor :
(TRANSTECNO) and Japan Mistubishi
material :
Stainless Steel
MOQ :
2
user :
ALL
control panel :
Touch screen dispaly
raw material :
SUS304 stainless steel
Model Number :
JZD-600
waterproof :
IP66
certification approval :
ISO9001,HACCP,CE
belt color :
white ,green
frequency changer :
Japan Panasanic
sensitivity :
0.8
Place of Origin :
Guangdong, China
Description
2025 Super Popular FDA Standard Belt Conveyor Type Metal Detector for Confectionery Industry JZD-600
Product Overview

FDA Standard belt conveyor type metal detector specifically designed for the confectionery industry. Model JZD-600 offers advanced metal detection capabilities with robust construction and user-friendly operation.

Applications

This equipment is designed for detecting metal foreign bodies in various industries including:

  • Food processing
  • Pharmaceutical manufacturing
  • Food additives production
  • Spices processing
  • Health products manufacturing
  • Other related fields
Key Features
  • Constructed entirely from SUS304 Stainless steel for anti-erosion properties and long lifespan
  • Multi-frequency detection with self-analysis function and high sensitivity
  • Colorful LCD touch screen for convenient user operation
  • Storage capacity for approximately 100 product data sets, ideal for production lines with variable detecting products
  • Dual channel detection: one channel for FE and the other for non-ferrous metals
  • Waterproof IP66 protection level, suitable for high-pressure water washing
  • Stable long-term operation with special design for harsh production environments with strong vibration and high interference
  • No missed alarms even when tapping the probe
  • Succinctly detachable framework design for easy cleaning by operators
Technical Parameters
Parameter Specification
Model JZD-600
Inspection Window Width 400mm (customized) | 500mm (customization)
Inspection Height 120mm | 150mm | 200mm | 150mm | 200mm | 250mm | 300mm
Detection Sensitivity - Fe (Φmm) ≥ 0.8 | ≥ 1.0 | ≥ 1.2 | ≥ 1.0 | ≥ 1.2 | ≥ 1.5 | ≥ 2.0
Detection Sensitivity - Non-Fe/SUS (Φmm) ≥ 1.5 | ≥ 2.0 | ≥ 2.5 | ≥ 2.0 | ≥ 2.5 | ≥ 3.0 | ≥ 3.5
Alarm System Alarm to stop transfer or reject setting
Raw Material SUS304
Normal Machine Size 1700mm (L) × 910mm (W) × 1000mm (H) (Based on normal size 40×12cm)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V/440V 50Hz/60Hz (Power: 90W)
Conveyor Speed 25-30m/min (customized)
Conveyor Height 650mm ±50mm (customized)
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity has relation with nature and temperature of the products, etc. Can install auto-rejection equipment according to customer requirements.
Product Gallery

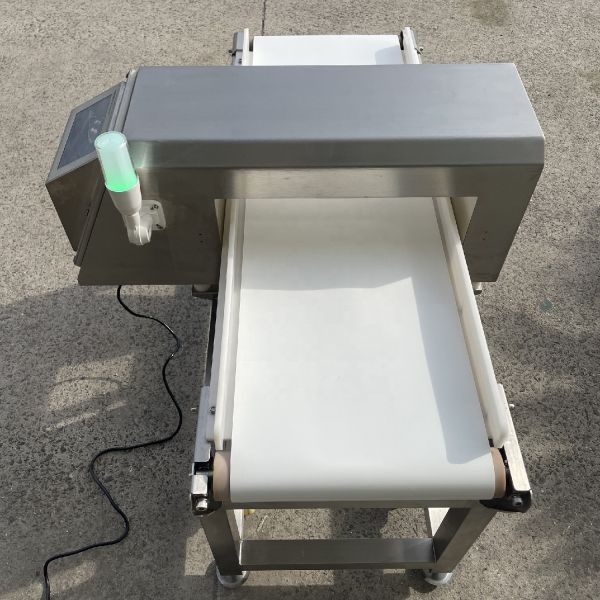

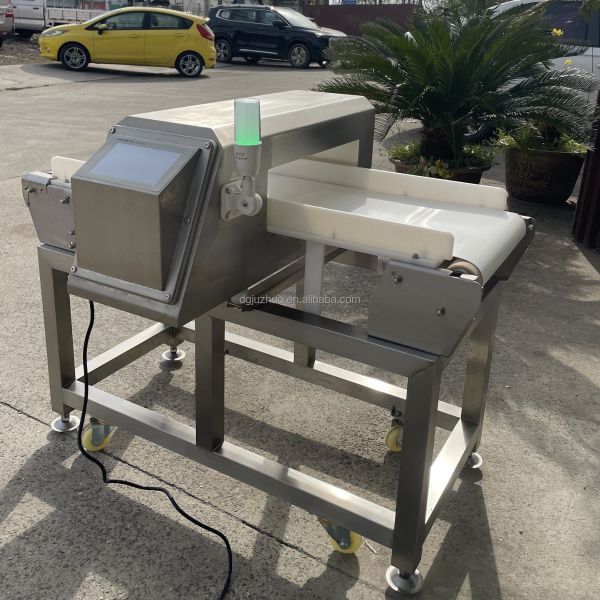

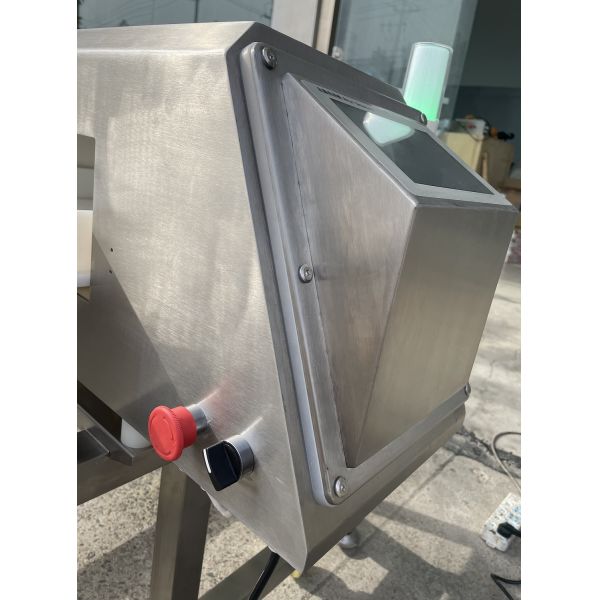

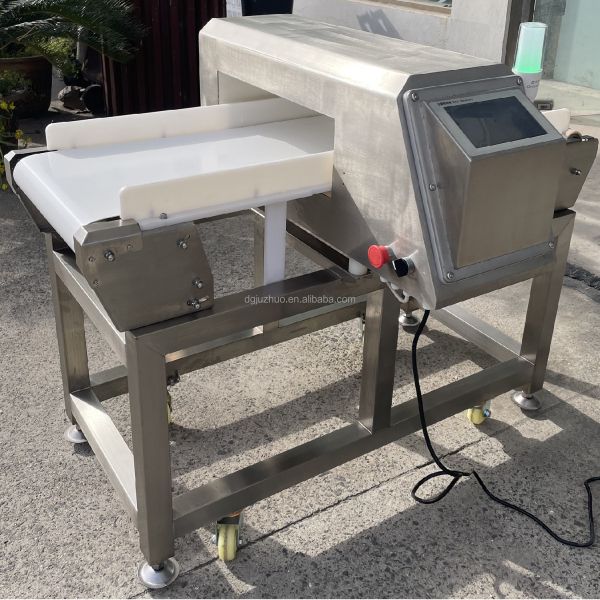

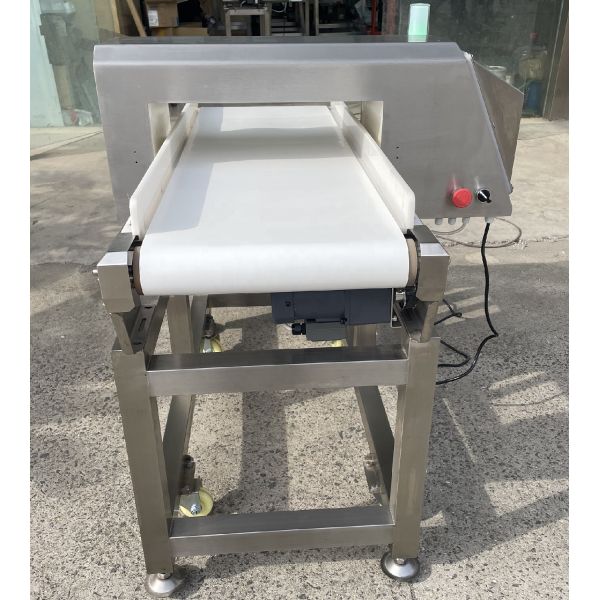

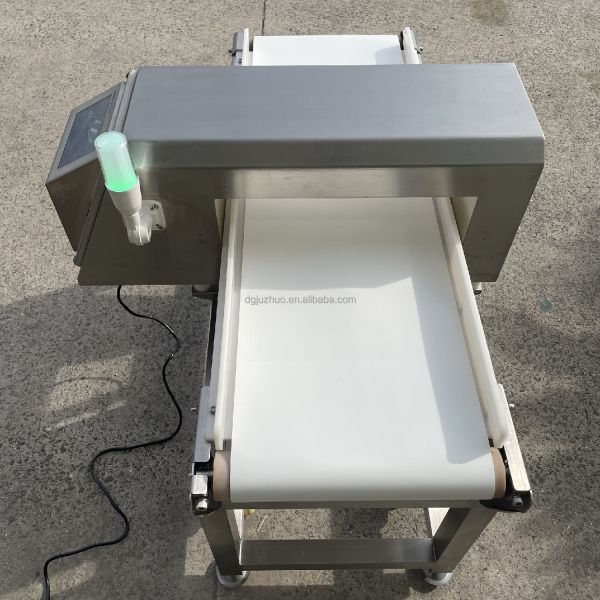

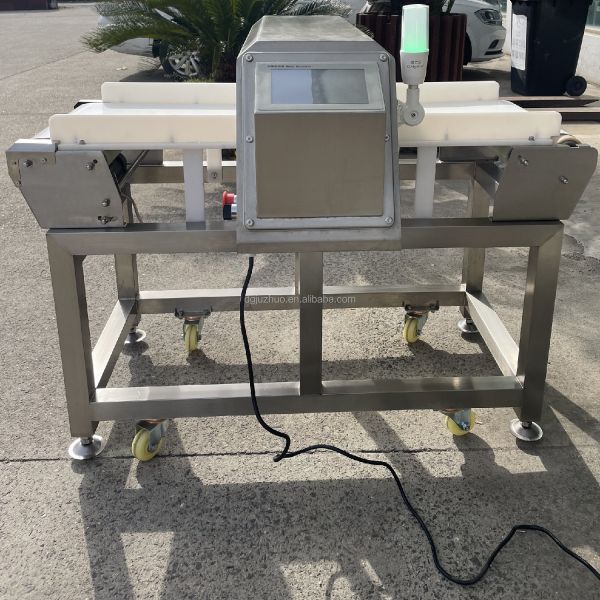

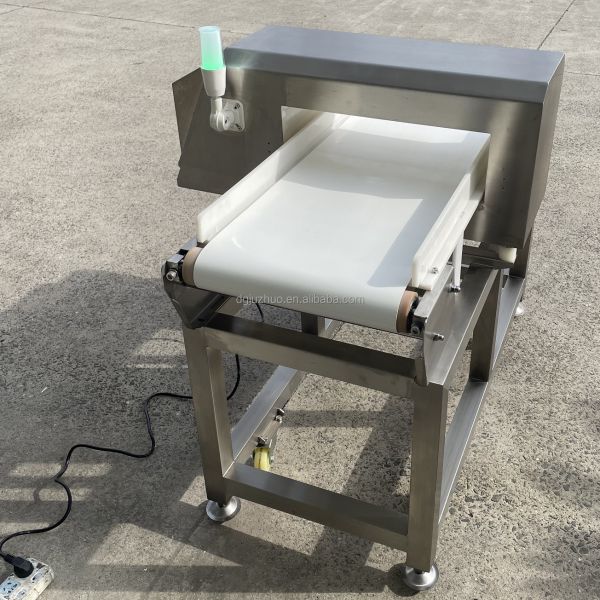

FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600 FDA Standard Belt Conveyor Type Confectionery Industry Metal Detector JZD-600
