Multifunctional 400mm Slant Bed CNC Lathe 4000RPM Shock Resistant
Multifunctional 400mm Slant Bed CNC Lathe 4000RPM Shock Resistant
Multifunctional 400mm Slant Bed CNC Lathe 4000RPM Shock Resistant
Multifunctional 400mm Slant Bed CNC Lathe 4000RPM Shock Resistant
Specifications
Brand Name :
Li Zhun
Model Number :
CK46
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
CK 46 Slant Bed CNC Lathe
Condition :
New
Warranty :
1 Year
Weight :
2600kg
Spindle Speed :
4000rpm
Spindle Turning Diameter :
400 mm
Description

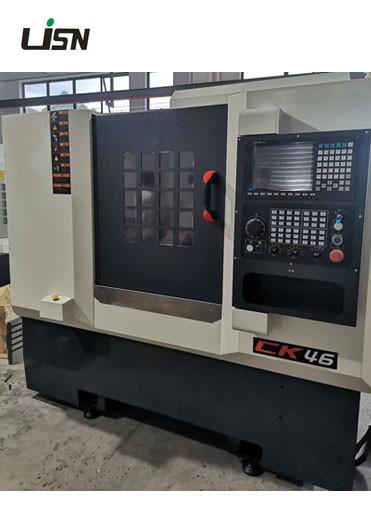

High Precision CK 46 Slant Bed CNC Lathe Hard Guideway High Rigidity

The new CK 46 Slant Bed CNC Lathe inherits the performance and structure advantages of traditional CK models, and have been greatly improved in machining accuracy, reliability, shock resistance and function. The new appearance and control panel make the ease of use of the machine has been significantly improved, greatly improving the work efficiency.

Main Features:

  • The failure rate is extremely low
  • The weight of the machine has increased compared with the old model
  • High speed and high precision, work efficiency is improved
  • Water proofing property is strong
  • Easy to operate

Main Technical Parameters

Specification CK46
X/Y/Z AXIS TRAVEL mm 910*310
Spindle Turning Diameter mm 400
Spindle bore mm ￠56
Spindle Speed rpm 4000 Taiwan Dianya/Tongfu
Spindle Motor Power kw 5.5 Keteng/VEICHI
X/Z RAPID FEED SPEED mm/min 26000/26000 Adjustable 20 m to 30 m
Axial drive/motor power kw 1.3 Deaour/VEICHI
Spindle Specification Set A2-5 Taiwan Dianya/Tongfu
Tools Magazine Capacity T 7 (Center 50 mm high)
Tools Size mm 20*20 Drilling ER20
Clamping Size Set 46# Draw bar + 46 Spindle nose + hydraulic chuck
Screw Configuration mm 3210 Taiwan SHAC/ PMI C3
Guideway Configuration mm X30Z30 Taiwan SHAC/ PMI(x30mm/z30mm)
Repeated Positioning Accuracy mm ±0.005
Dimensions mm 2000*1800*1700
Weight kg 2600 35 degree cast bed + steel structure base

Product Gallery

Multifunctional 400mm Slant Bed CNC Lathe 4000RPM Shock ResistantMultifunctional 400mm Slant Bed CNC Lathe 4000RPM Shock Resistant
