3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
Specifications
Brand Name :
Li Zhun
Model Number :
LZ-500
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Product Name :
CNC Turning Center
Condition :
New
Warranty :
1 Year
Spindle Speed :
3500rpm
Weight :
4600kg
Max. Turning Length :
200mm
Max Machining Length :
500mm
Description

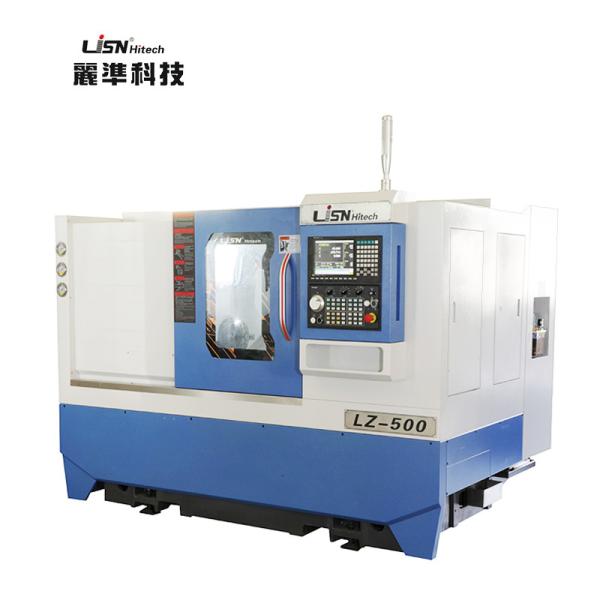

LZ500 High Speed CNC Slant Bed Lathe Machine CNC Turning Lathe

This machine tool is a high speed, high precision, high reliability of inclined bed machine tool. The main components such as bed base, bed body and headbox are cast from high strength materials to ensure the long-term stability of the machine tool.

Machine adopts 45 ° inclined bed overall structure, configuration and high precision linear rolling guide, preload Taiwan adopt servo motor with high torque low inertia and elastic coupling screw straight league, screw pre-stretching structure is used in bearing can eliminate drive back gap and thermal deformation precompensation machine running for a long time influence on accuracy, ensure the position precision and repeat positioning accuracy; The position precision of the machine is high, and the chip removal is smooth, suitable for high speed and high precision machining.

Choice of tool row mode, tool change speed, high positioning accuracy.

Main Technical Parameters

Item Specifications MODELS→ LZ -5000

Processing Range		 Max. Swing Over Bed/Slide mm 560
Max. Processing Diameter mm 500
Max. Processing Length mm 530
Control System CNC System - SYNTEC
Spindle And Chuck Parameters

SpindleType

 - A2-6
Spindle Speed Range rpm 3500
Bar Diameter mm 52
Feed X.Z-Axis Limit Stroke mm 250/610

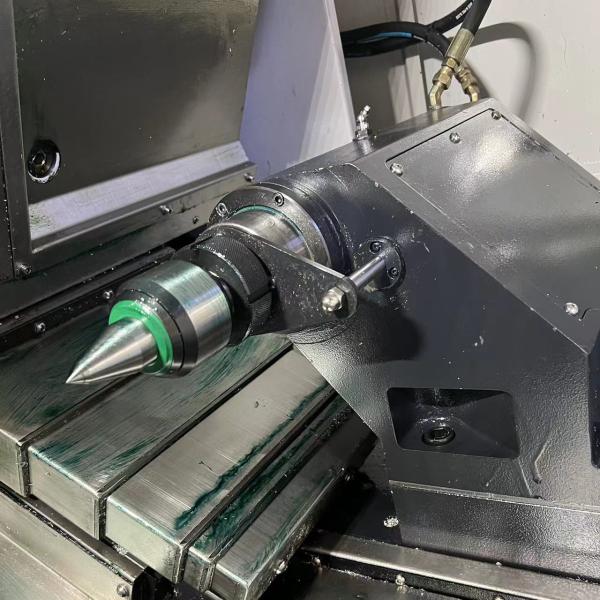

Tailstock Section Tailstock Quill Dia. mm 80
Tailstock Quill Travel mm 100
Taper Hole Of Tailstock Sleeve - Morse 5#
Machine Dimension Net Weight kg 4600
Detail drawing
3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
3500rpm CNC Slant Bed Lathe Machine Efficient And Multifunctional
FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
