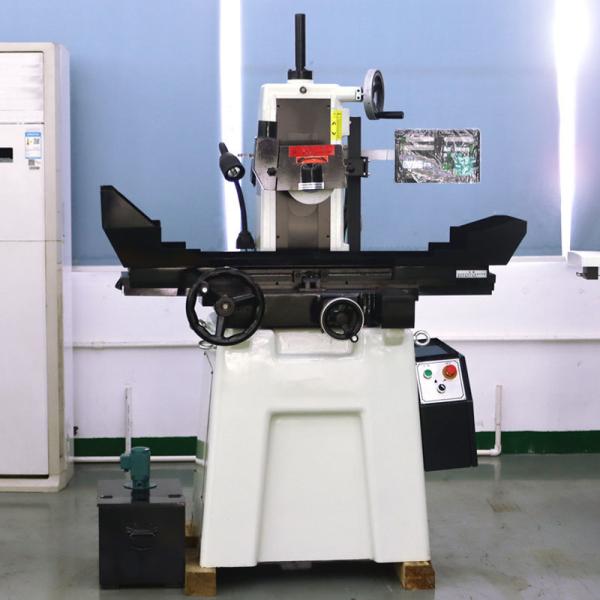

Worktable 150x450mm Precision Surface Grinder 618S / 450 Multifunctional
Worktable 150x450mm Precision Surface Grinder 618S / 450 Multifunctional
Worktable 150x450mm Precision Surface Grinder 618S / 450 Multifunctional
Worktable 150x450mm Precision Surface Grinder 618S / 450 Multifunctional
Worktable 150x450mm Precision Surface Grinder 618S / 450 Multifunctional
Worktable 150x450mm Precision Surface Grinder 618S / 450 Multifunctional
Specifications
Brand Name :
LiZhun
Model Number :
618S/450
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,
Supply Ability :
10000 per year
Delivery Time :
15-30work days
Packaging Details :
Wooden box
Product name :
Precision forming surface grinder
Condition :
New
Type :
Vertical
Machine Dimension :
1500x1100x2100mm
Worktable :
150x450mm
Spindle speed :
3600rpm
Description

618S/450 Multifunctional Precision Forming Surface Grinder Spindle Speed 3600rpm

1. The ball track of the workbench is made of steel, with high-precision steel balls, wear resistance, light movement and high efficiency. The manual worktable is driven by synchronous drive with high stability.

2.The front and rear slideways are closely chipped to ensure smooth sliding, wear resistance, good accuracy and flexible and convenient operation. The manual worktable is driven by synchronous belt, which is durable.

3.Surface grinder is suitable for machining parts of machinery, steel, new energy, aerospace, ship, large and medium-sized.It can meet different machining parts.

Main Features

  • Excellent stability
  • Excellent rigidity
  • High flexibility
  • Milling head can turn around 90°, 45° before and after rotation
  • Equips manual oil pump

Product parameters


Item
Specifications		 Unit 618S/450

Travel Range
Maximum Left And Right Movement		 mm 465

Front And Rear Maximum Movement		 mm 160


Worktable
Worktable(LxW)		 mm 150x450

Maximum Distance From Worktable To Spindle Center		 mm 350

Max Load Bearing Of Worktable		 kg 100

WorktableT-slot		 mmxn 14x1

Worktable Speed		 m/min /

Spindle
Spindle Speed		 50HZ R.p.m 3000
60HZ R.p.m 3600

Spindle Speed		 Kw 1.1

Saddle
Front And Rear Hand Wheel Feed
One Grid		 mm 0.02

A Circle		 mm 5

Front And Rear Automatic Feed		 mm /

Fast Forward And Backward Movement		 50HZ mm /
60HZ mm /

Upper And Lower Hand Wheel Feed
One Grid		 mm 0.005

One Turn		 mm 1

Fast moving Up And Down		 mm/min /
砂轮
Wheel
Wheel Size		 mm 180x16x31.75
Motor
Drive Motor For Up Aad Down(AHD)		 w /

Hydrauic Motor		 Kw /

Flushing Motor		 w 40

Front And Rear Drie Motor		 hp /

Machine Dimension
Net Weight		 kg 950

Machine Weight		 kg 1000

Machine Dimension		 mm 1500x1100x2100

Machine Package Size		 mm 1600x1200x2200

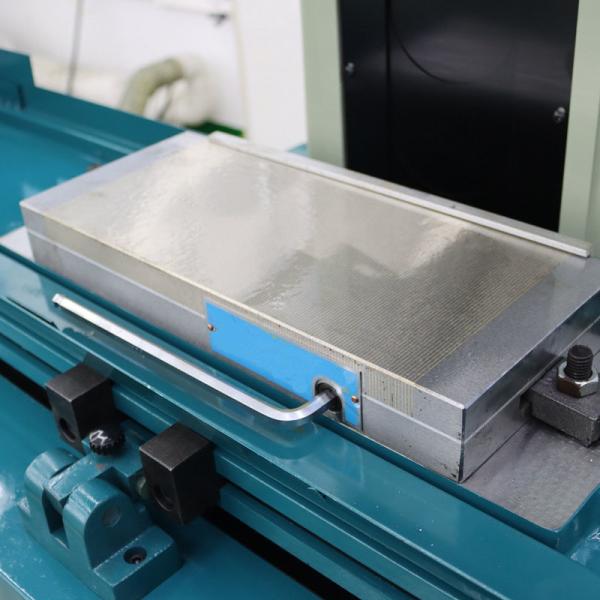

Detail drawing

Worktable 150x450mm Precision Surface Grinder 618S / 450 Multifunctional

RFQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
