Specifications
Brand Name :
Li Zhun
Model Number :
TY-4635
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Product Name :
CNC Turning Center
Condition :
New
Warranty :
1 Year
Spindle Speed :
4200
Weight :
4800kg
Max. Turning Length :
200mm
Max Machining Length :
500mm
Description

LZ 5650 Multi Scene Stable Slanting Bed Turret With Tailtoct Spindle Speed 4200rpm

This machine tool is a high speed, high precision, high reliability of inclined bed machine tool. The main components such as bed base, bed body and headbox are cast from high strength materials to ensure the long-term stability of the machine tool.

Machine adopts 45 ° inclined bed overall structure, configuration and high precision linear rolling guide, preload Taiwan adopt servo motor with high torque low inertia and elastic coupling screw straight league, screw pre-stretching structure is used in bearing can eliminate drive back gap and thermal deformation precompensation machine running for a long time influence on accuracy, ensure the position precision and repeat positioning accuracy; The position precision of the machine is high, and the chip removal is smooth, suitable for high speed and high precision machining.

Main Technical Parameters


Item
Specifications		 MODELS→ JF125 JF-160L

Processing Range
Max. Swing Over Bed/Slide		 mm 450 460

Max. Turning Length		 mm 200 200

Max Machining Length		 mm 300 350

Control System
CNC System		 -

GSK(OptionalMitsubishi/Fanuc/

Siemens/KND/HNC)

Spindle And Chuck Parameters
SpindleType		 - A2-5 A2-5/6″

Spindle Motor Power		 Kw 5.5 7.5

Spindle Speed Range		 rpm 5000 5000

Bar Diameter		 mm 032/O42 42

Feed
X.Z-Axis Limit Stroke		 mm 120/320 210/400

X.Z-Axis Screw Rod		 mm 2508/3210 3210/3210

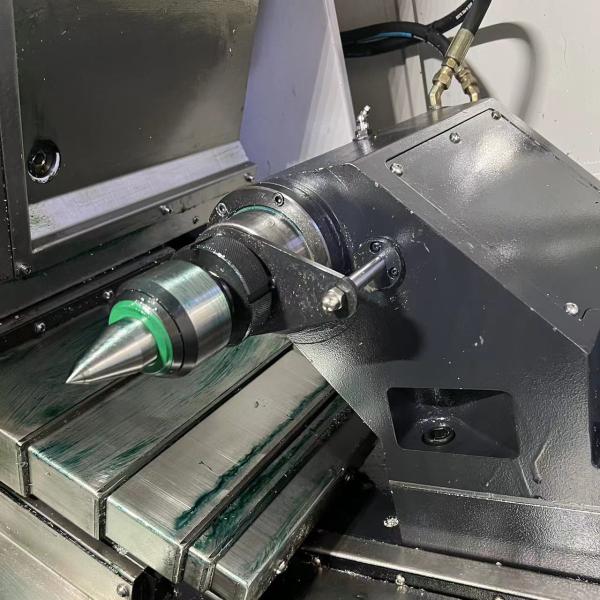

Tailstock Section
Tailstock Quill Dia.		 mm 65 65

Tailstock Quill Travel		 mm 80 80

Max Travel Of Tailstock		 mm 250 300

Machine Dimension
Machine Dimension		 mm 1400x1500x1600 2400x1750x1680

Net Weight		 kg 1800 3800

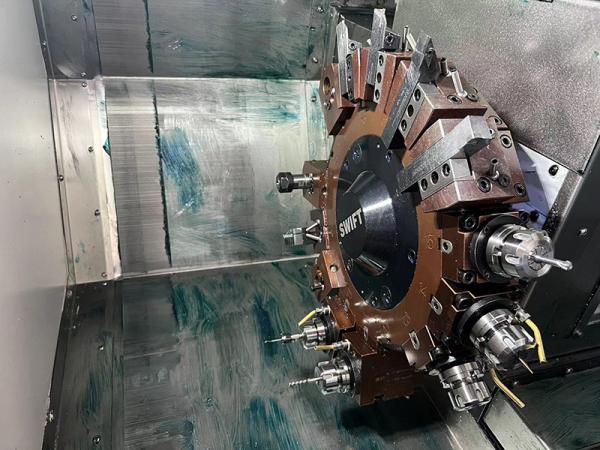

Detail drawing
JF125 500mm Slant Bed CNC Lathe With Power Turret Turning And Milling Machine
JF125 500mm Slant Bed CNC Lathe With Power Turret Turning And Milling Machine
FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
