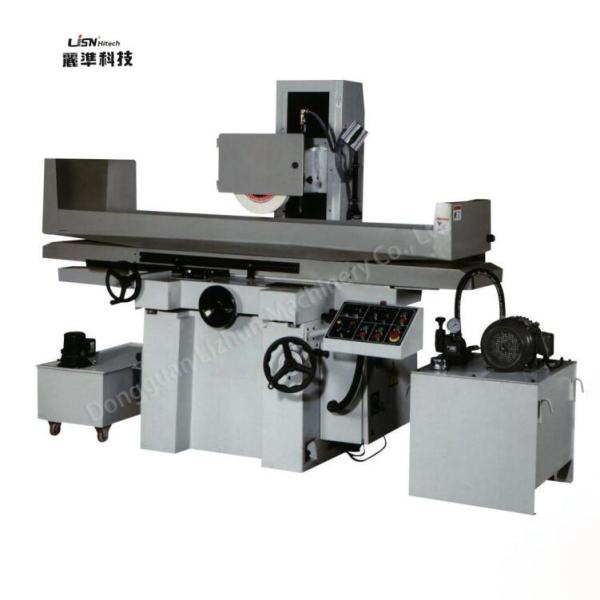

LZ-450DX High Precision Universal Vertical Sruface Grinding Machines
LZ-450DX High Precision Universal Vertical Sruface Grinding Machines
LZ-450DX High Precision Universal Vertical Sruface Grinding Machines
LZ-450DX High Precision Universal Vertical Sruface Grinding Machines
Specifications
Brand Name :
LiSN
Model Number :
LZ-450DX
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,
Supply Ability :
10000 per year
Delivery Time :
15-30work days
Packaging Details :
Wooden box
Product name :
Precision forming surface grinder
Condition :
New
Type :
Vertical
Net Weight :
3800kg
Machine Dimension :
2500x2100x2300mm
Worktable :
800x400mm
Description

LZ-450DX High Precision Universal Vertical Sruface Grinding Machines

1. The ball track of the workbench is made of steel, with high-precision steel balls, wear resistance, light movement and high efficiency. The manual worktable is driven by synchronous drive with high stability.
2. The front and rear slideways are closely chipped to ensure smooth sliding, wear resistance, good accuracy and flexible and convenient operation. The manual worktable is driven by synchronous belt, which is durable.
3. Surface grinder is suitable for machining parts of machinery, steel, new energy, aerospace, ship, large and medium-sized.

Main Features

  • Excellent stability
  • Excellent rigidity
  • High flexibility
  • Milling head can turn around 90°, 45° before and after rotation
  • Equips manual oil pump

Product parameters

LZ-450DX

Maximum Travel(Width x Length)

 150×450mm

Standard Suction Cup Size

 150×450mm

Distance From Table to Spindle Center

 350-400mm
Grinding Area 150×400mm

Worktable Left And Right Speed (Average)

 0.3-25m/min

Automatic Cutting Amount of Grinding Wheel

 0.001-0.03(15stage)

Up and Down Feed Speed

 600m/min

Machining Precision

 300:0.005mm

Surface Roughness

 Ra≤0.25μm

Grinding Wheel Dimension (outer diameter × width × inner diameter)

 180×(6～15)×31.75mm

Spindle Motor

 1.5HP/1.1KW

50/60HZ

Grinding Wheel Speed

50/60HZ 50HZ 3000R.P.M

60HZ 3600R.P.M

Machine Weight

 1000Kg

Boundary Dimension

 1900×1300×2000mm高


Detail drawing

LZ-450DX High Precision Universal Vertical Sruface Grinding Machines

RFQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
