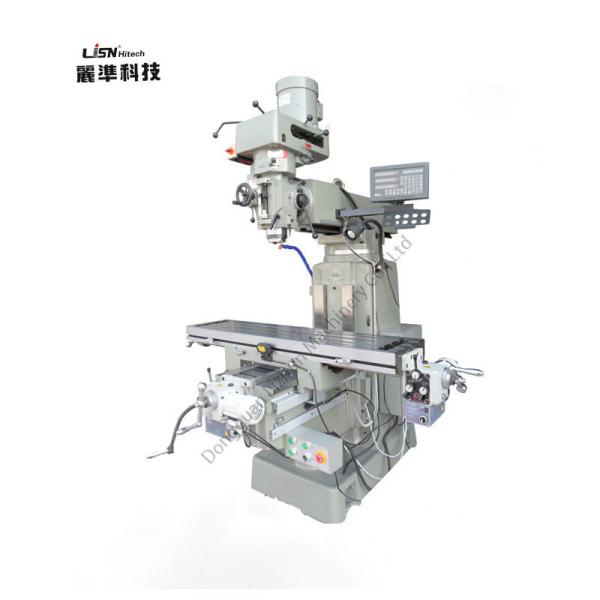

Net Meight 1500kg High Rigidity Vertical Turret Milling Machine Vmc-M5
Net Meight 1500kg High Rigidity Vertical Turret Milling Machine Vmc-M5
Net Meight 1500kg High Rigidity Vertical Turret Milling Machine Vmc-M5
Net Meight 1500kg High Rigidity Vertical Turret Milling Machine Vmc-M5
Specifications
Brand Name :
LiZhun
Model Number :
VMC-M5
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,
Supply Ability :
10000 per year
Delivery Time :
15-30work days
Packaging Details :
Wooden box
Product name :
Vertical Turret Milling Machine
Condition :
New
Type :
Vertical
Net Weight :
1500
Head Motor :
5HP
Frequency :
50/60Hz
Description

Vmc-M5 High Rigidity Vertical CNC Machining Center Vertical Turret Milling Machine

The VMC-M5 is a vertical turret machining center with excellent stability and rigidity. The castings of this CNC lathe are made of cast iron with excellent sensitivity, excellent stability and no deformation problem. The spindle of the machine is made of chromium combined with high quality steel, both cutting ability and precision of the machine are very excellent. The vertical milling head adopts unique inverted hanging design, wihch provides excellent precision to the processing. it is also very simple to operate and easy to brake.

The milling head adopts parts imported from Taiwan and assembled in China. The machine is compact structure and has high flexibility. The milling head can turn around 90°, 45° before and after rotation. It equippes with manual oil pump for centralized lubrication of work table and lifting table. It is suitable for hardware parts, machinery parts, mold and automation manipulator and other industrial applications.

Main Features

  • Excellent stability

  • Excellent rigidity

  • High flexibility

  • Milling head can turn around 90°, 45° before and after rotation

  • Equips manual oil pump.

Product parameters


Item
Specifications		 MODELS→ M4H M5

Travel Range
X /Y Axis		 mm 800/400 900/400
Y Axis mm 400 400
Z Axis mm 480 470

Distance from Spindle center to Machine Body Max/Min		 mm 120/680 120/810

Distance from Spindle center to Machine Body Max/Min		 mm 120/680 120/810

Worktable
Worktable		 mm 254 × 1270 (10'' ×50'') 305×1370 (12'' ×54'')

Slot * Width		 mm 3 × 16 3 ×16

T-slot spacing		 mm 65 65

Maximum Workpiece Weight		 kg 400 350

Spindle
Spindle Taper		 mm R8/NT30 NT40

Spindle travel		 mm 127 127

Spindle Speed		 Steps 16 (Steps) / Variable

Spindle Feed		 mm 0.076 / 0.003'' 0.038 / 0.0015'' 0.203 / 0.008''

Spindle Low Speed		 r/min 66,110,175,270,550,930,1460,2270,variable

Spindle Diameter		 / 85.7 105

Spindle High Speed		 r/min 132,220,350,540,1100,1860,2920,4540/60,4200

Motor
Voltage		 v 220/380/415 220/380/415

Frequency		 Hz 50/60 50/60

Head Motor		 / 3HP 5HP

Cooling Motor		 / 1/8HP 1/8HP

Saddle Width/Length		 mm 280 ×150 350 ×650

Ram Stroke		 mm 510 650

Dimension
Dimension (Length × Width ×Height)		 mm 2000 ×1680 × 2150 1770 ×1780 × 2300

Net Weight		 kg 1380 1500

Detail drawing

Net Meight 1500kg High Rigidity Vertical Turret Milling Machine Vmc-M5

RFQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
