Stable Practical Vertical CNC Lathes LG600 Vibration Resistant
Stable Practical Vertical CNC Lathes LG600 Vibration Resistant
Specifications
Brand Name :
Li Zhun
Model Number :
LG600
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Maximum Swing Over Bed :
800mm
Maximum Turning Length :
700mm
Type :
Vertical
Spindle Motor Power :
22Kw
Condition :
New
Warranty :
1 Year
Description

High Performance Vertical CNC Lathe High Precision High Stability LG600

Product Description

LG600 high precision vertical machining center is specially developed and designed by our company for the machining of automobile brake drum parts. The main parts of the machine tool are analyzed by finite element method to ensure the rigidity of the machine tool. The machine tool is suitable for machining ferrous and non-ferrous metal parts, and can meet the requirements of machining parts with a diameter less than 600. Processing of outer city end face, groove, step, inner hole, cylinder, cone, arc and single head thread, multi head thread, cone thread and pipe thread.

Main Features

  • Excellent rigidity
  • Excellent stability
  • Maximum swing over bed/slide: 800mm
  • Maximum turning diameter: 600mm
  • Maximum turning length: 7000mm
  • Range of spindle speed: 50-2000RPM
  • Spindle motor power: 22Kw

Main parameters

项目 items 单位units 规格 parameter
加工能力 Processing capacity 最大回转直径 Max. swing over bed/slide mm 800
最大车削直径Max. turning dia mm 600
最大工件直径Max. turning length mm 700
主轴Axis 转速范围 Range of spindle speed r/min 50-2000
主轴额定扭矩 Rated torque of main shaft N.m 860
三爪液压卡盘Manual chuck mm 610
主轴端部型号Spindle end model A2-11
主轴轴承(前端)Main shaft bearing mm 180
x/z X 轴行程 Travel of X axis mm 550
Z 轴行程 Travel of Z axis mm 735
X轴快速移动Rapid feed for X m/min 15
Z轴快速移动Rapid feed for Z m/min 10
电机 输出功率 Motor output power 主轴电机(额定/30min) Spindle motor KW 22
X 轴伺服电机 X axis servo motor torque N.m 12
Z 轴伺服电机 Z axis servo motor torque N.m 22
刀架形式 Motor tool post station 卧式12工位
外圆刀刀具尺寸Cutter size mm 32x32
徨孑L刀刀具尺寸Boring cutter size mm O 50
加工精度 machining accuracy IT6 - IT7
X/Z 定位精度 X/Z positioning 0.07/0.013
X/Z 重复定位精度 Re-positioning accuracy 0.006/0.007
机床夕卜形尺寸 Package dimension

mm

(长X宽局)

 1860x2640x3200
机床重量weight 机床总重量N.W/G.W kg 11800
系统System CNC装聽号 FANUC Oi TF

Product Details

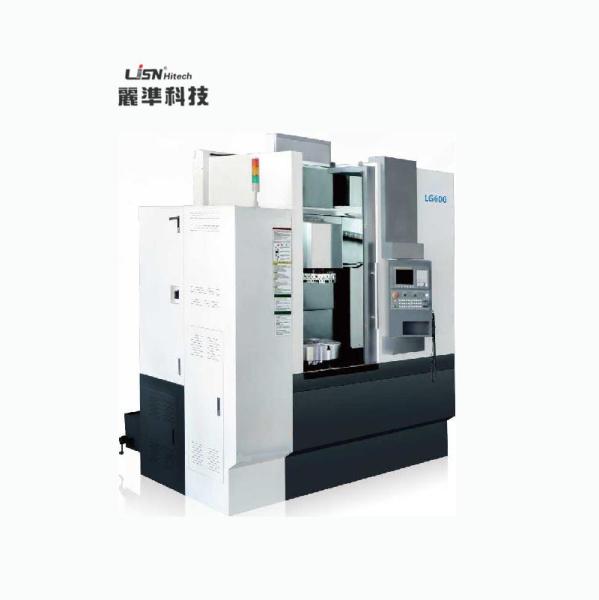

Stable Practical Vertical CNC Lathes LG600 Vibration Resistant

FAQ

1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
