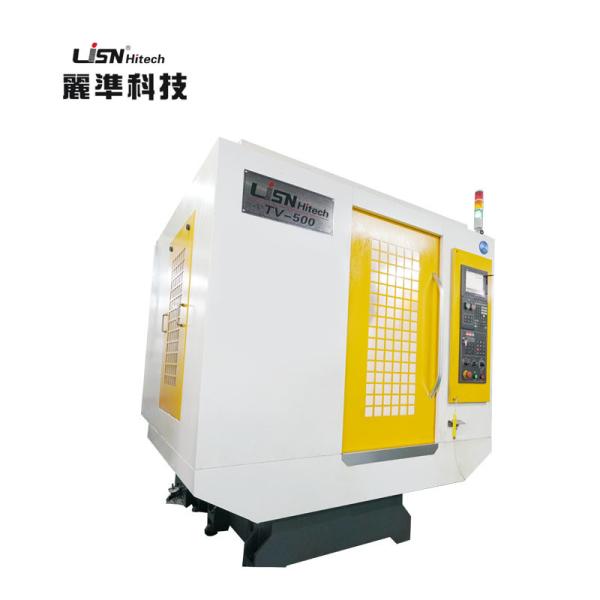

4 Axis CNC Drilling and Tapping Machine High Speed High Precision TV500

Product Description

The 4 axis TV-500 is a high performance CNC Drilling and Tapping Machine with high speed, high precision and high rigidity characteristics. The fuselage and saddle of the machine are reinforced by mountain shaped ribs to provide the best rigidity to the machine. The contact length ratio between the main shaft and the column is appropriate to provide stable support for the main shaft. Independent cooling system is built in the spindle head to stabilize the spindle continuously. The head heat is in a reasonable range, which reduces the thermal extension of the spindle and ensures the machining accuracy. it adopts a super high performance servo motor which was imported from Japan to provide stronger power when heavy cutting.The whole machine adopts a positive displacement lubrication system and a de pressurized oil pump, with stable pressure and flow, which effectively transports the oil to each lubrication point and provides uniform forced lubrication for each slide surface, so as to ensure the accuracy and service life of the machine tool. It adopts Okada or Desu disc manipulator tool magazines, which are installed on the side of the column. It has the characteristics of fast changing speed, accurate tool changing, high efficiency and long service life.

Main Features

• High rigidity of the machine
• High speed and precision spindle
• Maximum cutting feed speed: 1-20000RPM
• Excellet worktable size: 650mm*420mm
• Maximum load capability: 200kg
• Mitsubishi M80 System

Main Parameters

​Standard Configuration for TV Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun

Optional Configuration TV Series

NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

​
