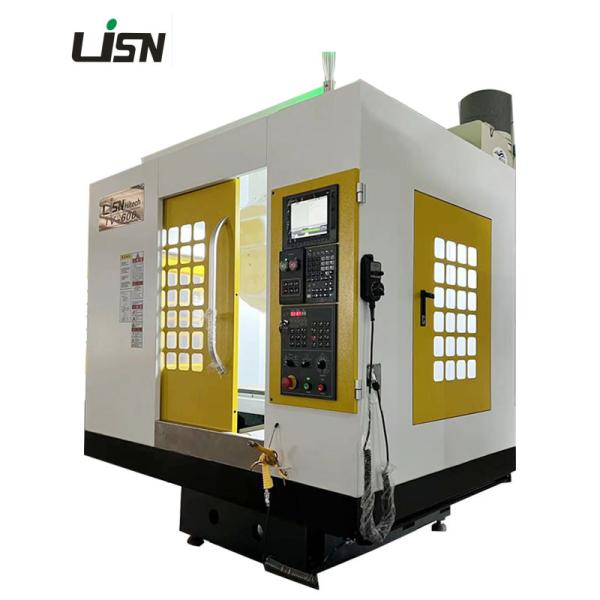

Li Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High Speed
Li Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High Speed
Li Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High Speed
Li Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High Speed
Li Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High Speed
Li Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High Speed
Specifications
Brand Name :
Li Zhun
Model Number :
TV-650
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Product Name :
CNC Drilling and Tapping Machine Center TV-650
Warranty :
1 Year
Condition :
New
Spindle Taper :
BT30
Spindle Speed :
12000RPM
Description

High Speed CNC Drilling and Tapping Machine Center TV-650 High Precision
TV-650 is a high precision, high speed, high rigidity CNC drilling and tapping machine center. The base and other main structures of the machine are made of high quality materials to ensure high rigidity and stability of the overall structure of the machine. The motor has high efficiency, the fast acceleration and deceleration of the motor can effectively reduce the backlash problem and improve the tapping speed and quality. The machine also uses a low inertia spindle motor, the acceleration time is short, achieving 0-12000RPM only takes one second. The TV-650 is also using the TIDD heat source barrier spindle drive system. This system can effectively block the motor heat conduction to the spindle, can greatly reduce the thermal elongation of the spindle, improve efficiency and prolong service life.

Main Technical Parameters

ITEMMODELSTV650
WORKTABLE (WIDTH*LENGTH)mm700*420
DISTANCE BETWEEN T SLOTSmm4*14*100
MAX LOAD BEARING OF WORKTABLEkg250
X/Y/Z AXIS TRAVELmm600/450/400
DISTANCE FROM SPINDLE NOSE TOWORKBENCHmm130-530
SPINDLE HOLE TAPER BT30
SPINDLE SPEED RANGEr/min12000
TRANSMISSION OF SPINDLE BOXBELT/DIRECTOptional
SPINDLE MOTOR POWERkW3.7/5.5( Mitsubishi)/5.5/7.5(Fanuc
X/Y/Z RAPID FEED SPEEDm/min48/48/60(60/60/60)
MAX CUTTING FEED SPEEDmm/min1-20000
TOOLS MAGAZINE CAPACITYpcs14(Standard)16/18/21(Optional)
FULL TOOLS MAX TOOL DIAMETERmm∅80/∅120
MAX.TOOLS ALLOWABLE WEIGHTkg3.5
MAX.TOOLS ALLOWABLE LENGTHmm200
TOOL CHANGE TIMEsec1.8
COOLING PUMP FLOW RATEL/min200
X/Y/Z POSITION ACCURACYmm±0.005
X/Y/Z RE-POSITION ACCURACYmm±0.003
CONTROL SYSTEM Mitsubishi, Siemens, Fanuc
SPINDLE BRAND
ROYAL, Taida, VYU CHENG
BALLSCREW BRAND
Taiwan, Hiwin, PMI
TOOL MAGAZINE BRAND Taiwan
HEAT EXCHANGER BRAND Rucol
MACHINE DIMENSIONmm1700*2015*2300
MACHINE WEIGHTkg1500
Air source/pressurekg/cm27

Standard Configuration for TV Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun

Optional Configuration TV Series

NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

Product Details

Li Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High SpeedLi Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High SpeedLi Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High SpeedLi Zhun 12000RPM CNC Drill Tap Machine TV 650 Multipurpose High Speed
