3.7/5.5/7.5KW CNC Drill Tap Machine Center 200kg 12000RPM TV 500
3.7/5.5/7.5KW CNC Drill Tap Machine Center 200kg 12000RPM TV 500
3.7/5.5/7.5KW CNC Drill Tap Machine Center 200kg 12000RPM TV 500
3.7/5.5/7.5KW CNC Drill Tap Machine Center 200kg 12000RPM TV 500
Specifications
Brand Name :
Li Zhun
Model Number :
TV-500
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 Per Year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
Vertical CNC Drilling and Tapping Machine Center
Warranty :
1 Year
Condition :
New
Spindle Taper :
BT30
Spindle Speed :
12000 RPM
Maximum Load Capability :
200kg
Description

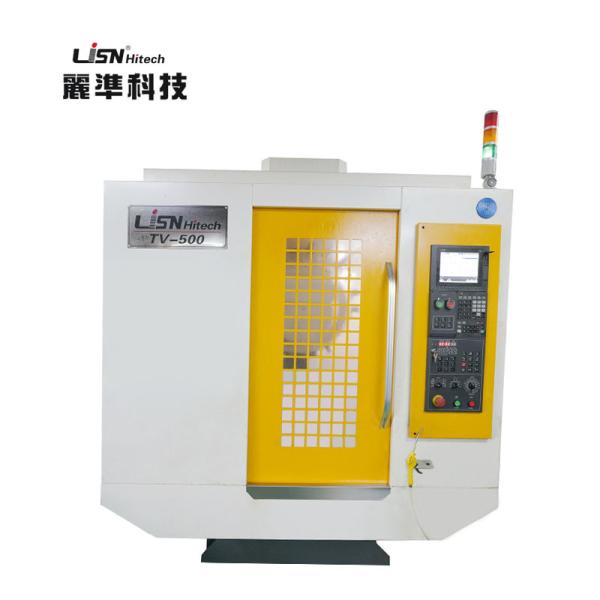

High speed Vertical CNC Drilling and Tapping Machine Center TV-500

PRODUCT DESCRIPTION

The machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient.

The spindle motor and the spindle are designed to be directly connected, so there is no noise and vibration problem because there is no belt. The machine is equipped with a low-inertia spindle motor, which makes the acceleration time very short, from 0 to 12000RPM in one second. The Thermal Isolated Direct Drive System can effectively block the heat transmission of the motor to the spindle, and can significantly reduce the heat of the spindle.

Main Technical Parameters

ITEM MODELS TV-500
WORKTABLE (WIDTH*LENGTH) mm 650*420
DISTANCE BETWEEN T SLOTS mm 14*3*100
MAX LOAD BEARING OF WORKTABLE kg 200
X/Y/Z AXIS TRAVEL mm 510/400/350
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 130-480
SPINDLE HOLE TAPER BT30
SPINDLE SPEED RANGE r/min 12000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
SPINDLE MOTOR POWER kW 3.7/5.5 (Mitsubishi) /5.5/7.5 (Fanuc)
X/Y/Z RAPID FEED SPEED m/min 48/48/60(60/60/60)
MAX CUTTING FEED SPEED mm/min 1-20000
TOOLS MAGAZINE CAPACITY pcs 14 (Standard) 16/18/21 (Optional)
FULL TOOLS MAX TOOL DIAMETER mm ∅80/∅120
MAX.TOOLS ALLOWABLE WEIGHT kg 3.5
MAX.TOOLS ALLOWABLE LENGTH mm 200
TOOL CHANGE TIME sec 1.8
COOLING PUMP FLOW RATE L/min 200
X/Y/Z POSITION ACCURACY mm ±0.005
X/Y/Z RE-POSITION ACCURACY mm ±0.003
CONTROL SYSTEM

  • Mitsubishi, Siemens, Fanuc

  • Mitsubishi, Siemens, Fanuc
SPINDLE BRAND

ROYAL, Taida, VYU CHENG

 ROYAL, Taida, VYU CHENG
BALLSCREW BRAND Taiwan, Hiwin, PMI Taiwan, Hiwin, PMI
TOOL MAGAZINE BRAND Taiwan Taiwan
HEAT EXCHANGER BRAND Rucol Rucol
MACHINE DIMENSION mm 1540*270*2500

MACHINE WEIGHT		 kg 1500
Air source/pressure kg/cm2 7

​Standard Configuration for TV Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun

Optional Configuration TV Series

NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

Product Details

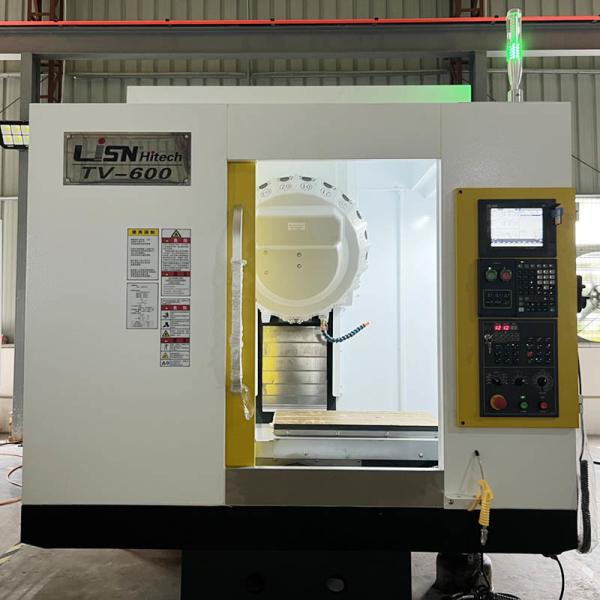

3.7/5.5/7.5KW CNC Drill Tap Machine Center 200kg 12000RPM TV 5003.7/5.5/7.5KW CNC Drill Tap Machine Center 200kg 12000RPM TV 500
