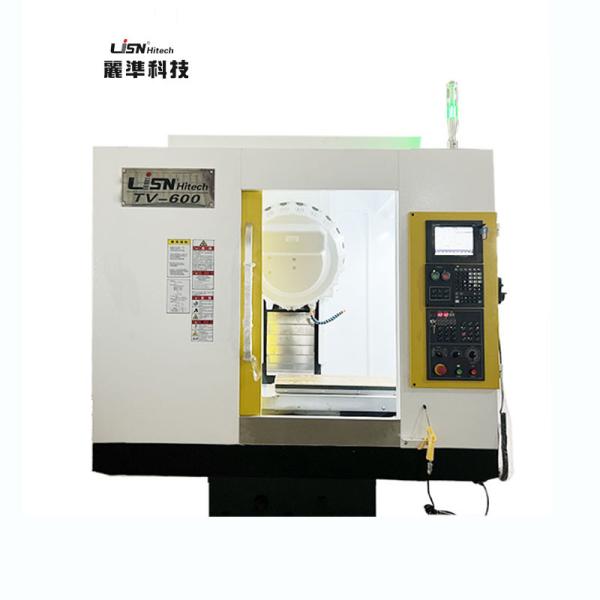

High Speed 5 Axis CNC Drilling And Tapping Machine Center TV600

PRODUCT DESCRIPTION

The 5 axis TV-600 is a high performance CNC drilling and tapping machine center with characteristics of high stability, high speed, high efficiency drilling and tapping performance. It is widely used in 3C, 5G, shell processing of electronics, parts and shell processing of aerospace, small auto parts, medical devices and other industries. The three-axis transmission system of this machine adopts C3 precision ball screw and ball linear guide rail, and adopts P4 imported bearings. The fast displacement can reach 36m/min, and the dynamic accuracy of machining process can reach 0.005mm. The machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system.
The overall rigidity of the machine is very excellent. All the castings are secondary tempered which can provice high rigidity and stability for the machine.

The machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient.

Main Technical Parameters

​Standard Configuration for TV Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun

Optional Configuration TV Series

NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
