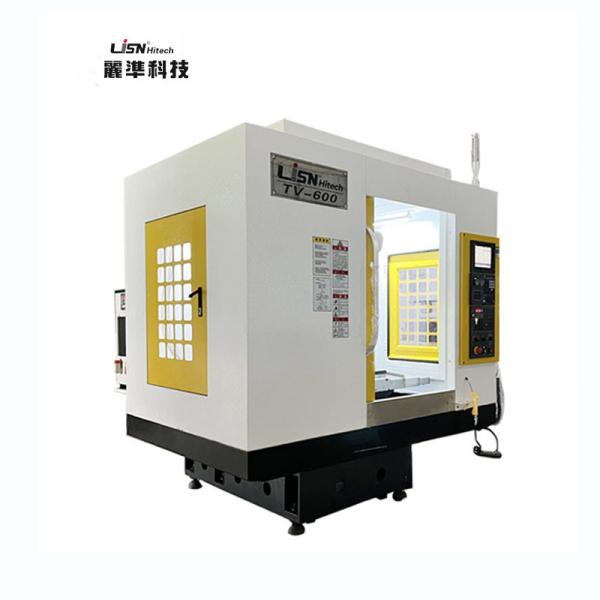

High Speed 4 Axis CNC Drilling And Tapping Machine Center TV600 CNC Machine

PRODUCT DESCRIPTION

The machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient.

The 4 axis TV-600 is a high performance machine with high speed and high precision. This machine is an automatic CNC machining center integrated with the functions of milling, boring, drilling and tapping, the headstock of this machine adopts hanging structure to enhance the machine rigidity. It can be used to machining metal parts such as aluminum, steel and iron. All cstings have been secondary tempered to provide high rigidity for the overall machine. It adopts timing and quantitative automatic centralized oil supply lubrication system to ensure that any lubricating part can be fully lubricated. It also adopts direct coupling connection, with excellent transmission rigid, high precision and stability.

Main Technical Parameters

​Standard Configuration for TV Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun

Optional Configuration TV Series

NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

Product Details
