Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Specifications
Brand Name :
LiSN
Model Number :
TV600
Place of Origin :
China
Certification :
SGS
MOQ :
1
Delivery Time :
15-30 Work Days
Packaging Details :
Wooden box
Repeatability Accuracy :
0.03mm
Feeding Motor :
5.5
Feeding Speed :
48/48/48mm/min
Worktable Size :
720x400mm
Name :
CNC Drill Tap Machine
Spindle Speed :
20000r/min
Cooling System :
Air Cooling
Positioning Accuracy :
0.05mm
Description

Product Description:

CNC Drill Tap Machine is a powerful and reliable CNC mini milling machine which is perfect for drilling and tapping. It is equipped with air cooling system and 380V/50HZ power supply to ensure the best performance. This CNC mini milling machine can support drilling capacity of 50-110mm and maximum tapping depth of 30mm. The maximum drilling depth is up to 50mm, which makes it one of the most powerful and reliable CNC drill taping center on the market.

Technical Parameters:


Item		 Specifications MODELS→ TV600
Travel Range X/Y/Z Axis Travel mm 600/400/300
Distance From Spindle Nose To worktable mm 150-450
Distance from spindle center to column track mm 410

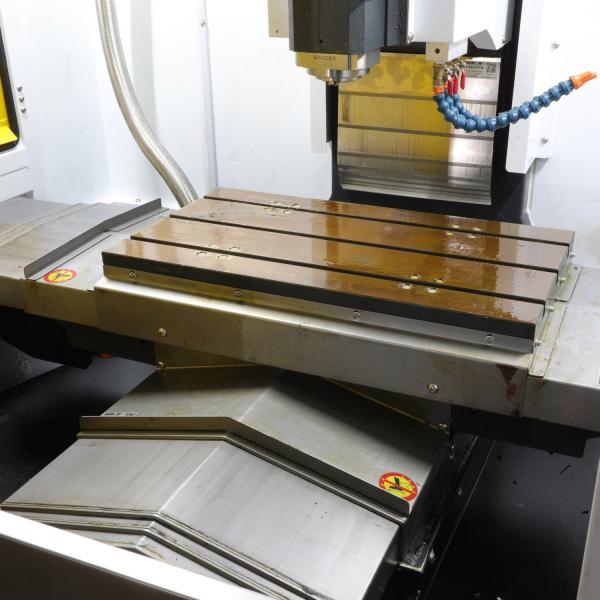

Worktable Worktable (Width x Length) mm 720 X400
Max Load Bearing Of Worktable kg 200
T-Slot(number of SlotxSlot WidthxPitch) mm 3 x 14 x 125
Spindle Spindle Hole Taper type BT30-100-20000
Spindle Speed Range rpm 20000
Motor Spindle Motor Power kw 5.5
Accuracy X/Y/Z Position Accuracy mm ±0.005/300
Machine Dimension Machine Weight kg 3000

Applications:

Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials
Tv600 CNC Drilling Machine 20000r/Min For Processing Aluminum Materials

Support and Services:

Technical Support and Service for CNC Drill Tap Machine

We provide technical support and service for CNC Drill Tap Machines. Our service technicians are highly experienced and knowledgeable in the use and maintenance of CNC Drill Tap Machines. We guarantee a fast response time and quality service. We offer:

  • On-site service
  • Telephone technical support
  • Remote diagnostics and troubleshooting
  • Repair and maintenance of CNC Drill Tap Machines
  • Software and firmware updates
  • Installation and setup of CNC Drill Tap Machines
  • Training and education on CNC Drill Tap Machines
  • Parts ordering and replacement

Our experienced and knowledgeable technicians are available to provide the best service and support for your CNC Drill Tap Machines. Contact us today to learn more about our available services.

Packing and Shipping:

Packaging and Shipping for CNC Drill Tap Machine

The CNC Drill Tap Machine is packaged and shipped in accordance with the following procedures:

  • Place the machine in a protective cardboard box.
  • Secure the box with tape to ensure that the machine is unable to move during transit.
  • Wrap the box with bubble wrap to ensure that the machine is cushioned against any potential impacts.
  • Label the box with the appropriate shipping information.
  • Ship the package using a reliable carrier.

FAQ:

  • Q: What is the Brand Name?
    A: The Brand Name is LiNS.
  • Q: What is the Model Number?
    A: The Model Number is TV600.
  • Q: Where is the CNC Drill Tap Machine from?
    A: The CNC Drill Tap Machine is from China.
  • Q: What is the purpose of the CNC Drill Tap Machine?
    A: The CNC Drill Tap Machine is used to drill and tap holes in materials such as steel, aluminum, and brass.
  • Q: What materials can the CNC Drill Tap Machine work with?
    A: The CNC Drill Tap Machine can work with materials such as steel, aluminum, and brass.
