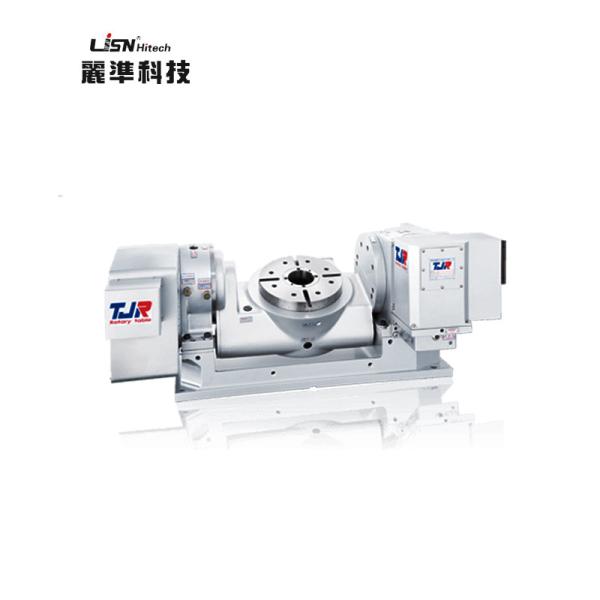

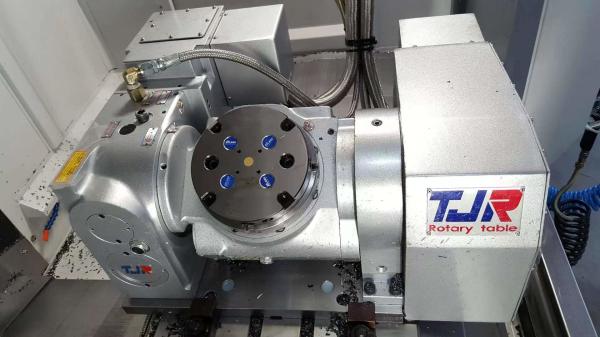

Stainless Steel CNC Machine Rotary Table , 35kg/cm2 CNC Machine Parts
Stainless Steel CNC Machine Rotary Table , 35kg/cm2 CNC Machine Parts
Stainless Steel CNC Machine Rotary Table , 35kg/cm2 CNC Machine Parts
Stainless Steel CNC Machine Rotary Table , 35kg/cm2 CNC Machine Parts
Specifications
Brand Name :
5th CNC Machine Rotary Table
Model Number :
FHR(s)-255C /255CL
Place of Origin :
China
Table T-slot Width :
12H7mm
Material :
Stainless Steel
Table Indexing Repeatability :
6
Warranty :
1 Year
Clamping System :
35kg/cm2
Table Diameter :
255mm
Center Bore Diameter :
255mm
Center Bore Taper :
80H7
Description

Product Description:

The CNC Machine Rotary Table is an essential CNC machine part that provides 5th axis precision rotary motion and indexing. It is designed to ensure maximum precision and accuracy, with Table Indexing Repeatability of 6, Center Bore Diameter of 255mm, Center Bore Taper of 80H7, Guide Block Width of 18h7mm, and Table Indexing Accuracy of 15. It is a reliable solution to meet the highest requirements and expectations of CNC machining.

The CNC Machine Rotary Table is constructed from high-grade materials that are robust enough to work in tough conditions. It also features a high-precision bearing system and a durable gear box for smooth and accurate operation. The CNC Machine Rotary Table is highly versatile and can be used for a variety of machining operations, including milling, drilling, tapping, and reaming. It is also ideal for engraving, turning, and grinding applications.

The CNC Machine Rotary Table offers reliable performance and superior accuracy, making it a great choice for a wide range of CNC machining applications. It is an excellent addition to any CNC machine shop and allows for accurate and efficient machining of complex parts. With its superior quality and reliability, the CNC Machine Rotary Table is the perfect solution for any CNC machining needs.

Features:

  • Product Name: CNC Machine Rotary Table
  • Servo Motor Model: Fanuc
  • 5th Axis: Yes
  • 5th Axis Servo Motor: Yes
  • Warranty: 1 Year
  • Table Weight: 296mm
  • Center Bore Taper: 80H7
  • Table Height: 290mm

Applications:

The 5th CNC Machine Rotary Table is a reliable tool for CNC machining. It is equipped with a FHR(s)-255C/255CL model with a 1-year warranty, making it a very reliable and cost-effective choice for machining. The rotary table is designed with a Fanuc servo motor and is made of stainless steel for superior strength and durability. The table is designed to accommodate 12H7mm T-slot width for precise cuts. This 5th axis CNC machine rotary table is brand new and guarantees to provide outstanding performance and long-lasting use.

Support and Services:

CNC Machine Rotary Table Technical Support and Services
  • 24/7 technical support services
  • Onsite installation and commissioning
  • Maintenance services
  • Remote troubleshooting
  • Software and hardware upgrades
  • Spare parts supply
  • Emergency services

Technical Parameters:

Item Unit FHR(s)-255C /255CL
Table Diameter mm Ø 255
Diameter of center hole on disk surface mm Ø 110
Inner Diameter of Mandrel Sleeve mm Ø 80H7
Diameter of Center Through Hole mm Ø 80
Table Height (Horizontal) mm 290
Table T-slot Width mm 12H7
Guide Block Width mm 18h7
Axis - Rotary axis Tilt axis±110º
Repeatability sec. 6 8
Clamping System kg/cm2 35 35
Clamping Torque kg-m 70 140
Servo Motor Model FANUC - αiF4 / αiF8 / αiS12 / ßiS8(Type) αiF8 / αiS12 / ßiS12(Type)
Mitsubishi - HG/HF-104 HG/HF-154
Speed Reduction Ratio - 0.125 0.125
Max. Rotation Rate of Table
(Calculate with FANUC α Motor)		 r.p.m 33.3 * (25) 16.6 * (11.1)
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 8.13
(Rotary axis)Strength of Roller Gear Cam kg.m 55 *(31)
Net Weight (servo motor excluded) kg 296(Ø255C) / 312(Ø255CL)

FAQ:

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
