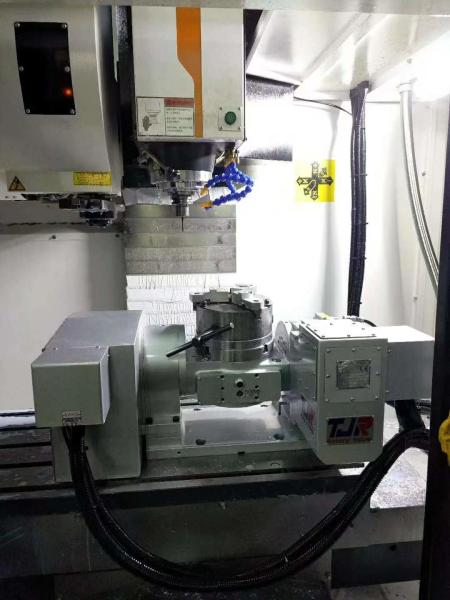

FAR(S)-170 5th Axis Rotary Table Stable Hydraulic Brake Cradle Type
FAR(S)-170 5th Axis Rotary Table Stable Hydraulic Brake Cradle Type
FAR(S)-170 5th Axis Rotary Table Stable Hydraulic Brake Cradle Type
FAR(S)-170 5th Axis Rotary Table Stable Hydraulic Brake Cradle Type
Specifications
Brand Name :
Tjr
Model Number :
FAR(S）-170B(Standard）
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
100000 per year
Delivery Time :
15-30 Work Days
Packaging Details :
Wooden box
Table Diameter :
170mm
Table T-slot Width :
12H7mm
Guide Block Width :
18h7mm
Model NO :
FAR(S）-170B
Warranty :
1 Year
Speed Reduction Ratio :
1:90
Clamping Torque :
31kg-m
Net Weight :
153kg
Description

FAR(S)-170 Stable Hydraulic Brake Cradle Type 5th Axis Rotary Table

Product Introduction

High rigidity

Using radial-axial bearings which easily bear heavy cutting

High precision

Usineg Japan made dual-lead worm and worm gear which ia wear-proof and stable.

High value

Adopting large hole diameter desige which not only provide bigger space for work piece setup with fixtures but also deliver high rigidity.

High aesthetic appearnce

using endurable finish,shining with pearlescent and silver.

FHR(s)-255CL Five-axis machining centers can also reduce benchmark conversion and improve machining accuracy. In actual machining, only one clamping is required, making it easier to ensure machining accuracy. At the same time, due to the shortening of the process chain and the reduction in the number of equipment, the number of fixtures, workshop area, and equipment maintenance costs of the five-axis machining center have also decreased. This means that you can use fewer fixtures, less plant area, and maintenance costs to achieve more efficient and high-quality processing!

Product parameters


Item		 Unit FAR(S)-170(standard)/FAR(S)-170B(Backside style)
Table Diameter mm ∅170
Diameter of the center hole on the disk surface mm ∅67
Inner Diameter of Mandrel Sleeve mm ∅40H7
Diameter of Center Through Hole mm ∅40
Table Height mm 270
Table T-slot Width mm 12H7
Guide Block Width mm 18h7
Axis - Rotary axis Tilt axis±100°
Transmission Mechanism deg. 0.001 0.001
Segmentation accuracy sec. 20 60 *¹
Repeatability sec. 6 8
Clamping System kg/cm2 6 pressure6/oil pressure25(optional)
Clamping Torque kg-m 31 pressure31/oil pressure35
Servo Motor Model FANUC 锥轴/直轴 αiF4 /ßiS8 αiF8 / αiS12 / ßiS12
Mitsubishi 直轴 HG/HF-54/104 HG/HF-104
Speed Reduction Ratio - 1:90 1:90
Maximum disk speed(以Fanuc α) r.p.m 33.3 * (33.3) 33.3 * (16.6)
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 2.7
Allowable Workpiece 0º Horizontal kg 75

0º~90º Tilt

 50

llowable Load
(with clamping)

F

 kgf 750
FxL kgf.m 31

FxL

 31
Rotary axis)Strength of Roller Gear Cam kg.m 18 *(14.6)
Net Weight (servo motor excluded) kg 153

Detail drawing

FAR(S)-170 5th Axis Rotary Table Stable Hydraulic Brake Cradle Type

FAR(S)-170 5th Axis Rotary Table Stable Hydraulic Brake Cradle Type
