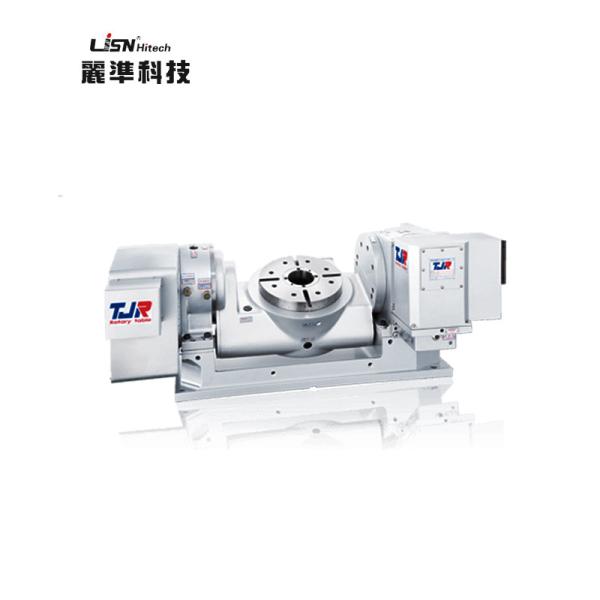

CNC Machine 5th Axis Rotary Table With 12H7mm T-Slot Width
CNC Machine 5th Axis Rotary Table With 12H7mm T-Slot Width
CNC Machine 5th Axis Rotary Table With 12H7mm T-Slot Width
CNC Machine 5th Axis Rotary Table With 12H7mm T-Slot Width
CNC Machine 5th Axis Rotary Table With 12H7mm T-Slot Width
CNC Machine 5th Axis Rotary Table With 12H7mm T-Slot Width
Specifications
Brand Name :
5th CNC Machine Rotary Table
Model Number :
FHR(s)-255C /255CL
Place of Origin :
China
Delivery Time :
5-7work days
Packaging Details :
color box
MOQ :
1
Table Diameter :
255mm
Warranty :
1 Year
Guide Block Width :
18h7mm
Center Bore Diameter :
255mm
Servo Motor Model :
Fanuc
Table T-slot Width :
12H7mm
Clamping System :
35kg/cm2
Application :
Tablet
Description

Product Description:

CNC Machine Rotary Table is a cnc machine part for various machining applications. It is made of high quality stainless steel and has a table weight of 296mm. The center bore taper is 80H7 and it has a table load capacity of 100kg. The table indexing accuracy is up to 15, making it highly accurate and reliable for CNC machine operations. With superior quality and performance, CNC Machine Rotary Table is an ideal choice for all kinds of machining needs.

Features:

  • Product Name: CNC Machine Rotary Table
  • Servo Motor Model: Fanuc
  • Table Load Capacity: 100kg
  • Table Diameter: 255mm
  • Center Bore Diameter: 255mm
  • Center Bore Taper: 80H7

Applications:

The 5th CNC Machine Rotary Table (Model Number: FHR(s)-255C /255CL) is an ideal tool for providing 5th axis machining capabilities. This high-quality CNC rotary table is designed and manufactured in China. It is equipped with a Fanuc Servo Motor for reliable and smooth operation. The Guide Block width is 18h7mm, and the Table T-slot width is 12H7mm, allowing for a Table Load Capacity of up to 100kg. Also, the Center Bore Taper is 80H7, ensuring precise alignment and precise machining. With its reliable performance and excellent machining capabilities, this CNC Machine Rotary Table is the perfect choice for a wide range of applications, such as aerospace, automobile, medical, and more.

Support and Services:

CNC Machine Rotary Table Technical Support and Service

At XYZ Limited, we provide technical support and service for CNC Machine Rotary Table.

Our team of experts are available 24/7 to answer any questions you may have. We will work with you to ensure that your CNC Machine Rotary Table is running optimally and safely.

We can provide troubleshooting assistance, maintenance services, and installation support. If you ever have a problem with your CNC Machine Rotary Table, our team will help you identify the cause and provide the best solution.

We also offer online tutorials and guides to help you understand how to use and maintain your CNC Machine Rotary Table. We are dedicated to helping you get the most out of your product.

If you ever need any technical support or service for your CNC Machine Rotary Table, please don't hesitate to contact us.

Technical Parameters:

Item Unit FHR(s)-255C /255CL
Table Diameter mm Ø 255
Diameter of center hole on disk surface mm Ø 110
Inner Diameter of Mandrel Sleeve mm Ø 80H7
Diameter of Center Through Hole mm Ø 80
Table Height (Horizontal) mm 290
Table T-slot Width mm 12H7
Guide Block Width mm 18h7
Axis - Rotary axis Tilt axis±110º
Repeatability sec. 6 8
Clamping System kg/cm2 35 35
Clamping Torque kg-m 70 140
Servo Motor Model FANUC - αiF4 / αiF8 / αiS12 / ßiS8(Type) αiF8 / αiS12 / ßiS12(Type)
Mitsubishi - HG/HF-104 HG/HF-154
Speed Reduction Ratio - 0.125 0.125
Max. Rotation Rate of Table
(Calculate with FANUC α Motor)		 r.p.m 33.3 * (25) 16.6 * (11.1)
Allowable Inertia Load Capacity (Horizontal) kg.cm.sec2 8.13
(Rotary axis)Strength of Roller Gear Cam kg.m 55 *(31)
Net Weight (servo motor excluded) kg 296(Ø255C) / 312(Ø255CL)

FAQ:

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
