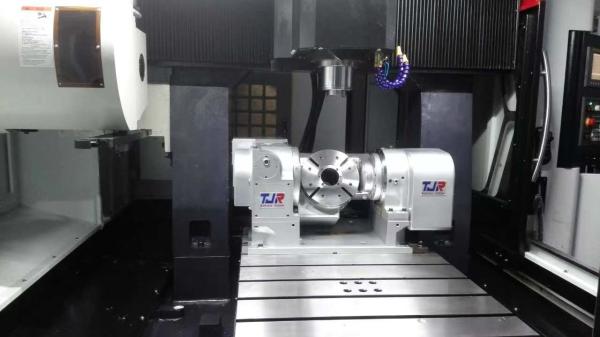

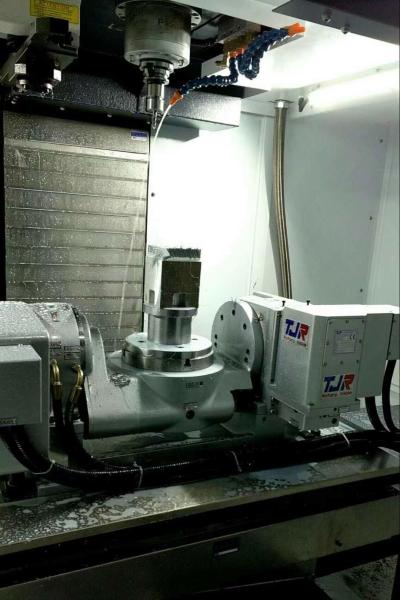

Pneumatic Brake 5th Axis CNC Machine Rotary Table Tilting Index Turntable
Pneumatic Brake 5th Axis CNC Machine Rotary Table Tilting Index Turntable
Pneumatic Brake 5th Axis CNC Machine Rotary Table Tilting Index Turntable
Pneumatic Brake 5th Axis CNC Machine Rotary Table Tilting Index Turntable
Pneumatic Brake 5th Axis CNC Machine Rotary Table Tilting Index Turntable
Pneumatic Brake 5th Axis CNC Machine Rotary Table Tilting Index Turntable
Specifications
Brand Name :
LiZhun
Model Number :
FHR(s)-255C /255CL
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
100000 per year
Delivery Time :
15-30 Work Days
Packaging Details :
Wooden box
Table Diameter :
255mm
Table T-slot Width :
12H7mm
Guide Block Width :
18h7mm
Repeatability :
6mm
Transmission Mechanism :
0.001mm
Table Height :
290mm
warranty :
1 years
Clamping System :
35kg/cm2
Description

Pneumatic Brake 5th Axis Rotary Table CNC Machine Tilting Index Table Turntable

Product Introduction
FHR(s)-255C Five-axis machining centers can also reduce benchmark conversion and improve machining accuracy. In actual machining, only one clamping is required, making it easier to ensure machining accuracy. At the same time, due to the shortening of the process chain and the reduction in the number of equipment, the number of fixtures, workshop area, and equipment maintenance costs of the five-axis machining center have also decreased. This means that you can use fewer fixtures, less plant area, and maintenance costs to achieve more efficient and high-quality processing!

Product parameters

ItemUnitFHR(s)-255C /255CL
Table DiametermmØ 255

Diameter of center hole on disk surface

mmØ 110
Inner Diameter of Mandrel SleevemmØ 80H7
Diameter of Center Through HolemmØ 80
Table Height (Horizontal)mm290
Table T-slot Widthmm12H7
Guide Block Widthmm18h7
Axis-Rotary axis Tilt axis±110º
Transmission Mechanismdeg.0.0010.001

segmentation precision

sec.1560 *¹
Repeatabilitysec.68
Clamping Systemkg/cm23535
Clamping Torquekg-m70140
Servo Motor ModelFANUC

Axis taper/Straight axis

αiF4 / αiF8 / αiS12 / ßiS8(Type)αiF8 / αiS12 / ßiS12(Type)
MitsubishiStraight axisHG/HF-104HG/HF-154
Speed Reduction Ratio-0.1250.125
Max. Rotation Rate of Table
(Calculate with FANUC α Motor)		r.p.m33.3 * (25)16.6 * (11.1)
Allowable Inertia Load Capacity (Horizontal)kg.cm.sec28.13
Allowable Workpiece Load (dynamic)0º Horizontalkg100
0º~90º Tiltkg75
Allowable Load
(with clamping)		Fkgf1500
FxLkgf.m140
FxLkgf.m70
(Rotary axis)Strength of Roller Gear Camkg.m55 *(31)
Net Weight (servo motor excluded)kg296(Ø255C) / 312(Ø255CL)


Detail drawing

Pneumatic Brake 5th Axis CNC Machine Rotary Table Tilting Index Turntable
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
