SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
Specifications
Brand Name :
TBI
Model Number :
SFK01202
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
SFK
Diameter :
12mm
Lead(mm） :
2mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw SFK01202 12mm Diameter Cnc Machine Ball Screw

The TBI Ball Screw SFK01202 represents a premium-grade motion solution engineered to meet the rigorous demands of CNC machinery and high-precision industrial applications. With its 12mm diameter construction, this robust ball screw delivers exceptional load-bearing capacity while maintaining the smooth, frictionless movement that has become synonymous with the TBI brand. Designed specifically for CNC environments where precision and repeatability are paramount, the SFK01202 incorporates advanced manufacturing techniques to minimize backlash and ensure consistent positioning accuracy even during prolonged operation. The screw's optimized geometry and precision-ground surfaces work in harmony to reduce vibration and noise, resulting in quieter machine performance and improved surface finishes on machined components. TBI's expertise in motion control shines through in this model's ability to maintain tight tolerances under varying operational stresses, making it equally suitable for high-speed machining centers and heavy-duty milling applications. The durable construction resists wear while requiring minimal maintenance, offering CNC operators a reliable component that enhances both productivity and equipment longevity. Whether integrated into new machine designs or used to upgrade existing systems, the SFK01202 demonstrates TBI's commitment to delivering industrial-grade solutions that bridge the gap between technical precision and real-world performance. Its balanced combination of strength, accuracy, and durability makes this ball screw a trusted choice for manufacturers seeking to optimize their CNC operations without compromising on quality or reliability.

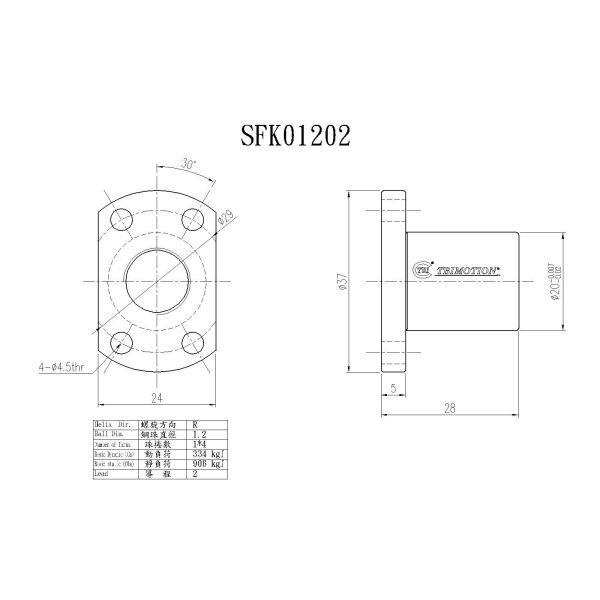

②Drawing of SFK01202
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
③ModeNumber of ball screw series
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
④Construction of SFK Series
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

customized machined service.

NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade

⑥Actual product photo

SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade

⑦Measurement drawing
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
⑧TBI series

SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade

⑨top product recommendation
SFK01202 12mm Diameter Cnc Machine Ball Screw Ball Screw Shaft Industrial Grade
