SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
Specifications
Brand Name :
TBI
Model Number :
SFA5050-1.8
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
SFA
Diameter :
50mm
Lead(mm） :
50mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw SFA5050 50mm Diameter Ball Screws Ball Screw 1200mm

The TBI SFA5050 50mm Ball Screw offers a robust motion solution for industrial applications requiring both power and precision across its 1200mm travel length. This heavy-duty ball screw assembly demonstrates TBI's engineering expertise in creating components that balance substantial load capacity with smooth operational characteristics. The precision-ground surfaces and optimized ball circulation system work in harmony to deliver efficient power transmission while minimizing vibration, reflecting TBI's commitment to both performance and refinement. Engineered for demanding environments, the SFA5050 incorporates durable materials and specialized treatments that enhance wear resistance, ensuring consistent performance through extended service periods. The thermal-stable construction maintains accuracy despite temperature fluctuations common in industrial settings, preventing positional drift that could impact operational quality. TBI's attention to structural integrity is evident in the screw's ability to handle significant axial and radial loads while preserving precise motion characteristics. Designed for straightforward integration with various industrial systems, this ball screw provides the reliable performance that equipment manufacturers trust from TBI products. From heavy automation equipment to material handling systems, the SFA5050 delivers the combination of strength and precision needed for applications where both power and accuracy are essential requirements, reinforcing TBI's reputation for quality motion control solutions in challenging operating conditions.

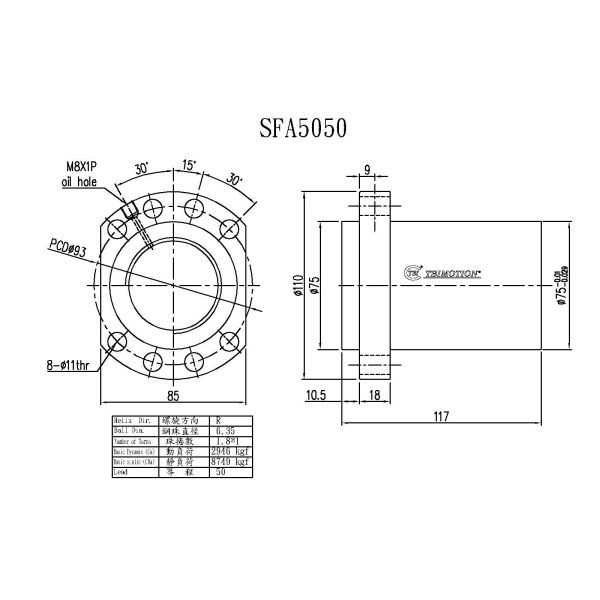

②Drawing of SFA5050-1.8
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
③ModeNumber of ball screw series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
④Construction of SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

⑥Actual product photo

SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series

⑦Measurement drawing
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
⑧TBI series

SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series

⑨top product recommendation
SFA5050 50mm Diameter Tbi Motion Ball Screw Lead Screw Bearing SFA Series
