TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
Specifications
Brand Name :
TBI
Model Number :
SFA4010-3.8
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
SFA
Diameter :
40mm
Lead(mm） :
10mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws

The TBI SFA4010 40mm Ball Screw Shaft exemplifies precision engineering for industrial motion applications, showcasing TBI's expertise in delivering reliable power transmission solutions. This robust shaft assembly demonstrates the brand's commitment to quality through its precision-ground surfaces and optimized ball recirculation system that together ensure smooth, efficient linear motion. Engineered for demanding operating conditions, the SFA4010 incorporates durable materials and advanced manufacturing techniques that enhance load capacity while minimizing wear over extended service periods. The thermal-stable construction maintains consistent performance across temperature variations, preventing accuracy drift in critical applications. TBI's attention to detail is evident in the shaft's ability to handle substantial axial and radial loads while maintaining precise positioning characteristics. Designed for seamless integration with various industrial systems, this ball screw shaft provides the dependable motion control that equipment manufacturers have come to expect from TBI products. The corrosion-resistant treatments and optional protective features extend service life in challenging environments while requiring minimal maintenance. From heavy automation equipment to precision manufacturing systems, the SFA4010 delivers the combination of strength and refined motion quality needed for reliable industrial operation, reinforcing TBI's position as a trusted provider of high-performance mechanical components for demanding applications.

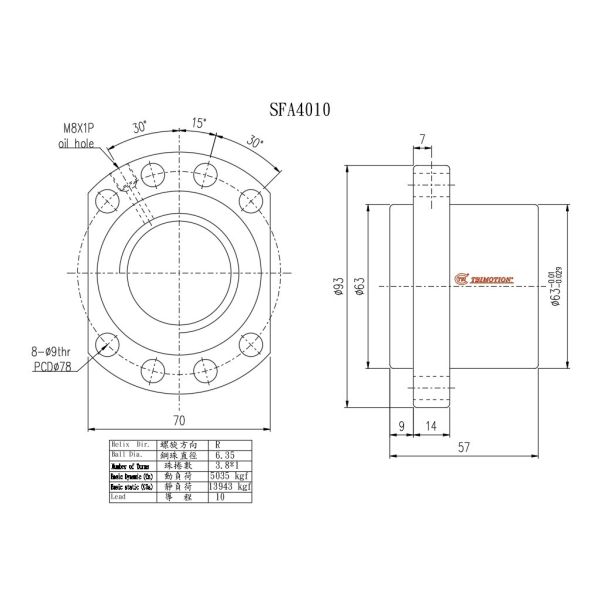

②Drawing of SFA4010-3.8
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
③ModeNumber of ball screw series
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
④Construction of SFA Series
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

⑥Actual product photo

TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws


⑦Measurement drawing
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws

TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws

⑧TBI series

TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws


⑨top product recommendation
TBI Ball Screw SFA4010 Ball Screw Shaft 40mm Diameter Ball Screws
