TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
Specifications
Brand Name :
TBI
Model Number :
SFA4005-3.8
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
SFA
Diameter :
40mm
Lead(mm） :
5mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws

The TBI SFA4005 40mm Ball Screw delivers precision linear motion across its 2000mm length, demonstrating TBI's engineering excellence in creating reliable long-stroke motion solutions for industrial applications. This robust ball screw assembly combines substantial load capacity with smooth operational characteristics, showcasing TBI's ability to balance power and precision in demanding environments. The precision-ground components work in harmony to maintain consistent performance throughout the extended travel length, ensuring accurate positioning even under substantial loads. Engineered for durability, the SFA4005 incorporates wear-resistant materials and optimized ball recirculation technology that minimize friction while extending service life in continuous operation. The screw's thermal-stable design compensates for environmental variations that could affect performance in large workspaces, maintaining precision during extended production runs. TBI's attention to structural integrity is evident in the screw's ability to minimize deflection across its length while preserving smooth motion characteristics. Designed for seamless integration with various industrial systems, this long-stroke ball screw provides the reliable power transmission that equipment manufacturers trust from TBI products. From large-format automation equipment to specialized material handling systems, the SFA4005 delivers the combination of reach, strength, and precision needed for industrial applications where both performance and reliability are essential requirements.

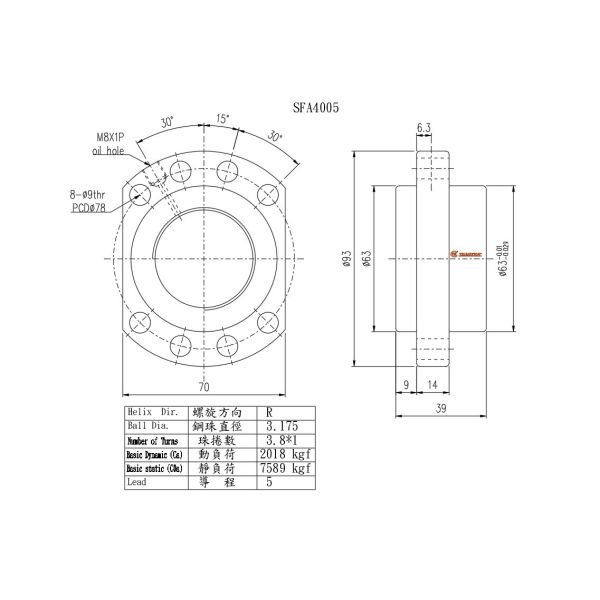

②Drawing of SFA4005-3.8
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
③ModeNumber of ball screw series
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
④Construction of SFA Series
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

⑥Actual product photo

TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws


⑦Measurement drawing
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws

TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws

⑧TBI series

TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws


⑨top product recommendation
TBI Ball Screw SFA4005 Ball Screw 2000mm 40mm Diameter Ball Screws
