Specifications
Brand Name :
TBI
Model Number :
BSHR0082.5
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
BSHR
Diameter :
8mm
Lead(mm） :
2.5mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw BSHR0082.5 8mm Diameter Ball Screw Drive Linear Module

The TBI Ball Screw BSHR0082.5 represents a complete linear motion solution that combines precision engineering with ready-to-integrate convenience in a compact 8mm diameter package. This complete ball screw drive module showcases TBI's system-level approach to motion control, offering designers and engineers a pre-assembled unit that eliminates alignment challenges while delivering exceptional linear movement accuracy. The integrated design brings together TBI's renowned ball screw technology with high-quality support components, creating a cohesive system that performs seamlessly right out of the box. Particularly suited for space-constrained automation applications, medical devices, and precision instruments, the BSHR0082.5 delivers smooth, vibration-free operation thanks to its optimized ball recirculation system and precision-ground components. The module's thoughtful engineering ensures proper preload and minimal backlash while maintaining the flexibility to adapt to various mounting configurations. TBI's attention to detail shines through in the unit's balanced performance characteristics, offering both the responsiveness needed for dynamic positioning and the stability required for precise stops. The complete package reduces assembly time and eliminates guesswork, allowing engineers to focus on system performance rather than component integration. Whether incorporated into laboratory automation, optical positioning systems, or compact industrial equipment, this linear module exemplifies TBI's ability to deliver complete motion solutions that combine reliability, precision, and ease of implementation in a single, well-engineered package.

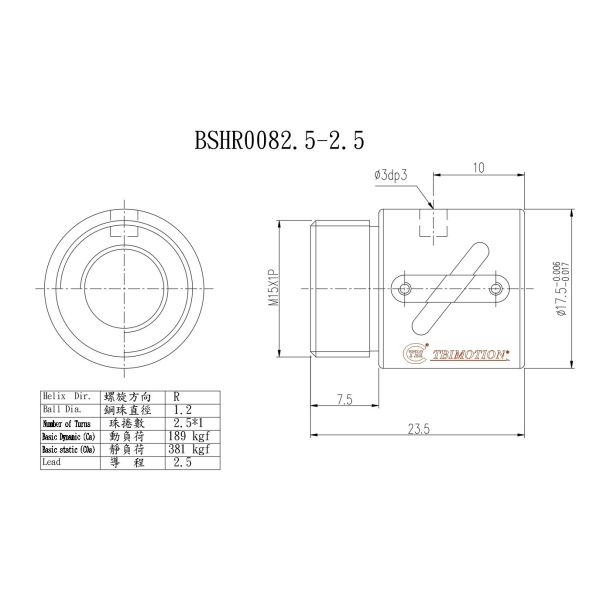

②Drawing of BSHR0082.5
BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module
③ModeNumber of ball screw series
BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module
BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module
④Construction of BSHR Series
BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

customized machined service.

NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module

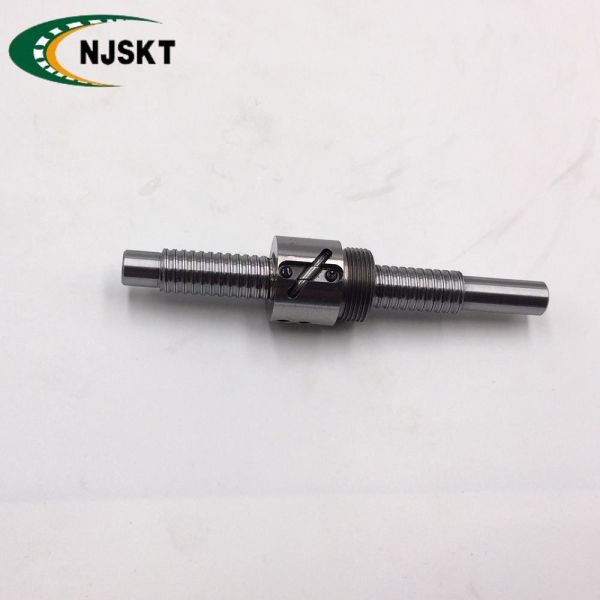

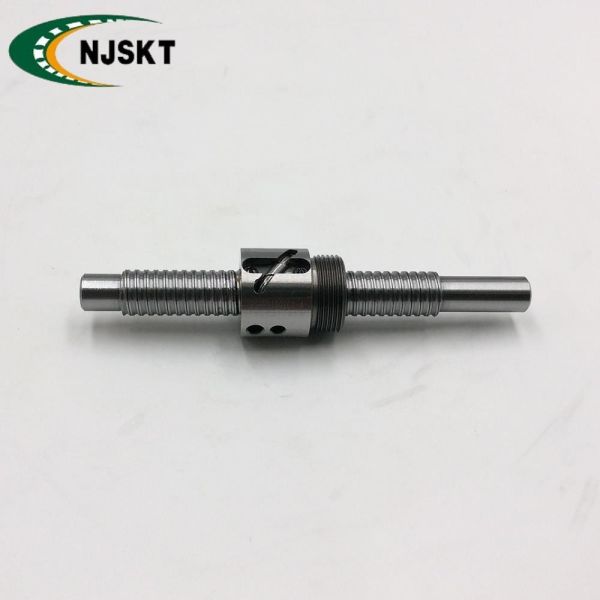

⑥Actual product photo

BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module

⑦Measurement drawing
BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module
BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module
⑧TBI series

BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module

⑨top product recommendation
BSHR0082.5 8mm Ball Screw Easy Installation BSHR Series For Drive Linear Module
