Specifications
Brand Name :
TBI
Model Number :
BSHR01002-3.5
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
BSHR
Diameter :
10mm
Lead(mm） :
2mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw BSHR01002 10mm Diameter Ball Screw Linear Guide Module

The TBI Ball Screw BSHR01002 offers a complete linear motion solution that integrates a precision 10mm diameter ball screw with a robust linear guide system, creating a ready-to-install module for applications demanding both accuracy and structural rigidity. This self-contained unit exemplifies TBI's system-level engineering approach, combining smooth linear motion with exceptional load-bearing capacity in a single compact package. Designed for seamless integration into automation equipment, CNC machinery, and precision positioning systems, the module eliminates alignment challenges while delivering consistent performance right out of the box. The precision-ground ball screw works in perfect harmony with the linear guide mechanism to provide vibration-free movement with minimal friction, ensuring reliable positioning repeatability even during high-cycle operations. TBI's expertise in motion control is evident in the module's balanced design, which maintains optimal preload while accommodating both thrust and moment loads with stability. The integrated construction reduces assembly time and simplifies installation, making it particularly valuable for equipment manufacturers seeking to streamline their production processes. Whether used in semiconductor handling equipment, medical devices, or industrial automation systems, the BSHR01002 module delivers the kind of dependable, maintenance-friendly performance that has made TBI a preferred choice for engineers worldwide. Its combination of precision components and thoughtful system integration represents a practical solution for applications where both motion accuracy and structural integrity are critical to operational success.

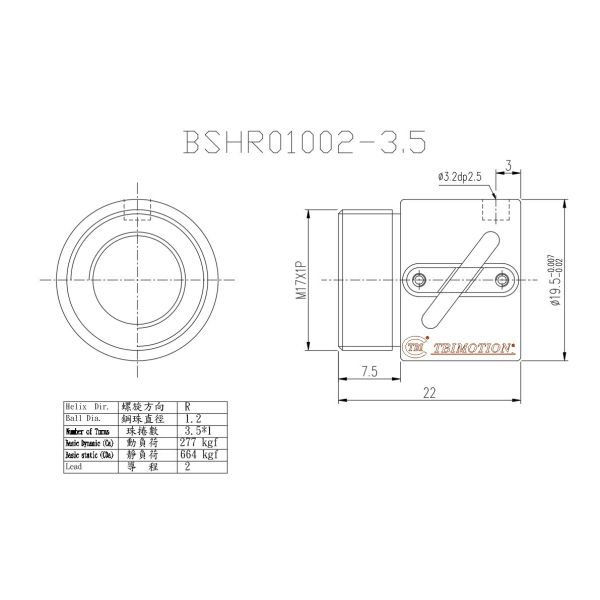

②Drawing of BSHR01002-3.5
BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance
③ModeNumber of ball screw series
BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance
BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance
④Construction of BSHR Series
BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

customized machined service.

NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance

⑥Actual product photo

BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance

⑦Measurement drawing
BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance
BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance
⑧TBI series

BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance

⑨top product recommendation
BSHR01002 Linear Ball Screw 10mm Ball Screw High Performance
