Specifications
Brand Name :
TBI
Model Number :
XSK01004
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
XSK
Diameter :
10mm
Lead(mm） :
4mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw XSK01004 10mm Diameter Linear Motion Ball Screw

The TBI Ball Screw XSK01004 exemplifies precision motion control in a compact 10mm diameter package, delivering exceptional linear movement for applications where space efficiency and accuracy are paramount. Designed for integration into sophisticated automation systems, laboratory equipment, and precision instruments, this linear motion solution combines TBI's renowned engineering expertise with thoughtful design to achieve smooth, reliable performance. The precisely ground screw and optimized ball recirculation system work in concert to minimize friction while maintaining consistent positioning accuracy, even during high-cycle operations. Its balanced construction provides just the right combination of rigidity and responsiveness, making it particularly effective for delicate positioning tasks in optical systems, medical devices, and small-scale automation. The XSK01004 demonstrates TBI's ability to pack high performance into miniature form factors without compromising durability or precision. Engineers will appreciate its whisper-quiet operation and minimal vibration characteristics, which contribute to overall system stability in sensitive environments. With careful attention to detail evident in every component, this ball screw reflects TBI's commitment to advancing motion technology while meeting real-world application needs. Whether used in cleanroom environments, precision manufacturing, or advanced research equipment, the XSK01004 delivers the kind of dependable, repeatable performance that has made TBI a trusted name in motion control solutions for demanding technical applications.

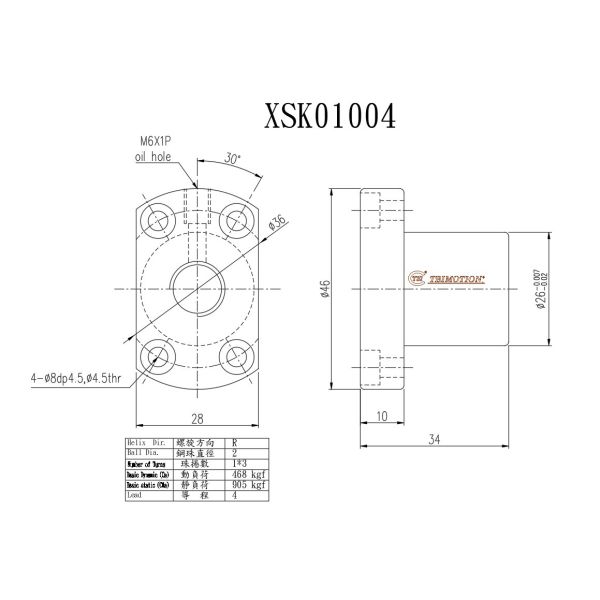

②Drawing of XSK01004
XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized
③ModeNumber of ball screw series
XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized
XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized
④Construction of SFK Series
XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

customized machined service.

NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized

⑥Actual product photo

XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized

⑦Measurement drawing
XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized
XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized
⑧TBI series

XSK01004 Linear Motion Screw 10mm Diameter High Durability Customized

⑨top product recommendation
