BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
Specifications
Brand Name :
TBI
Model Number :
BSHR01004-2.5
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
BSHR
Diameter :
10mm
Lead(mm） :
4mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw BSHR01004 10mm Diameter Cnc Machine Ball Lead Screw

The TBI Ball Screw BSHR01004 delivers professional-grade performance for CNC applications through its precision-engineered 10mm diameter ball lead screw design, offering machine builders an optimal balance of accuracy, durability, and cost-efficiency. This robust motion solution incorporates TBI's extensive experience in CNC technology, featuring a carefully calibrated lead that ensures smooth movement and precise positioning for machining operations requiring tight tolerances. The screw's optimized geometry minimizes vibration during high-speed operation while maintaining the rigidity needed for quality surface finishes, making it particularly suitable for benchtop CNC machines, engraving equipment, and small-scale machining centers. TBI's manufacturing expertise is evident in the component's consistent preload and reduced backlash characteristics, which contribute to improved part dimensional accuracy over extended periods of use. The durable construction withstands the demands of continuous production environments while requiring minimal maintenance, offering machine operators reliable performance cycle after cycle. Designed with practical considerations in mind, this ball screw provides easy integration into various CNC configurations without compromising on the core performance attributes that professionals expect. Its balanced combination of precision engineering and real-world practicality makes the BSHR01004 a smart choice for CNC applications where both accuracy and value matter, demonstrating TBI's ability to deliver quality motion solutions that meet the needs of today's machine tool applications.

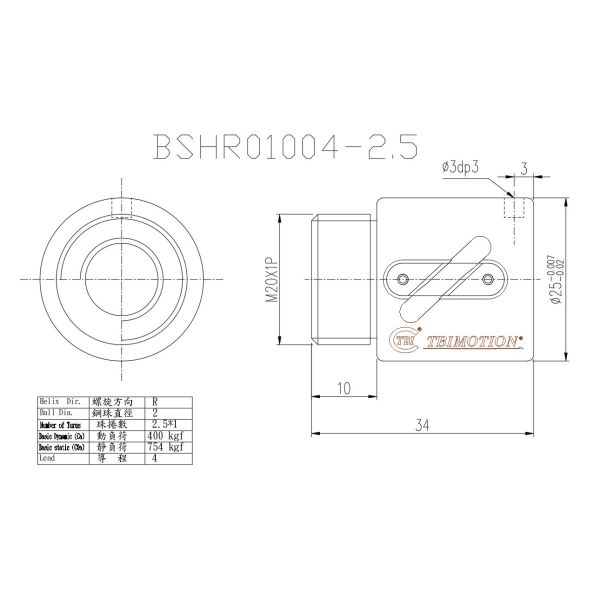

②Drawing of BSHR01004-2.5
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
③ModeNumber of ball screw series
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
④Construction of BSHR Series
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

customized machined service.

NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw

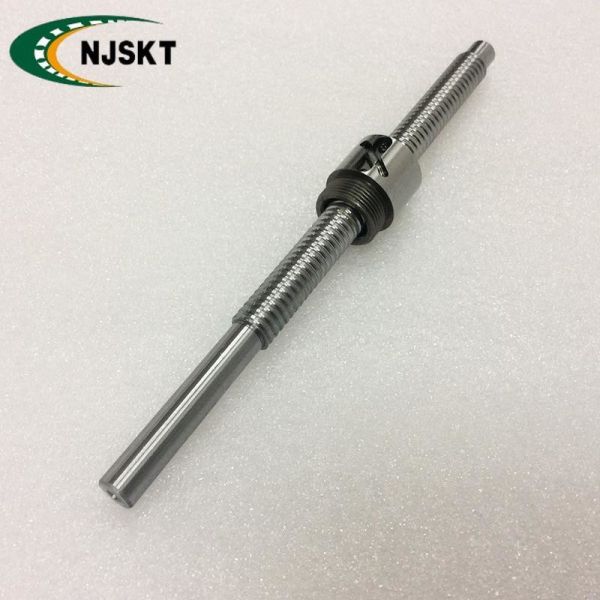

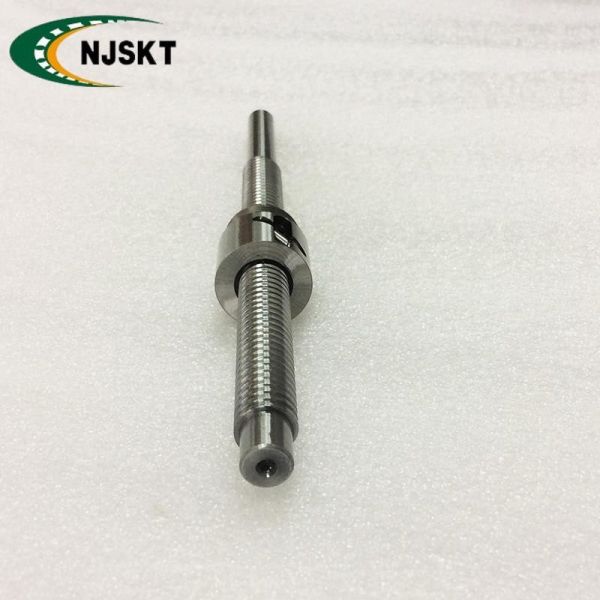

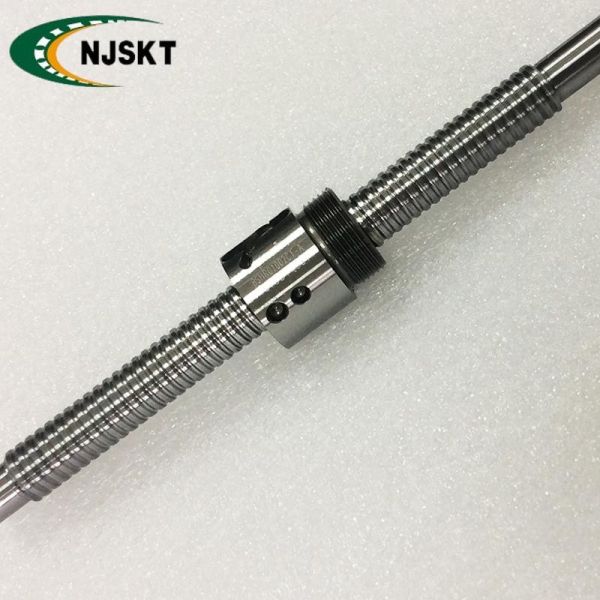

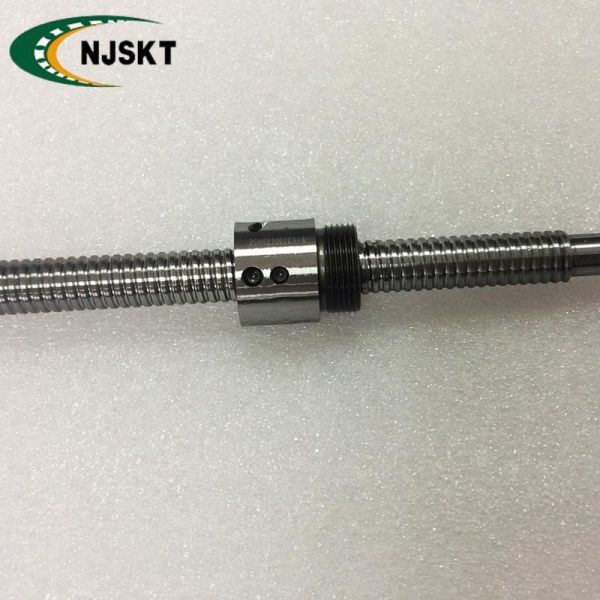

⑥Actual product photo

BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw

⑦Measurement drawing
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
⑧TBI series

BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw

⑨top product recommendation
BSHR01004 10mm Diameter Ball Screw Shaft Bidirectional Lead Screw
