Specifications
Brand Name :
TBI
Model Number :
SFA1620-1.8
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
SFA
Diameter :
16mm
Lead(mm） :
20mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers

The TBI SFA1620 16mm Ball Screw Support Bearing delivers precision motion control specifically optimized for high-performance 3D printing applications, where consistent layer alignment and smooth axis movement are critical for print quality. This specialized bearing assembly provides the stable rotational support needed for ball screw-driven Z-axis systems in industrial-grade 3D printers, ensuring precise vertical movement during the additive manufacturing process. The bearing's low-friction design minimizes vibration and unwanted resonance that could affect surface finish quality, while its rigid construction maintains precise screw alignment for accurate material deposition. Engineered for the continuous operation demands of professional 3D printing systems, the SFA1620 demonstrates exceptional durability through thousands of printing cycles without performance degradation. The thermal-stable materials resist deformation from the temperature variations common in enclosed printing environments, preventing Z-axis drift during long-duration prints. TBI's precision manufacturing ensures smooth rotation with minimal backlash, contributing to the dimensional accuracy of printed parts across multiple layers. The compact design integrates seamlessly with various 3D printer configurations while providing reliable support for high-torque stepper or servo motors. From rapid prototyping to production-grade additive manufacturing, this support bearing enhances 3D printer performance by delivering the stable, repeatable motion required for complex geometries and fine details, reflecting TBI's commitment to advancing motion control solutions for next-generation manufacturing technologies.

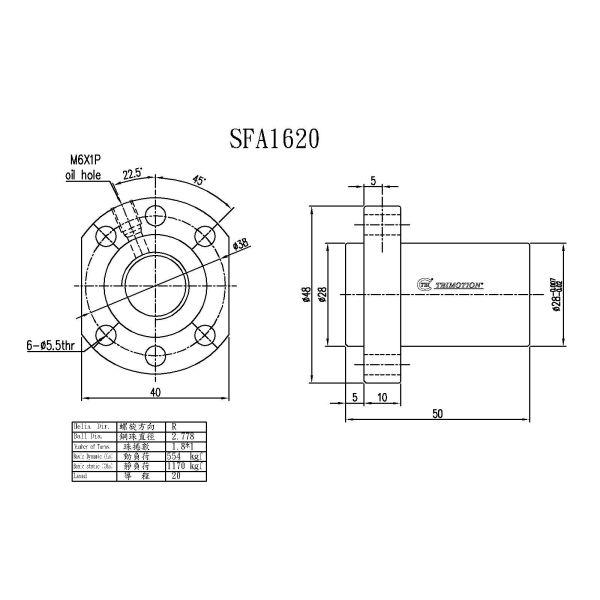

②Drawing of SFA1620-1.8
TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers
③ModeNumber of ball screw series
TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers
TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers
④Construction of SFA Series
TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

⑥Actual product photo

TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers


⑦Measurement drawing
TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers

TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers

⑧TBI series

TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers


⑨top product recommendation
TBI Ball Screw SFA1620 16mm Ball Screw Support Bearing For 3D Printers
