TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
Specifications
Brand Name :
TBI
Model Number :
SFA2510-3.8
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
1
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
SFA
Diameter :
25mm
Lead(mm） :
10mm
Accuracy Grade :
C3,C5,C7
Overall Length of shaft(mm) :
Max 4000mm
Preload Grade :
P0
Material :
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction :
right
Flange type :
double cutting
Proudct code :
F: rolled
Application :
delicate application in industrial application, machine tool and automation application
Installation :
Easy
Description
①TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm

The TBI SFA2510 25mm Ball Screw represents precision engineering at scale, delivering reliable linear motion performance across its extended 3000mm length for demanding CNC applications. This long-span ball screw assembly showcases TBI Motion's expertise in maintaining micron-level accuracy over considerable distances, a critical requirement for large-format machining centers and industrial automation systems. The precision-ground components demonstrate TBI's commitment to quality, ensuring consistent ball recirculation and smooth operation throughout the entire screw length, even under substantial loads. Engineered for stability in long-stroke applications, the SFA2510 incorporates advanced manufacturing techniques that minimize deflection while preserving positioning accuracy across the working range. The screw's thermal-stable design compensates for environmental variations that could affect performance in large workspaces, maintaining precision during continuous operation. TBI's optimized ball circulation technology reduces friction and wear, extending service life in high-cycle production environments while requiring minimal maintenance. Designed for seamless integration with various CNC configurations, this long ball screw provides the reliable power transmission that machine builders trust from TBI's motion control solutions. From gantry systems to large-scale material handling equipment, the SFA2510 delivers the combination of precision and durability needed for industrial applications where both reach and accuracy are paramount, reinforcing TBI's position as a leader in advanced linear motion technology.

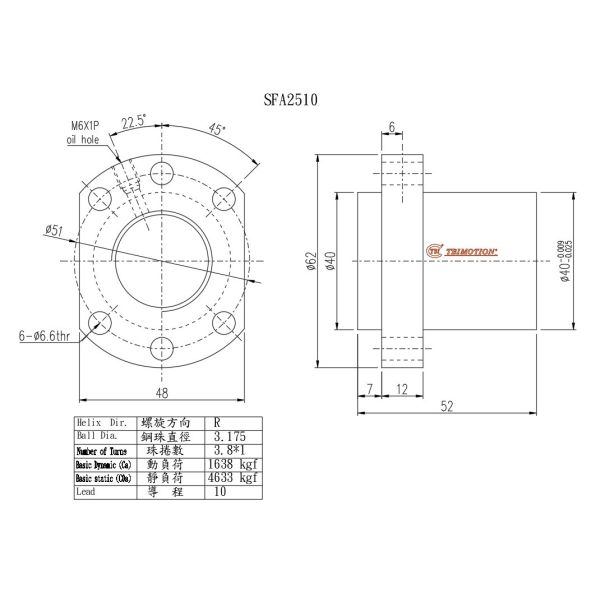

②Drawing of SFA2510-3.8
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
③ModeNumber of ball screw series
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
④Construction of SFA Series
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

⑥Actual product photo

TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm


⑦Measurement drawing
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm

TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm

⑧TBI series

TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm


⑨top product recommendation
TBI Ball Screw SFA2510 25mm Diameter Ball Screws CNC Long 3000mm
