Specifications
Brand Name :
Matsumoto
Model Number :
VMC750
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$16000-17500
Payment Terms :
T/T
Delivery Time :
20 working days
Packaging Details :
plywood case
Table size :
900*420mm
Max.worktable load :
600kg
T slot(number-width-pitch) :
3-18x125
X axis travel :
700mm
Y axis travel :
450mm
Z axis travel :
500mm
Description

Vmc750 Precision CNC Vertical Machining Center Factory Direct Sale


Description:

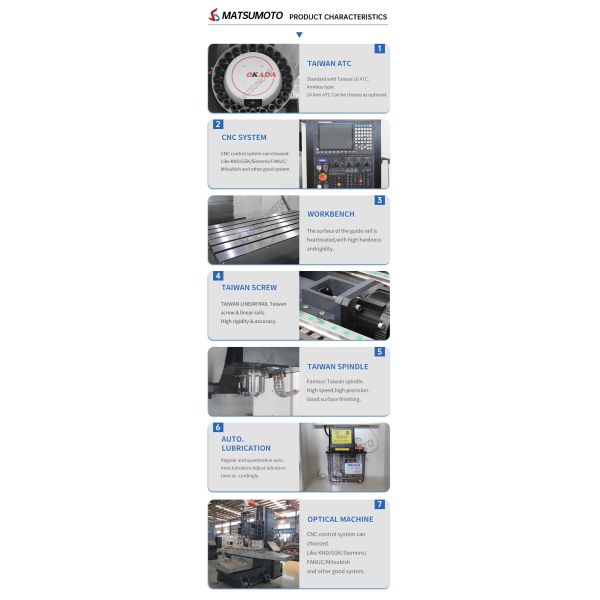

The VMC750 is a mid-to-large size high-precision CNC vertical machining center, ideal for complex metal processing. It adopts a high-rigidity cast iron bed (aged to eliminate internal stress) and is equipped with a high-performance CNC system (optional Fanuc/GSK/Mitsubishi).


Specifications
Units
VMC750
Table size
mm
900*420
Max.worktable load
kg
600
T slot(number-width-pitch)
mm
3-18x125
X axis travel
mm
700(optional 800)
Y axis travel
mm
450(optional 500)
Z axis travel
mm
500
Distance between spindle nose and worktable surface
mm
120-620
Distance from spindle center to guide rail base
mm
650
Spindle taper
/
BT40
Range of revolution
r/min
50-8000
Maximum output torque
N.m
48
Main motor power
kw
7.5/11
Spindle drive mode
/
timing belt
Handle model
/
MAS403 BT40
Pull - nail model
/
MAS403 BT40-I
X/Y/Z rapid traverse speed
m/min
24/24/24 (Optional.36/36/36)
3-axis drive motor power (X/Y/Z)
kw
2.3/2.3/2.8
3-axis drive motor torque (X/Y/Z)
Nm
10/10/18
Feed speed
mm/min
1-20000
Tool magazine
/
Arm 24(Optional:16 Armless)
Tool change type
/
Two-way nearby knife selection
Max tool length
mm
300
Max. tool weight
kg
8
Diameter of cutter recom mended
With a knife
mm
78
Adjacent empty knife
mm
120
Change change time (knife to knife)
s
1.8(armless 8s)
PositionaI accuracy X axis
mm
±0.016
PositionaI accuracy Y axis
mm
±0.012
PositionaI accuracy Z axis
mm
±0.012
Repeated positioning accuracy X axis
mm
±0.010
Repeated positioning accuracy Y axis
mm
±0.008
Repeated positioning accuracy Z axis
mm
±0.008
Machine weight
kg
3800
Total electrical capacity
KVA
20
Overall dimension
mm
2450*2250*2300


Application

Widely used in industries requiring high-precision, large-size workpiece processing:
  • Automotive: Machining of engine parts, transmission housings and large brackets.
  • Aerospace: Processing medium-sized structural components and instrument parts.
  • Mold & Die: Manufacturing large mold bases and complex cavities.
  • General Machinery: Mass/small-batch production of large flanges, shafts and structural parts.
