VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price
Specifications
Distance between spindle center and column surface :
600mm
Price :
20500-25500
Payment Terms :
T/T
Packaging Details :
plywood case
Brand Name :
Matsumoto
Delivery Time :
20 working days
X/Y/Z axis travel :
1100*600*600mm
Certification :
CE
Place of Origin :
China
Model Number :
VMC1160
Distance between spindle nose and table surface :
120-720mm
MOQ :
1
Max. spindle speed :
8000rpm(10000 optional)
Description

VMC1160 Factory Direct CNC Vertical Machining Center With Low Price



Specifications Units VMC1160
Table size mm 1200*600
Max.table load kg 800
T slot / 5-18*100
X axis travel mm 1100
Y axis travel mm 600
Z axis travel mm 600
Distance between spindle center and column surface mm 600
Distance between spindle nose and table surface mm 120-720
Max. spindle speed r/min 8000(10000 optional)
Spindle taper - BT40
Spindle drive type - Belt drive
spindle motor power kw 11
X/Y/Z axis rapid traverse m/min 36/36/24
X/Y/Z guide rail form / 3 axis linear guide rail
Automatic tools changer - 24 arm ATC
Max.tool weight kg 7
Tools Diameter/Length mm 78/300
Tool change time s 7/2.5
Position accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
Machine dimension mm 3400*2480*2960
Machine weight kg 7300


  • Details Images


TAIWAN BRAND MAGAZINE TOOL

OKADA and AIMACH are available;24 disk type magazine tool,Tool changing speed 1-2 seconds.
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price

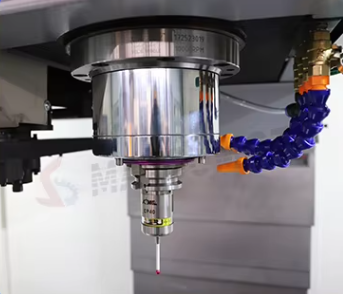

TAIWAN BRAND SPINDLE



The standard configuration is 8000rpm,and the options are 10000 rpm and 12000 rpm;High speed spindle,stable and efficient.
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price

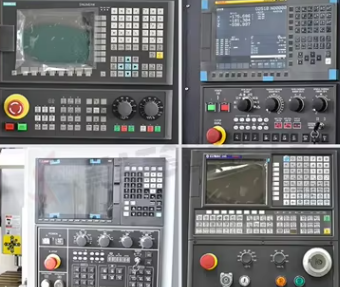

CNC CONTROL SYSTEM



SIEMEN,KND,FANUC,MITSUBISHI,GSK AND other operating systems can be selected according to customer requirements.

WORKBENCH



Workbench Ultra Audio Quench;Increase rigidity and stiffness Good wear resistance and long service life.
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price

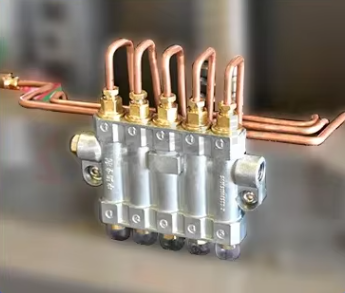

VOLUMETRIC OIL CIRCUIT



Pure copper large-bore oil pipe,regular and quantitative oil injection reduce frictional resistance and improve motion accuracy.
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price

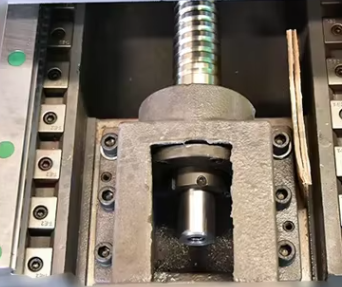

LEAD SCREW RAIL



Taiwan/Japan brand linear guide,linear guide width 45mm,high precision,high load.
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price

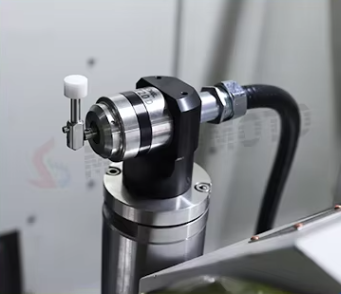

TOOL SETTING INSTRUMENT(OPTIONAL)



Mature motion mechanism design;Used for various tool damage detection and rapid measurement of tool length and diameter.
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price

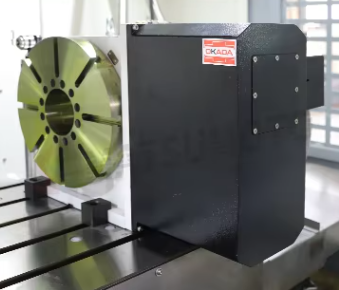

FOUR-AXIS ROTARY TABLE(OPTIONAL)


The rotary table is vertically fixed on the workbench.The workpiece is clamped and fixed on the rotary table through the chuck and tailstock to realize 360° automatic indexing function at any angle.
VMC1160 Factory Direct CNC Vertical Machining Center With Low Price

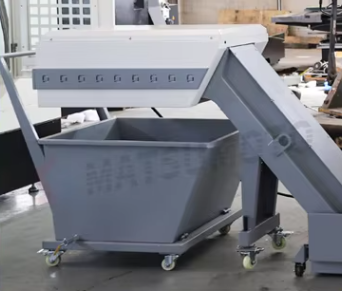

CHAIN CHIP REMOVAL MACHINE(OPTIONAL)


Convenient chip removal,improve efficiency.
