Specifications
Spindle Taper  :
BT30
Model :
T6 Drilling and Tapping Center
MOQ :
1
Certification :
CE
Max. Table Load :
300kg
Table Size  :
700*420mm
Brand Name :
Matsumoto
Payment Terms :
T/T
Model Number :
T6
Spindle Speed  :
20000rpm
Delivery Time :
20 working days
Packaging Details :
plywood case
Tool Change Time (T-T) :
0.8s
Place of Origin :
China
Price :
12800-15500
Description

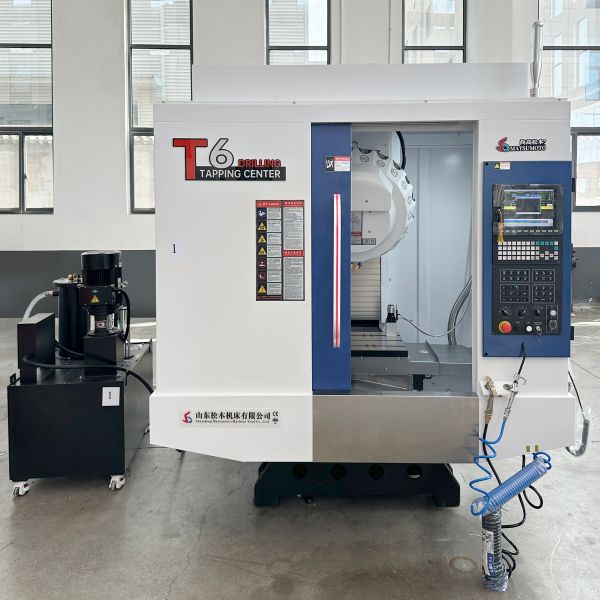

T6 Automatic CNC Drilling and Tapping Machining Center 3 Axis Vertical Cnc Machining Center


Description:

The T6 drilling tapping center is a high‑speed, high‑precision vertical CNC machine designed for drilling, tapping, and light milling, especially suited for mass production of small‑to‑medium parts in 3C, automotive, electronics, and precision hardware industries.


Item Unit T6
Table Size mm 700×420
T-slot (Size×Pitch×Qty) mm 14×120×3
Max. Table Load kg 300
X-axis Travel mm 600
Y-axis Travel mm 400
Z-axis Travel mm 330
Spindle Nose to Table mm 130–460
Spindle Center to Column mm 450
Spindle Taper / BT30
Spindle Speed rpm 20000 (Direct Drive)
Cutting Feed Rate m/min 1–15
Rapid Traverse Rate m/min 48
Positioning Accuracy (JIS 6336-2) mm ±0.005
Repeatability Accuracy mm ±0.005
Spindle Servo Motor / D5.5
Rated Power / Max. Power (30 min) KW 5.5
Rated Torque N.m 22
Tool Taper / BT30
Max. Tool Diameter mm 80
Max. Tool Length mm 200
Max. Tool Weight kg 4
Tool Change Time (T-T) sec 0.8
Net Weight kg 2500
Overall Dimensions (L×W×H) mm 1750×2150×2100
