VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal
Specifications
Brand Name :
Matsumoto
Model Number :
VMC1160
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
20800-28500
Delivery Time :
30 working days
Packaging Details :
plywood case
Table size :
1200*600mm
X axis travel :
1100mm
Y axis travel :
600mm
Z axis travel :
600mm
Max. spindle speed :
8000rpm
spindle motor power :
11kw
Description

VMC1160 Heavy Duty CNC Vertical Machining Center 3 Axis CNC Milling Machine for Metal


Description:

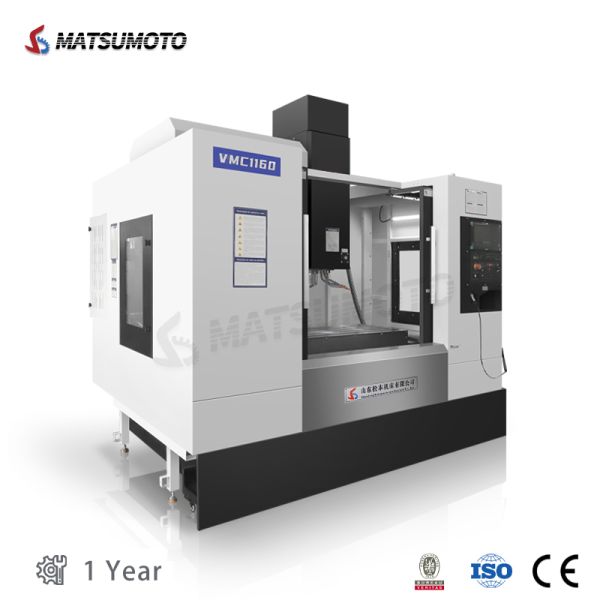

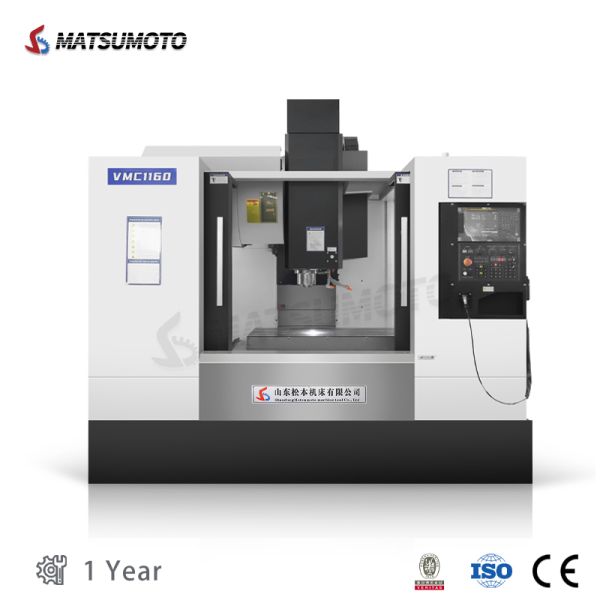

The VMC1160 is a high-performance vertical CNC machining center, designed for precision and versatility in medium to large-scale metalworking.


Specifications Units VMC1160

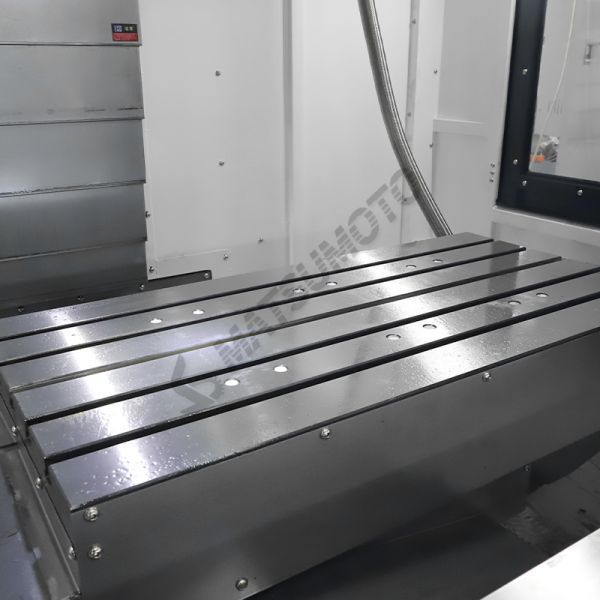

Table size mm 1200*600
Max.table load kg 800
T slot / 5-18*100
X axis travel mm 1100
Y axis travel mm 600
Z axis travel mm 600
Distance between spindle center and column surface mm 600
Distance between spindle nose and table surface mm 120-720
Max. spindle speed r/min 8000(10000 optional)
Spindle taper - BT40
Spindle drive type - Belt drive
spindle motor power kw 11
X/Y/Z axis rapid traverse m/min 36/36/24
X/Y/Z guide rail form / 3 axis linear guide rail

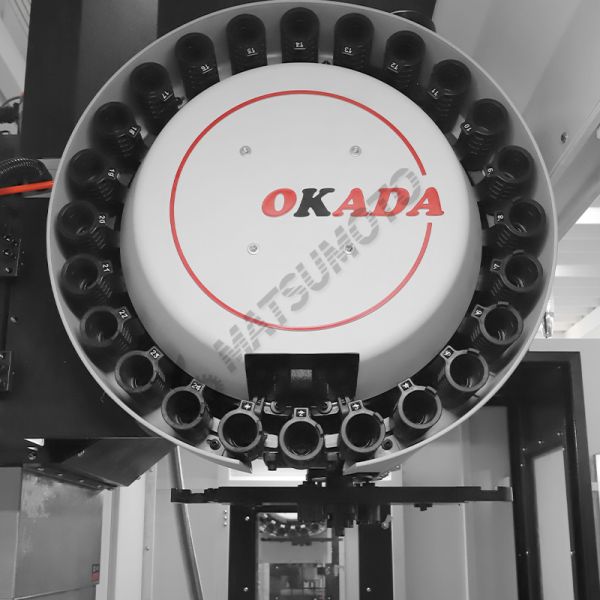

Automatic tools changer - 24 arm ATC
Max.tool weight kg 7
Tools Diameter/Length mm 78/300
Tool change time s 7/2.5
Position accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
Machine dimension mm 3400*2480*2960
Machine weight kg 7300


Applications:


Ideal for complex, multi-operation parts in diverse industries:

  • Mold & Die: Injection molds, die-casting dies, forging dies.
  • Automotive: Engine blocks, cylinder heads, transmission parts.
  • Aerospace: Structural components, turbine parts, high-precision fittings.
  • General Engineering: Housings, plates, brackets, jigs & fixtures.
  • Energy & Hydraulics: Pump bodies, valve parts, heavy machinery components.
  • Prototyping & Batch Production: Single prototypes to medium-volume production.

Materials: Steel, stainless steel, cast iron, aluminum, titanium, copper, brass.
