Specifications
T-slot (Size×Pitch×Qty)  :
14×120×3mm
Y-axis Travel  :
400mm
Price :
$15000-18000
Z-axis Travel  :
330mm
Table Size  :
800×420mm
Model Number :
T7
Payment Terms :
T/T
Max. Table Load :
300kg
Delivery Time :
15 working days
X-axis Travel  :
700mm
Packaging Details :
plywood case
Certification :
CE
Brand Name :
Matsumoto
Place of Origin :
China
MOQ :
1
Description

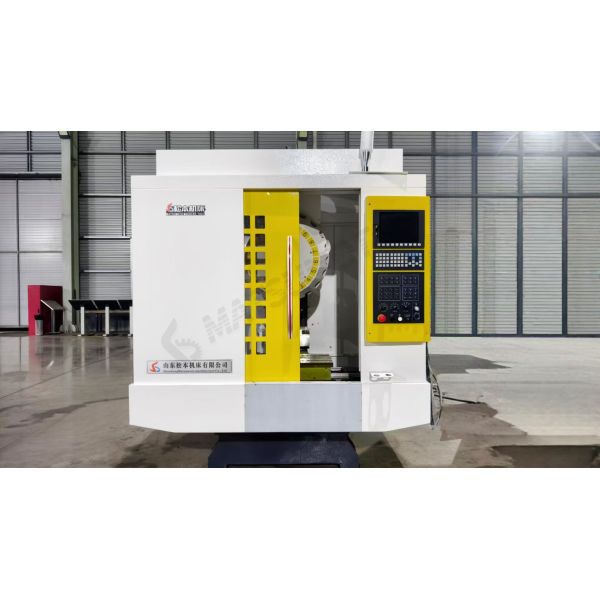

T7 Vertical CNC Drilling and Tapping Center for Metal CNC Machining Center


Description:

This CNC drilling and tapping center is a high-speed, high-precision machining machine mainly used for drilling, tapping, chamfering, and light milling operations. It features a high-speed spindle, fast tool change, and high positioning accuracy, suitable for efficient batch processing of plate, shell, and mold parts.

Applications:

  • Drilling, reaming, and tapping on metal parts
  • Processing of automotive parts, 3C products, and hardware components
  • Batch production of parts with multiple holes
  • Chamfering, spot facing, and light milling


Item Unit T7
Table Size mm 800×420
T-slot (Size×Pitch×Qty) mm 14×120×3
Max. Table Load kg 300
X-axis Travel mm 700
Y-axis Travel mm 400
Z-axis Travel mm 330
Spindle Nose to Table mm 130–460
Spindle Center to Column mm 450
Spindle Taper / BT30
Spindle Speed rpm 20000 (Direct Drive)
Cutting Feed Rate m/min 1–15
Rapid Traverse Rate m/min 48
Positioning Accuracy (JIS 6336-2) mm ±0.005
Repeatability Accuracy mm ±0.005
Spindle Servo Motor / D5.5
Rated Power / Max. Power (30 min) KW 5.5
Rated Torque N.m 22
Tool Taper / BT30
Max. Tool Diameter mm 80
Max. Tool Length mm 200
Max. Tool Weight kg 4
Tool Change Time (T-T) sec 1.5
Net Weight kg 2500
Overall Dimensions (L×W×H) mm 1750×2150×2100


Advantages:

  • High-speed spindle and fast tool change for high efficiency
  • High positioning accuracy ensures stable machining quality
  • Compact structure, small footprint, easy operation
  • High rigidity, good stability, and long service life
  • Suitable for mass production, greatly reducing processing time


Machine Details:

T7 Vertical CNC Drilling And Tapping Center High Speed CNC Machining Center

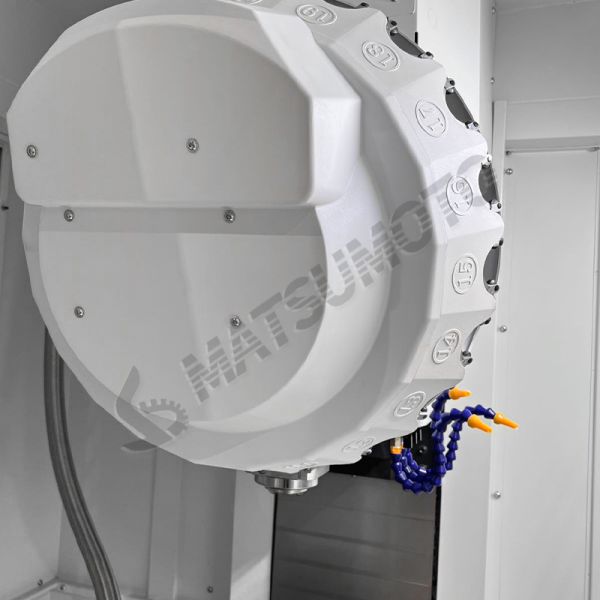

 Tool magazine

Tool changing speed 1.5s
optional 16pcs/21pcs

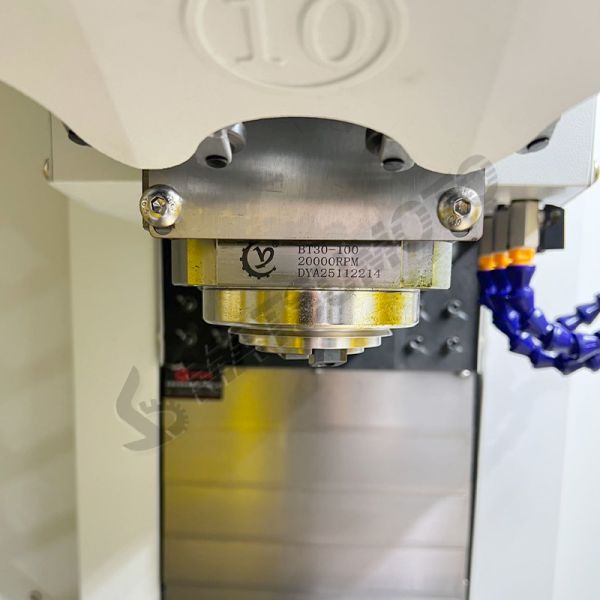

Spindle

BT30 high-speed direct-connected spindle,
spindle speed 20000rpm

T7 Vertical CNC Drilling And Tapping Center High Speed CNC Machining Center

T7 Vertical CNC Drilling And Tapping Center High Speed CNC Machining Center

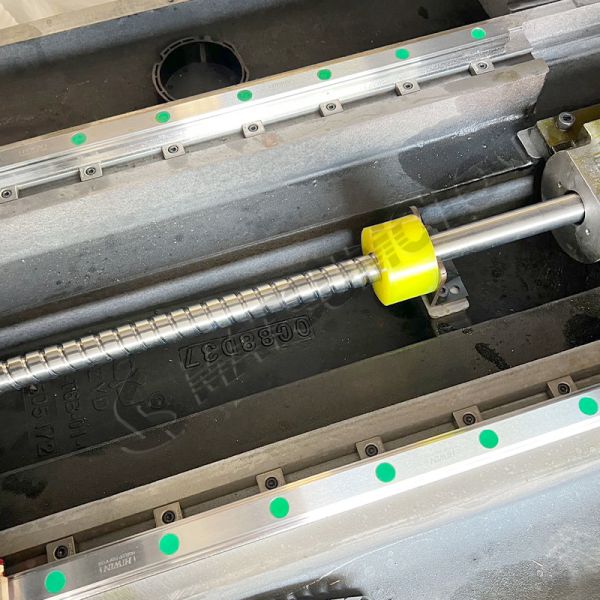

 Ballscrew with servo
Linear Roller Guide Rails

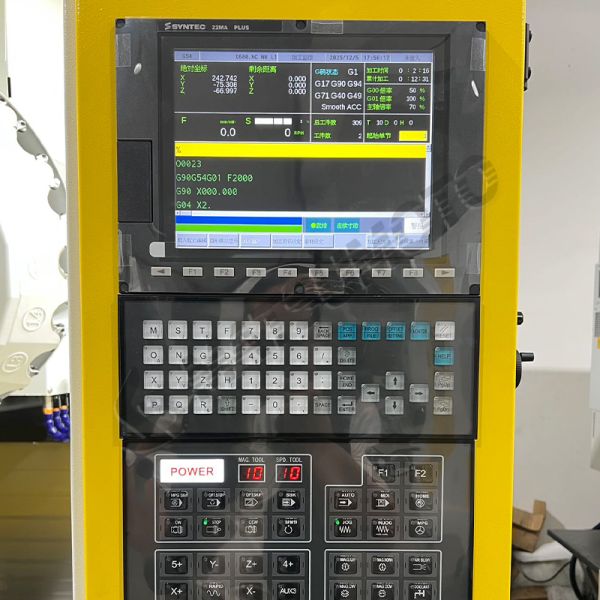

CNC system


Optional GSK, Fanuc, Mitsubishi etc.

T7 Vertical CNC Drilling And Tapping Center High Speed CNC Machining Center

T7 Vertical CNC Drilling And Tapping Center High Speed CNC Machining Center
