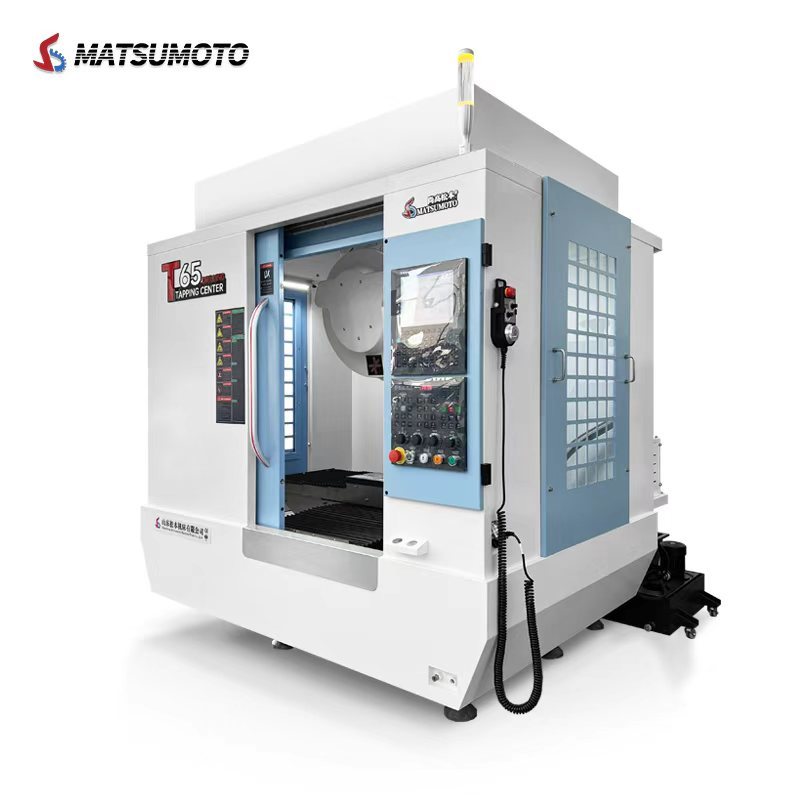

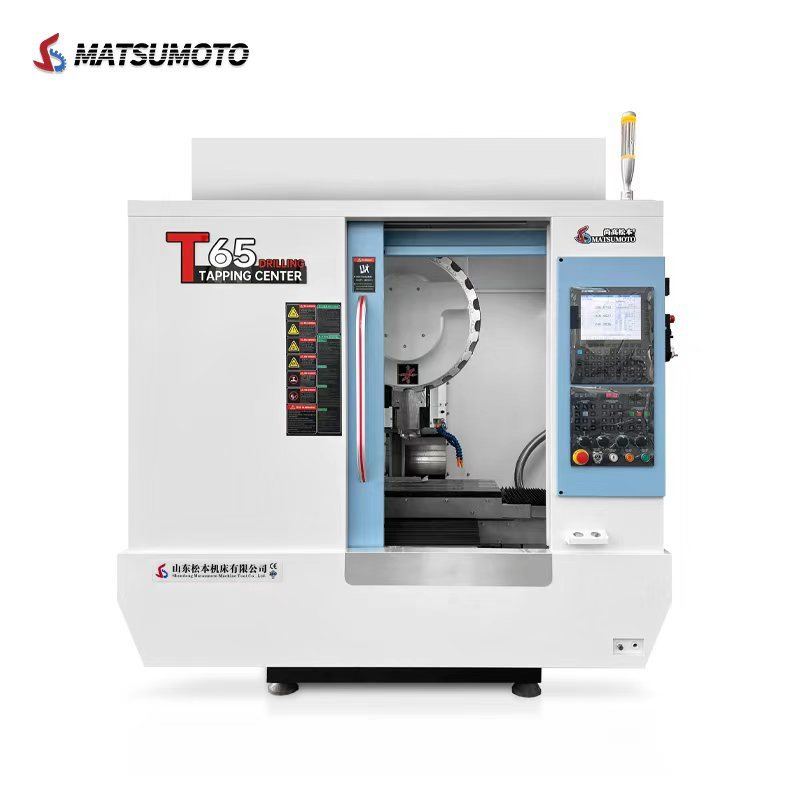

T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components
Specifications
Model Number :
T65
MOQ :
1
Packaging Details :
plywood case
Payment Terms :
T/T
T-slot (Size×Pitch×Qty)  :
14×125×3mm
Price :
13500-19500
Max. Table Load :
300kg
Spindle Taper  :
BT30
Delivery Time :
20 working days
Table Size  :
700*400mm
Certification :
CE
Place of Origin :
China
X/Y/Z axis travel :
600*500*330mm
Brand Name :
Matsumoto
Description

T65 High Speed Drilling Tapping CNC Milling Machine Suitable for Communication Precision Components



✅ High rigidity cast iron structure after aging treatment, low vibration and long-term stable machining precision


✅ BT30 direct drive high-speed spindle, superior rigid tapping, drilling and milling performance

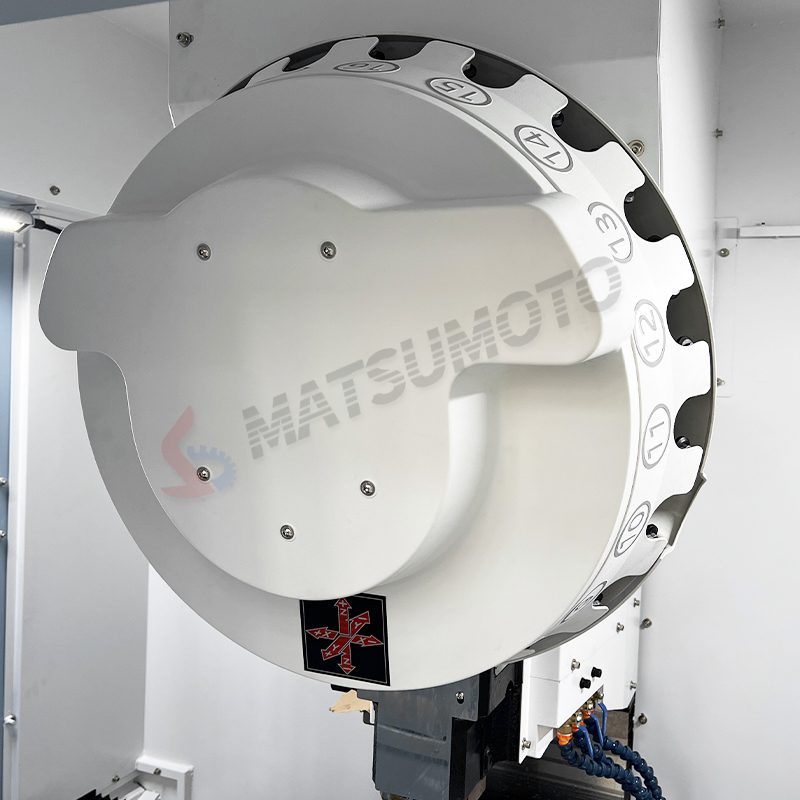

✅ Fast automatic tool changer, shorten tool change time and improve production efficiency


✅ High-speed linear guideways and high-response servo system, fast 3-axis rapid traverse


✅ Optional FANUC, Mitsubishi, Syntec CNC systems, widely used for 3C, automotive and communication hardware


Item Unit T65
Table Size mm 700×470
T-slot (Size×Pitch×Qty) mm 14×125×3
Max. Table Load kg 300
X-axis Travel mm 600
Y-axis Travel mm 500
Z-axis Travel mm 330
Spindle Nose to Table mm 130-460
Spindle Center to Column mm 520
Spindle Taper / BT30
Spindle Speed rpm 20000 (Direct Drive)
Cutting Feed Rate m/min 1–15
Rapid Traverse Rate m/min 48
Positioning Accuracy (JIS 6336-2) mm ±0.005
Repeatability Accuracy mm ±0.005
Spindle Servo Motor / D5.5
Rated Power / Max. Power (30 min) KW 5.5
Rated Torque N.m 22
Tool Taper / BT30
Max. Tool Diameter mm 80
Max. Tool Length mm 200
Max. Tool Weight kg 4
Tool Change Time (T-T) sec 1.5
Net Weight kg 3500
Overall Dimensions (L×W×H) mm 1750×2150×2100
