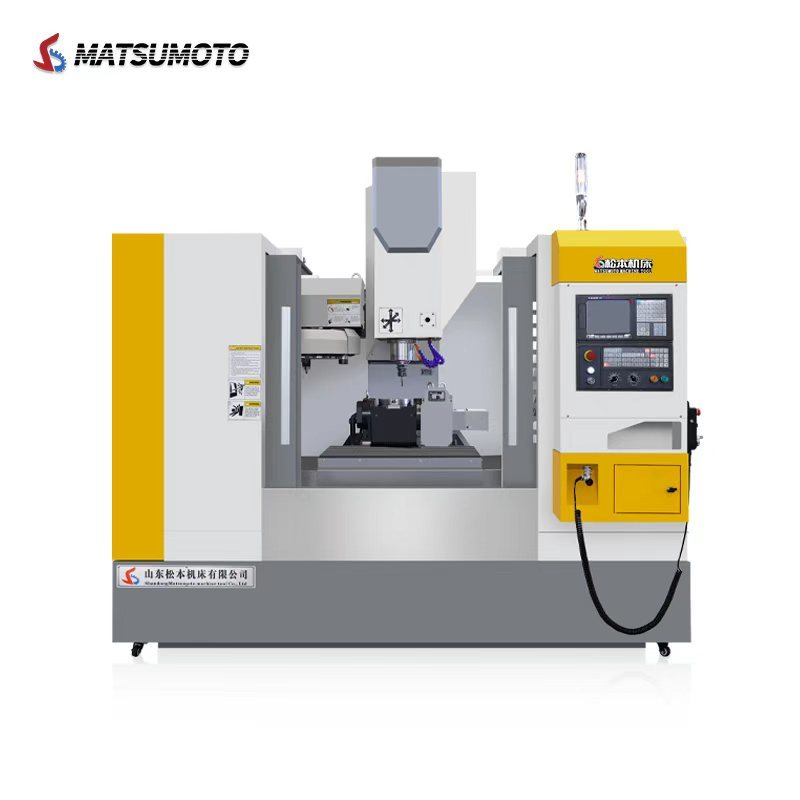

5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center
Specifications
Model Number :
VMC650
Price :
15500-18500
Max. spindle speed :
8000rpm
Certification :
CE
MOQ :
1
Packaging Details :
plywood case
Payment Terms :
T/T
X/Y/Z axis travel :
600/500/500mm
Delivery Time :
20 working days
Max. table load :
400kg
Place of Origin :
China
Table size(L*W) :
800*500mm
Brand Name :
Matsumoto
Description

5 aixs 8000 RMP Spindle Small Fanuc System CNC Machining Center VMC650 Cnc Vertical Machining Center

Description:

VMC650 5-axis vertical CNC machining center adopts high-grade cast iron frame with finite element optimized rib layout and stress relief annealing, effectively minimizing thermal deformation and vibration during heavy cutting. It is configured with X/Y/Z three linear axes plus A/C rotary axes to realize 5-axis simultaneous linkage. Equipped with BT40 high-speed spindle, roller linear guides and precision ball screws, the machine achieves stable high-precision milling, drilling, boring, reaming and tapping in one single clamping. Multiple mainstream CNC systems (FANUC, GSK, Mitsubishi, SYNTEC) are optional, matched with automatic tool changer to improve continuous production efficiency. It supports complex curved surface and multi-angle inclined surface machining, eliminating repeated workpiece clamping errors.

PROJECT UNIT VMC650
Table size(L*W) mm 800*500
Max. table load kg 400
X/Y/Z axis travel mm 600/500/500
Distance from spindle center to column guide surface mm 550
Distance from spindle nose to worktable mm 120-620
Max. feed speed(X/Y/Z) Mm/min 0-8000
X/Y/Z Max. fast moving speed M/min 24/24/20
Max. spindle speed R/min 8000
Spindle taper / BT40(120)
Spindle power kw 5.5
X/Y/Z servo motor kw 2/2/3
Guide rail form X/Y/Z / Hard rail/Line rail
T slot(width*number*pitch) mm 18*3*125
Positioning accuracy mm ±0.05
Repeat positioning accuracy mm ±0.03
Tool magazine form / Bamboo hat/Disk
Tool magazine capacity / 16/24
Max. tool weight kg 7
Max. tool diameter mm 100
Total electrical capacity KVA 10
Weight kg 4000
Dimension(L*W*H) mm 2400*2000*2550
