VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting
Specifications
Delivery Time :
20 working days
X/Y/Z axis travel :
1100*600*600mm
Place of Origin :
China
T slot :
5-18*100
Payment Terms :
T/T
Table size :
1200*600mm
Brand Name :
Matsumoto
Certification :
CE
Price :
20100-25500
Max.table load :
800kg
MOQ :
1
Packaging Details :
plywood case
Model Number :
VMC1160
Description

VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting


Product Usage

VMC is suilable for the mechanical processing and meld making. And it can adopt to the processing regwirement irom rough machining lo finish machining. H con also finish many worlang prccedures like milling, drilling, topping, boring etc.

Product features

1.High quality resin sand
2.Taiwan spindle
3.Taiwan ball screw and locking nut
4.Taiwan pressure cyinder
5.Japan NSK bearing
6.Germany R+W coupling
7.Automatic lubrication system


Specifications Units VMC1160
Table size mm 1200*600
Max.table load kg 800
T slot / 5-18*100
X axis travel mm 1100
Y axis travel mm 600
Z axis travel mm 600
Distance between spindle center and column surface mm 600
Distance between spindle nose and table surface mm 120-720
Max. spindle speed r/min 8000(10000 optional)
Spindle taper - BT40
Spindle drive type - Belt drive
spindle motor power kw 11
X/Y/Z axis rapid traverse m/min 36/36/24
X/Y/Z guide rail form / 3 axis linear guide rail
Automatic tools changer - 24 arm ATC
Max.tool weight kg 7
Tools Diameter/Length mm 78/300
Tool change time s 7/2.5
Position accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
Machine dimension mm 3400*2480*2960
Machine weight kg 7300


  • Details Images

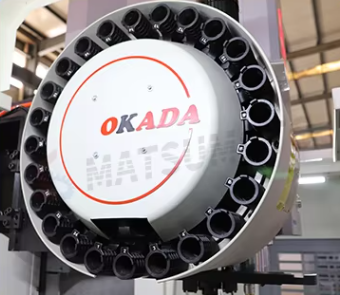

VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting TAIWAN BRAND MAGAZINE TOOL

OKADA and AIMACH are available;24 disk type magazine tool,Tool changing speed 1-2 seconds.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

TAIWAN BRAND SPINDLE



The standard configuration is 8000rpm,and the options are 10000 rpm and 12000 rpm;High speed spindle,stable and efficient.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

CNC CONTROL SYSTEM



KND,FANUC,MITSUBISHI,GSK AND other operating systems can be selected according to customer requirements.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

WORKBENCH



Workbench Ultra Audio Quench;Increase rigidity and stiffness Good wear resistance and long service life.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

VOLUMETRIC OIL CIRCUIT



Pure copper large-bore oil pipe,regular and quantitative oil injection reduce frictional resistance and improve motion accuracy.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

LEAD SCREW RAIL



Taiwan/Japan brand linear guide,linear guide width 45mm,high precision,high load.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

TOOL SETTING INSTRUMENT(OPTIONAL)



Mature motion mechanism design;Used for various tool damage detection and rapid measurement of tool length and diameter.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

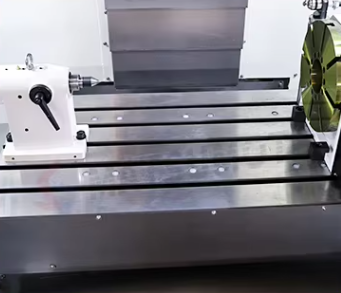

FOUR-AXIS ROTARY TABLE(OPTIONAL)


The rotary table is vertically fixed on the workbench.The workpiece is clamped and fixed on the rotary table through the chuck and tailstock to realize 360° automatic indexing function at any angle.
VMC1160 BT40 Spindle High-Speed Precision Heavy Duty CNC Vertical Machining Center for Metal Cutting

CHAIN CHIP REMOVAL MACHINE(OPTIONAL)


Convenient chip removal,improve efficiency.
