Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Factory Direct Sale 4 Axis CNC VMC855 Vertical Machining Center for Machine Tools Mold Processing
Specifications
Delivery Time :
20 working days
Model Number :
VMC855
Max.table load :
800kg
Certification :
CE
Table size :
1000*550mm
MOQ :
1
Packaging Details :
plywood case
Spindle taper :
BT40
Payment Terms :
T/T
Price :
18100-23500
Place of Origin :
China
Max. spindle speed :
8000rpm
Brand Name :
Matsumoto
X/Y/Z axis travel :
800*550*550mm
Description

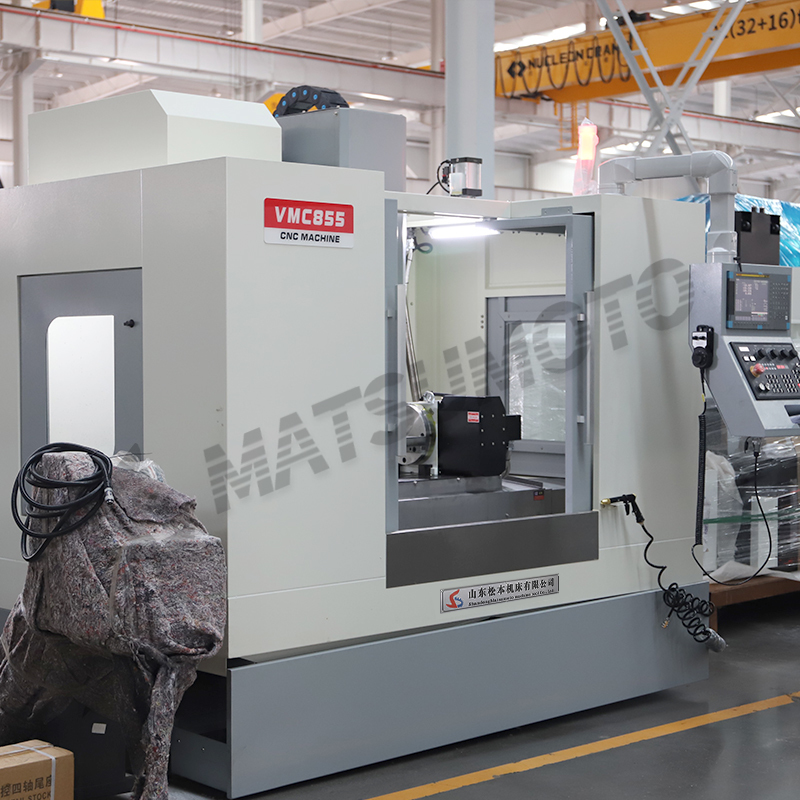

Factory Direct Sale 4 Axis VMC855 CNC Vertical Machining Center for Machine Tools Mold Processing


Description:


VMC855 4-axis vertical CNC machining center adopts high-strength integral cast iron structure with rational rib layout and stress relief aging treatment, ensuring stable long-term machining accuracy.

Standard travel: X-axis 800mm, Y-axis 550mm, Z-axis 550mm. Equipped with precision linear guides and high-precision ball screws for rapid feeding and reliable dynamic performance. It is fitted with BT40 spindle, standard speed 8000rpm, optional 10000/12000rpm. Matched with 24-tool arm-type automatic tool changer.

Supported control systems: FANUC, Mitsubishi, GSK and other mainstream brands. Installed with 4th-axis rotary table to realize 4-axis linkage and multi-angle indexing processing.



Specifications Unit VMC855
Table size mm 1000*550
Max.table load kg 800
T slot
5-18*90
X axis travel mm 800
Y axis travel mm 550
Z axis travel mm 550
Distance between spindle center and column surface mm 550
Distance between spindle center and column surface mm 120-670
Max. spindle speed r/min 8000(10000 optional)
Spindle taper / BT40
Spindle drive type / Belt drive
spindle motor power kw 7.5
X/Y/Z axis rapid traverse m/min 36/36/24
X/Y/Z guide rail form / 3 axis linear guide rail
Automatic tools changer
24 arm ATC
Max.tool weight kg 7
Tools Diameter/Length mm 78/300
Tool change time s 7/2.5
Position accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
Machine dimension mm 2750*2300*2600
Machine weight kg 5800
