Specifications
Model Number :
T7
MOQ :
1
Packaging Details :
plywood case
Payment Terms :
T/T
Spindle Nose to Table  :
130–460mm
Price :
15500-20500
Spindle Taper  :
BT30
T-slot (Size×Pitch×Qty)  :
14×120×3mm
Delivery Time :
20 working days
Table Size  :
800*420mm
Certification :
CE
Place of Origin :
China
X/Y/Z axis travel :
700*400*330mm
Brand Name :
Matsumoto
Description

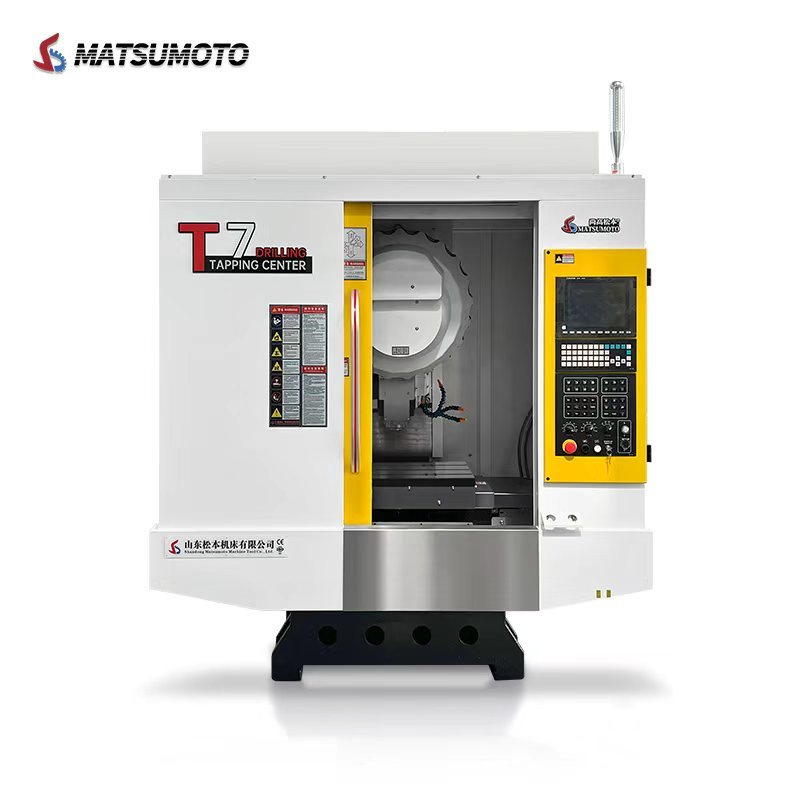

T7 Fanuc Controlled 3 Axis BT30 High Speed CNC Drilling Tapping Center Vertical Drilling and Tapping Machine


Description:


T7 drilling tapping center is a high-speed vertical CNC drill & tap machining center specially developed for mass precision machining. The whole machine adopts high-grade Meehanite cast iron with reinforced rib structure, featuring excellent rigidity, vibration damping performance and long-term stability under continuous high-speed operation.

Equipped with BT30 direct-drive spindle, maximum spindle speed reaches 20,000rpm (24,000rpm optional). Three axes adopt high-precision linear guideways and C3 grade pre-stretched ball screws, supporting rapid traverse up to 48m/min, greatly shortening idle moving time. It is fitted with a rotary servo tool magazine (16/21 tools optional), realizing ultra-fast tool change to cut cycle time significantly.

The machine supports rigid tapping, precision drilling, chamfering, light milling and contour machining in one clamping. With outstanding positioning accuracy and repeatability, it ensures consistent thread quality and dimensional precision for batch workpieces. Multiple CNC systems including Fanuc, Mitsubishi, Syntec are available for selection to meet different production demands.


Item Unit T7
Table Size mm 800×420
T-slot (Size×Pitch×Qty) mm 14×120×3
Max. Table Load kg 300
X-axis Travel mm 700
Y-axis Travel mm 400
Z-axis Travel mm 330
Spindle Nose to Table mm 130–460
Spindle Center to Column mm 450
Spindle Taper / BT30
Spindle Speed rpm 20000 (Direct Drive)
Cutting Feed Rate m/min 1–15
Rapid Traverse Rate m/min 48
Positioning Accuracy (JIS 6336-2) mm ±0.005
Repeatability Accuracy mm ±0.005
Spindle Servo Motor / D5.5
Rated Power / Max. Power (30 min) KW 5.5
Rated Torque N.m 22
Tool Taper / BT30
Max. Tool Diameter mm 80
Max. Tool Length mm 200
Max. Tool Weight kg 4
Tool Change Time (T-T) sec 1.5
Net Weight kg 2500
Overall Dimensions (L×W×H) mm 1750×2150×2100
