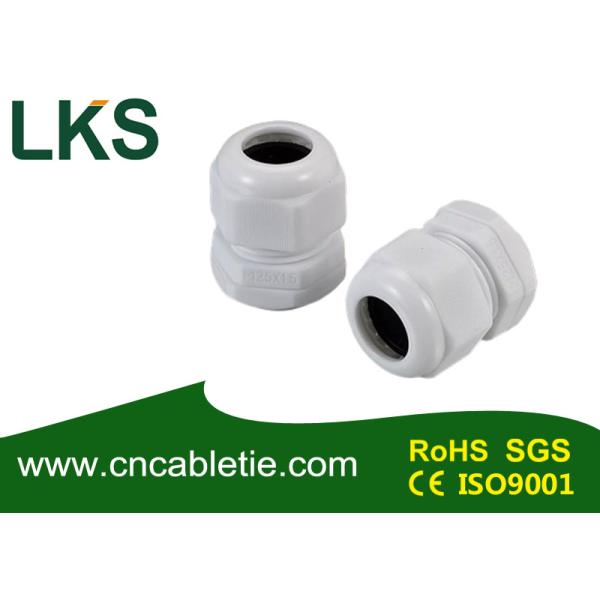

Nylon Waterproof Cable Gland Long Thread METRIC Type
Nylon Waterproof Cable Gland Long Thread METRIC Type
Nylon Waterproof Cable Gland Long Thread METRIC Type
Nylon Waterproof Cable Gland Long Thread METRIC Type
Specifications
Brand Name :
LKS
Certification :
RoHS,SGS,CE,ISO9001
Place of Origin :
China
MOQ :
10000pcs
Payment Terms :
L/C, T/T
Supply Ability :
100000pcs per day
Delivery Time :
5days
Packaging Details :
polybag
Description

Nylon Waterproof Cable Gland Long Thread METRIC TypeNylon Waterproof Cable Gland Long Thread METRIC Type

Technical Information:

  • Model: METRIC Type
  • Material: PA6/PP.
  • Size: M12 to M66.
  • Color:White/Grey/Black/Red or OEM Color.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:-40℃ to 100℃,short time to 120℃.
  • Packing:100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
  • Port: Shanghai/Ningbo.

Description:

  • Thread: Metric
  • Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber(NBR)or EPDM.
  • Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part)
  • Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃.
  • Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents.
  • Color:Light grey(RAL7035),black(RAL9005),other color can be customized according to request.

Model Cable Range(mm) Thread O.D AG()mm Thread Length GL(mm) Spanner Size(mm)
M12×1.5 3-6.5 12 8 18/17
M12×1.5 2月5日 12 8 18/17
M12×1.5 4月8日 12 8 18/19
M12×1.5 2月6日 12 8 18/19
M16×1.5 4月8日 16 8 22/19
M16×1.5 2月6日 16 8 22/19
M16×1.5 5月10日 16 9 22/22
M16×1.5 3月7日 16 9 22/22
M18×1.5 5月10日 18 9 24/22
M18×1.5 3月7日 18 9 24/22
M20×1.5 6月12日 20 10 27/24
M20×1.5 5月9日 20 10 27/24
M20×1.5 10月14日 20 10 27/27
M20×1.5 8月12日 20 10 27/27
M22×1.5 10月14日 22 10 30/27
M22×1.5 8月12日 22 10 30/27
M24×1.5 12月16日 24 10 30/27
M24×1.5 10月14日 24 10 30/27
M25×1.5 13-18 25 10 33/33
M25×1.5 9月16日 25 10 33/33
M27×1.5 13-18 27 10 36/33
M27×1.5 9月16日 27 10 36/33
M30×1.5 16-20 30 11 37/36
M30×1.5 13-18 30 11 37/36
M32×1.5 16-20 32 11 40/35
M32×1.5 13-18 32 11 40/35
M32×1.5 18-25 32 13 40/42
M32×1.5 13-20 32 13 40/42
M36×1.5 18-25 36 12 46/42
M36×1.5 13-20 36 12 46/42
M40×1.5 22-32 40 15 50/52
M40×1.5 20-26 40 15 50/52
M50×1.5 32-40 50 15 62/60
M50×1.5 25-31 50 15 62/60
M63×1.5 37-44 63 15 75/68
M63×1.5 29-35 63 15 75/68
