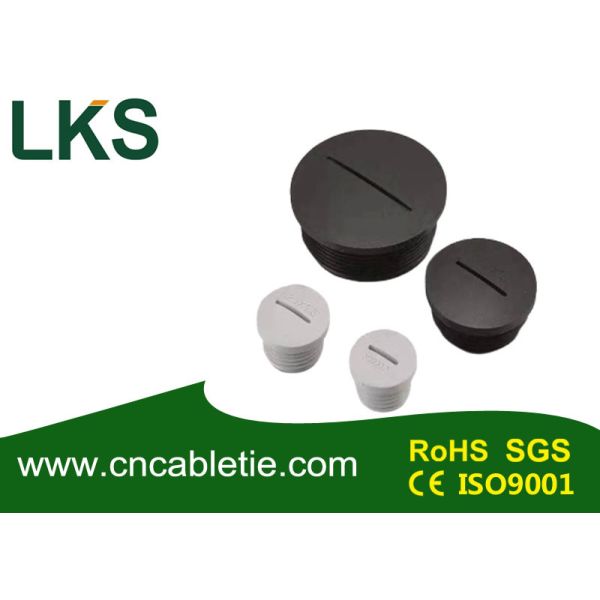

Nylon Round Waterproof Screw Plug with IP68 Rating and Metric Thread for Electrical Cable Entry
Nylon Round Waterproof Screw Plug with IP68 Rating and Metric Thread for Electrical Cable Entry
Specifications
Operating Voltage :
600V
Material :
nylon
Cable Diameter Range :
6mm to 12mm
Brand Name :
LKS
Certification :
RoHS,SGS,CE,ISO9001
Place of Origin :
China
MOQ :
10000pcs
Payment Terms :
L/C,T/T
Supply Ability :
100% paid before shipment
Delivery Time :
5days
Packaging Details :
polybag
Working Temperature :
-40℃ to 100℃
Ingress Protection :
IP68
Thread Type :
Metric
Description
Nylon Round Waterproof Screw Plug
Technical Specifications
  • Model: PG/METRIC Type
  • Material: PA66/PP (UL certified)
  • Size Range: PG7-48, M12-63
  • Standard Colors: Grey (RAL7035), Black (RAL9005)
  • Custom colors available upon request
  • Protection Level: IP68 (within fastening range)
  • Weather Strip: NBR, EPDM
  • Working Temperature: -40℃ to 100℃
  • Packing Options: 100pcs/bag, 50pcs/bag, 20pcs/bag
  • Port: Shanghai/Ningbo
Product Features
  • Made of UL approved nylon PA66 (fire rating UL94V-2)
  • O-ring seal used in tightening part for waterproofing
  • IP68 protection level within fastening range
  • Suitable for extreme temperature environments
Dimensional Specifications
Model Cable Range (mm) Thread O.D (mm) Thread Length (mm) Spanner Size (mm)
PG712.58.512.515
PG915.291319
PG1118.691322
PG13.520.491325
PG1622.51014.527
PG192410.515.529
PG2128.310.515.533
PG2530111635
PG2937121644
PG364713.51855
PG425413.51862
PG4859.314.51968
M12X1.5128.512.515
M16X1.51691319
M18X1.51891322
M20X1.52091325
M22X1.5221014.527
M24X1.52410.515.529
M25X1.52510.515.530
M27X1.5271115.533
M30X1.530111635
M32X1.532111638
M40X1.54011.51646
M50X1.55013.51856
M63X1.563141968
Note: All specifications are subject to manufacturing tolerances. Custom configurations available upon request.
