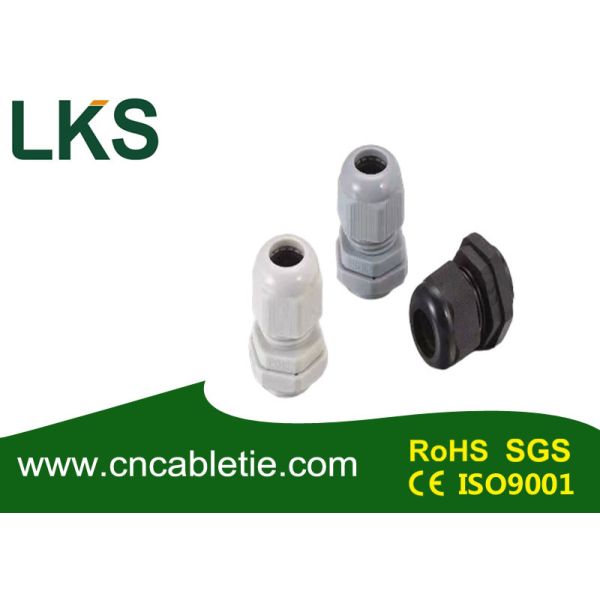

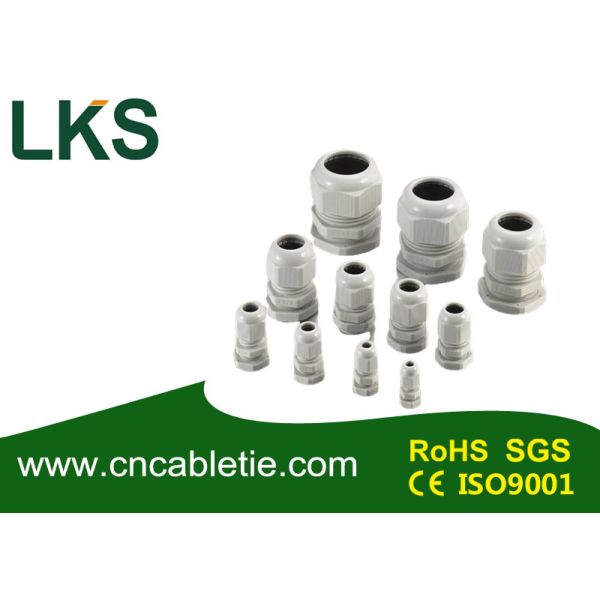

Anti-vibration NBR Seal Gasket Cable Gland with IP68 Protection and Waterproof Cordgrips
Anti-vibration NBR Seal Gasket Cable Gland with IP68 Protection and Waterproof Cordgrips
Anti-vibration NBR Seal Gasket Cable Gland with IP68 Protection and Waterproof Cordgrips
Anti-vibration NBR Seal Gasket Cable Gland with IP68 Protection and Waterproof Cordgrips
Specifications
Protection Level :
IP68
Material :
PA66/PP, NBR, EPDM
Size Range :
PG7 to PG63
Cable Range :
3.6-6.5mm to 42-50mm
Working Temperature :
-40℃ to 100℃ (static), -20℃ to 80℃ (dynamic)
Thread Type :
PG, Metric, NPT
Brand Name :
LKS
Certification :
RoHS,SGS,CE,ISO9001
Place of Origin :
China
MOQ :
10000pcs
Payment Terms :
L/C,T/T
Supply Ability :
100000pcs per day
Delivery Time :
5days
Packaging Details :
polybag
Description
Technical Information:
  • Model:PG type
  • Material:PA66/PP.
  • Size:PG7 to PG63.
  • Color: White/Grey/Black/Red or OEM Color.
  • Protection Level: IP68.
  • Weather Strip: NBR, EPDM.
  • Working temperature:Static -40℃ to 100℃,dynamic-20℃ to 80℃, short time to 120℃.
  • Packing: 100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
  • Port: Shanghai/Ningbo.
  • Description:
  • Thread:PG.
  • Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber (NBR)or EPDM.
  • Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part).
  • Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃.
  • Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents.
  • Color:Light grey(RAL7035),black(RAL9005),other color can be customized according to request.
Model Cable Range(mm) Thread O.D AG()mm Thread Length GL(mm) Spanner Size(mm)
PG7 3.6-6.5 12.5 8 18/17
PG9 4.0 - 8.0 15.2 8 22/19
PG11 5.0 - 10.0 18.6 9 24/22
PG13.5 6.0 - 12.0 20.4 10 27/24
PG16 10.0 - 14.0 22.5 10 30/27
PG21 13-18 28.3 10 36/33
PG25 16-21 30 11 37/36
PG25 13-18 30 11 37/36
PG29 18-25 37 12 46/42
PG29 13-20 37 12 46/42
PG36 22-32 47 14 58/52
PG36 20-26 47 14 58/52
PG42 32-40 54 14 64/60
PG42 25-31 54 14 64/60
PG48 37-44 59.3 14.5 70/64
PG48 29-35 59.3 14.5 70/64
PG63 42-50 71 28 82/77
PG63 32-40 71 28 82/77
