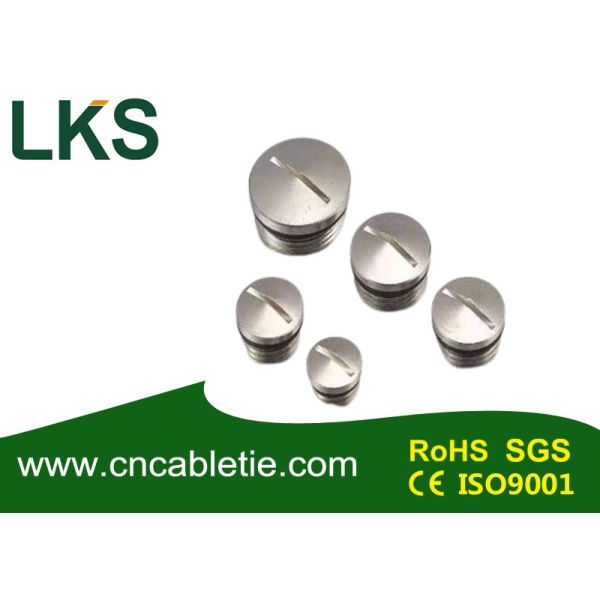

Waterproof Nickel Plated Brass Screw Plug with IP68 Protection for PG/METRIC Threads
Waterproof Nickel Plated Brass Screw Plug with IP68 Protection for PG/METRIC Threads
Specifications
Size :
PG7-63, M10-63
Material :
Brass coated by nickel
Thread O.D :
6-11 mm
MOQ :
10000pcs
Payment Terms :
L/C,T/T
Supply Ability :
100000pcs per day
Delivery Time :
5days
Packaging Details :
polybag
Brand Name :
LKS
Certification :
RoHS,SGS,CE,ISO9001
Place of Origin :
China
Thread Length :
9-19 mm
Protection Level :
IP68
Working temperature :
-40℃ to 100℃
Description
Brass Waterproof Screw Plug PG/METRIC Type (Round or Hexagon)
Technical Specifications
  • Model: PG/METRIC Type (Round or Hexagon)
  • Material: Brass coated by nickel
  • Size: PG7-63, M10-63
  • Color: Metallic Color
  • Protection Level: IP68
  • Weather Strip: NBR, EPDM
  • Working Temperature: -40℃ to 100℃
  • Packing: 100pcs/bag, 50pcs/bag, 20pcs/bag
  • Port: Shanghai/Ningbo
Product Features
  • Thread: PG, Metric
  • Nickel plated brass construction
  • IP68 protection rating (within fastening range, O-ring used in tightening part)
  • Temperature range: -40℃ to 100℃ in static state
Detailed Specifications
Model Cable Range (mm) Thread O.D AG (mm) Thread Length GL (mm) Spanner Size (mm)
PG7 12.5 6 9 14
PG9 15.2 7 10.5 17
PG11 18.6 7 10.5 20
PG13.5 20.4 7.5 11 22
PG16 22.5 7.5 11.5 24
PG19 24 8 11.5 26
PG21 28.3 8 12 30
PG25 30 9 12.5 32
PG29 37 9 12.5 40
PG36 47 9 16 50
PG42 54 10 17 57
PG48 59.3 11 18 64
M12X1.5 12 6 9 14
M16X1.5 16 7 10.5 17
M18X1.5 18 7 10.5 20
M20X1.5 20 7.5 11 22
M22X1.5 22 7.5 11.5 24
M24X1.5 24 8 11.5 26
M25X1.5 25 8 12 27
M27X1.5 27 8 12 30
M30X1.5 30 9 12.5 32
M32X1.5 32 9 13 34
M40X1.5 40 9 14 42
M50X1.5 50 10 17 52
M63X1.5 63 11 19 68
